Produktbeskrivning

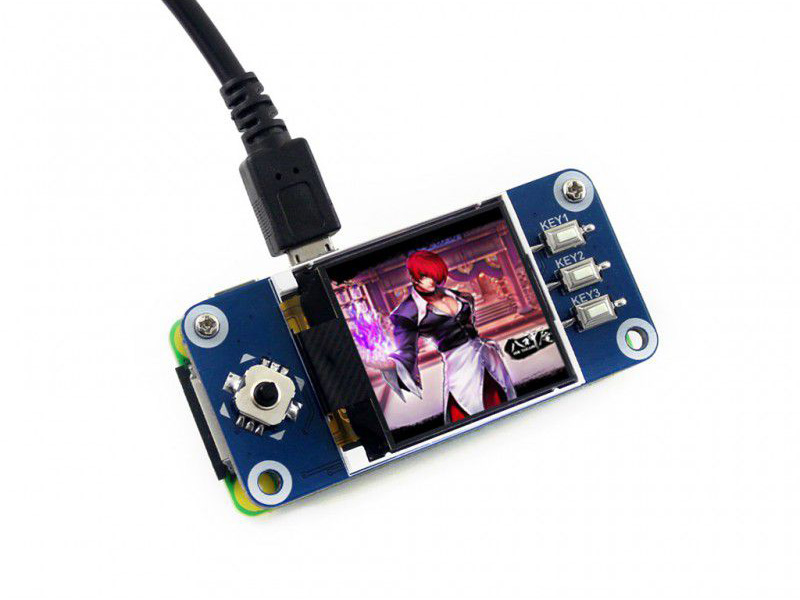

This is a LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128x128 pixels, with embedded controller, communicating via SPI interface. It also comes with three push button and a joystick, a good option as user interface panel for your Raspberry Pi Zero :)
Features:

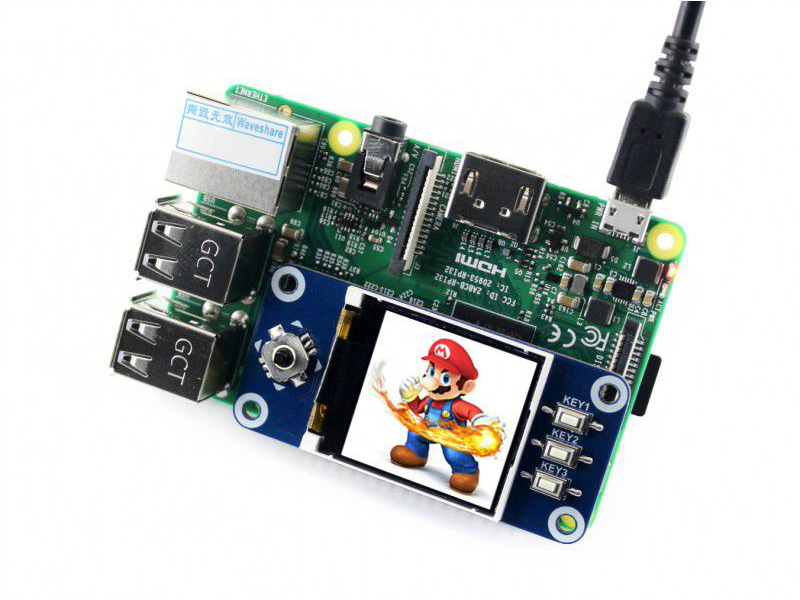

Stack perfectly on Raspberry Pi with 40-pin GPIO, compatible with Raspberry Pi 3B/3B+/A+/Zero/Zero W/Zero WH
1 x joystick (5-position), 3 x pushbuttons, perfect for user input.
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications:
Driver: ST7735S, for display
Interface: SPI
Display color: RGB, 65K color
Resolution: 128 x 128
Backlight: LED
Operating voltage: 3.3V, from Raspberry Pi GPIO
Packing List:
1 x 1.44inch LCD display HAT board
2 x 8mm spacer (2.00mm diameter) with screws and nuts
Features:
Stack perfectly on Raspberry Pi with 40-pin GPIO, compatible with Raspberry Pi 3B/3B+/A+/Zero/Zero W/Zero WH
1 x joystick (5-position), 3 x pushbuttons, perfect for user input.
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications:
Driver: ST7735S, for display
Interface: SPI
Display color: RGB, 65K color
Resolution: 128 x 128
Backlight: LED
Operating voltage: 3.3V, from Raspberry Pi GPIO
Packing List:
1 x 1.44inch LCD display HAT board
2 x 8mm spacer (2.00mm diameter) with screws and nuts
