DABiC-5 Latched Sink Driver
The A6800 latched-input BiMOS IC merges high-current, high-voltage outputs with CMOS logic.

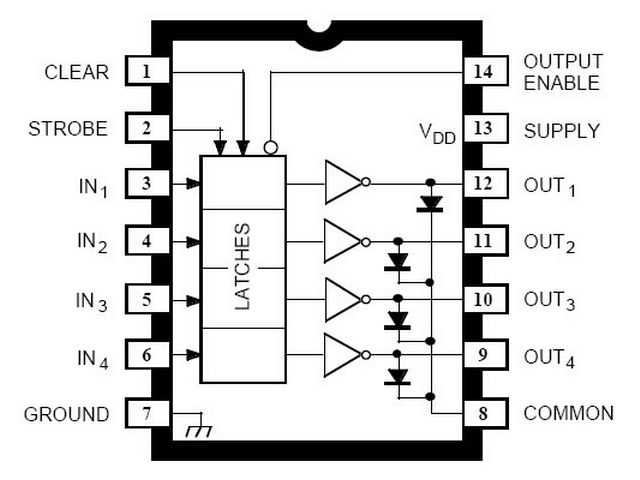

The CMOS input section consists of 4 ('D' type) latches with associated common CLEAR, STROBE, and OUTPUT ENABLE circuitry. The power outputs are bipolar NPN Darlingtons. This merged technology provides versatile, ?exible interface. These BiMOS power interface ICs greatly benefit the simplification of computer or microprocessor I/O.
Features
* 3.3 V to 5 V logic supply range
* Up to 10 MHz data input rate
* High-voltage, high-current outputs
* Darlington current-sink outputs, with improved low-saturation voltages
* CMOS, TTL compatible inputs
* Output transient protection
* Internal pull-down resistors
* Low-power CMOS latches
Applications
* Relays
* Lamps
* Solenoids
* Small DC motors
