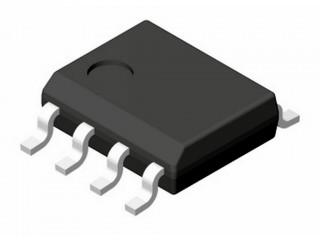

AD8066ARZ SO-8 RRO dual op-amp hi-perf

The AD8066 FastFET amplifiers are voltage feedback amplifiers with FET inputs offering high performance and ease of use. These amplifiers are developed in the Analog Devices, Inc. proprietary XFCB process and allow exceptionally low noise operation (7.0 nV/vHz and 0.6 fA/vHz) as well as very high input impedance. With a wide supply voltage range from 5 V to 24 V, the ability to operate on single supplies, and a bandwidth of 145 MHz, the AD8065/AD8066 are designed to work in a variety of applications. For added versatility, the amplifiers also contain rail-to-rail outputs. Despite the low cost, the amplifiers provide excellent overall performance. The differential gain and phase errors of 0.02% and 0.02°, respectively, along with 0.1 dB flatness out to 7 MHz, make these amplifiers ideal for video applications. Additionally, they offer a high slew rate of 180 V/µs, excellent distortion (SFDR of -88 dBc @ 1 MHz), extremely high common-mode rejection of -100 dB, and a low input offset voltage of 1.5 mV maximum under warmed up conditions. The AD8066 operate using only a 6.4 mA/amplifier typical supply current and are capable of delivering up to 30 mA of load current.
* Qualified for automotive applications * FET input amplifier * 1 pA input bias current * Low cost * High speed: 145 MHz, -3 dB bandwidth (G = +1) * 180 V/µs slew rate (G = +2) * Low noise * 7 nV/vHz (f = 10 kHz) * 0.6 fA/vHz (f = 10 kHz) * Wide supply voltage range: 5 V to 24 V * Single-supply and rail-to-rail output * Low offset voltage 1.5 mV maximum * High common-mode rejection ratio: -100 dB * Excellent distortion specifications * SFDR -88 dBc @ 1 MHz * Low power: 6.4 mA/amplifier typical supply current * No phase reversal
