Produktbeskrivning

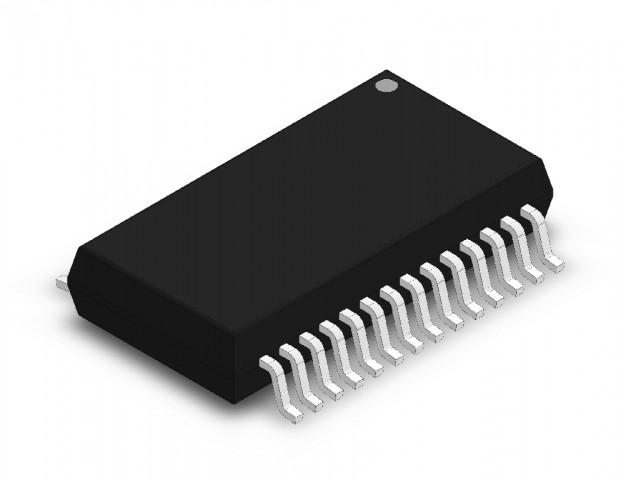

CMOS 180 MHz DDS/DAC Synthesizer
The AD9851 is a highly integrated device that uses advanced DDS technology, coupled with an internal high speed, high performance D/A converter, and comparator, to form a digitally programmable frequency synthesizer and clock generator function. When referenced to an accurate clock source, the AD9851 generates a stable frequency and phase-programmable digitized analog output sine wave. This sine wave can be used directly as a frequency source, or internally converted to a square wave for agile-clock generator applications. The AD9851's innovative high speed DDS core accepts a 32-bit frequency tuning word, which results in an output tuning resolution of approximately 0.04Hz with a 180MHz system clock. The AD9851 contains a unique 6x REFCLK Multiplier circuit that eliminates the need for a high speed reference oscillator. The 6x REFCLK Multiplier has minimal impact on SFDR and phase noise characteristics. The AD9851 provides five bits of programmable phase modulation resolution to enable phase shifting of its output in increments of 11.25°.
Features
* 180MHz Clock Rate with Selectable 6x Reference Clock Multiplier
* On-Chip High Performance 10-Bit DAC and High Speed Comparator with Hysteresis
* SFDR >43dB @ 70MHz AOUT
* 32-Bit Frequency TuningWord
* Simplified Control Interface: Parallel or Serial
* Asynchronous Loading Format
* 5-Bit Phase Modulation and Offset Capability
* Comparator Jitter <80ps p-p @ 20MHz
* 2.7V to 5.25V Single-Supply Operation
* Low Power: 555mW @ 180MHz
* Power-Down Function, 4mW @ 2.7V
Applications
* Frequency/Phase-Agile SineWave Synthesis
* Clock Recovery and Locking Circuitry for Digital
* Communications
* Digitally Controlled ADC Encode Generator
* Agile Local Oscillator Applications in Communications
* Quadrature Oscillator
* CW, AM, FM, FSK, MSK Mode Transmitter
