Produktbeskrivning

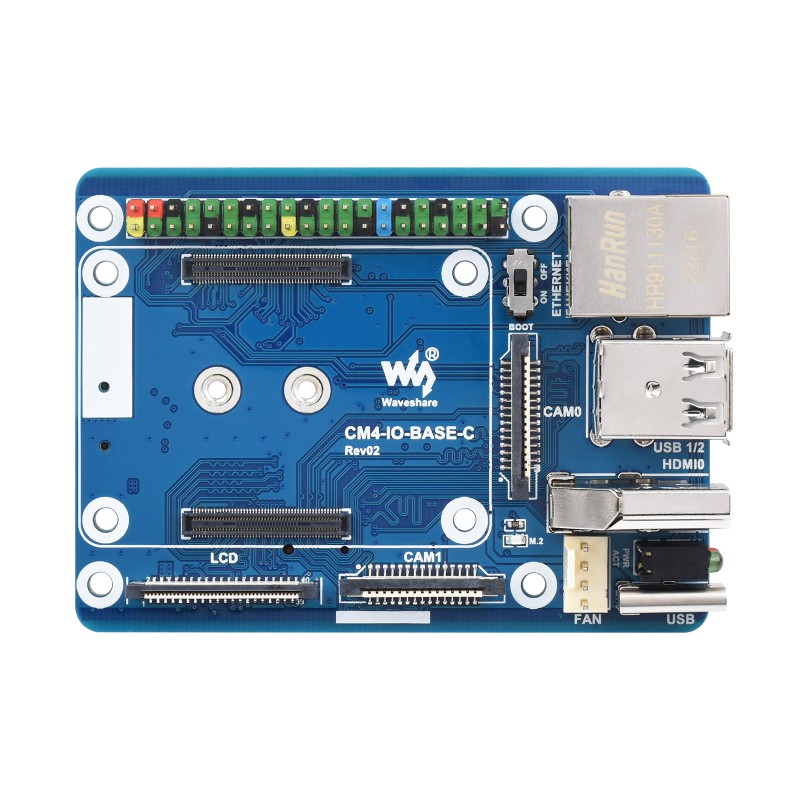

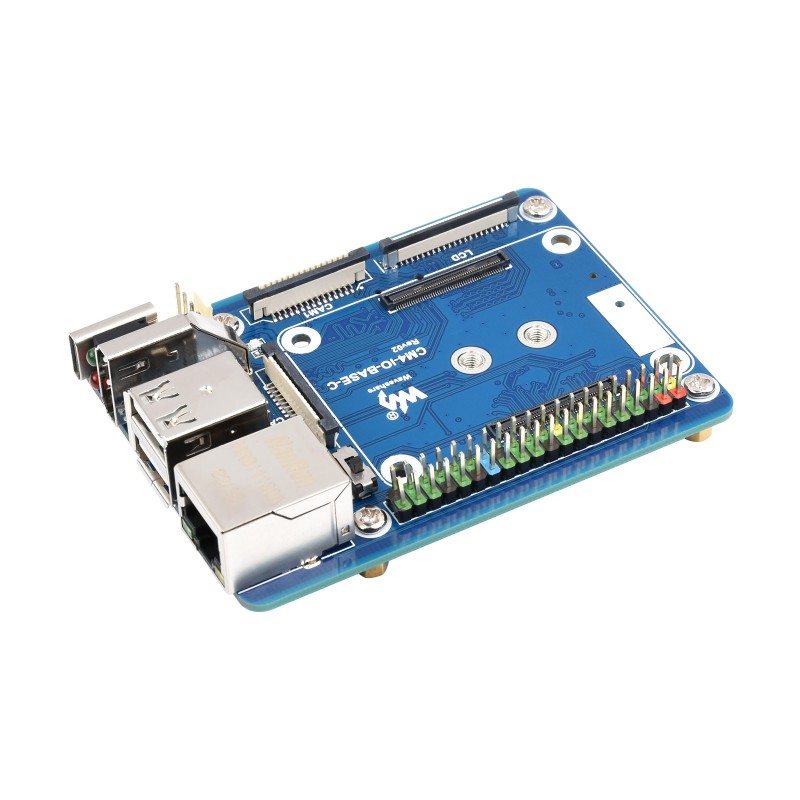

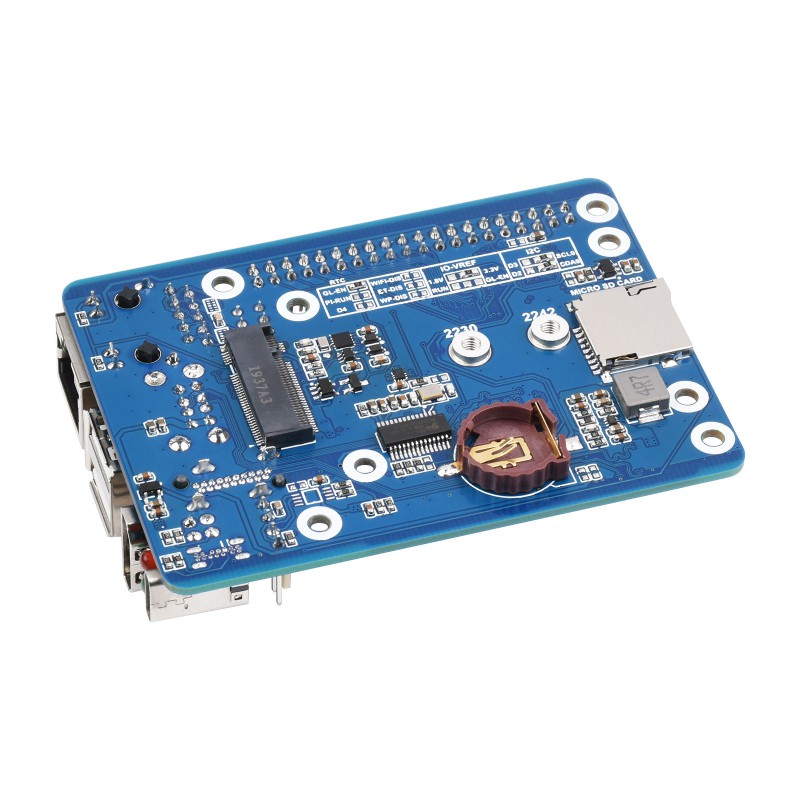

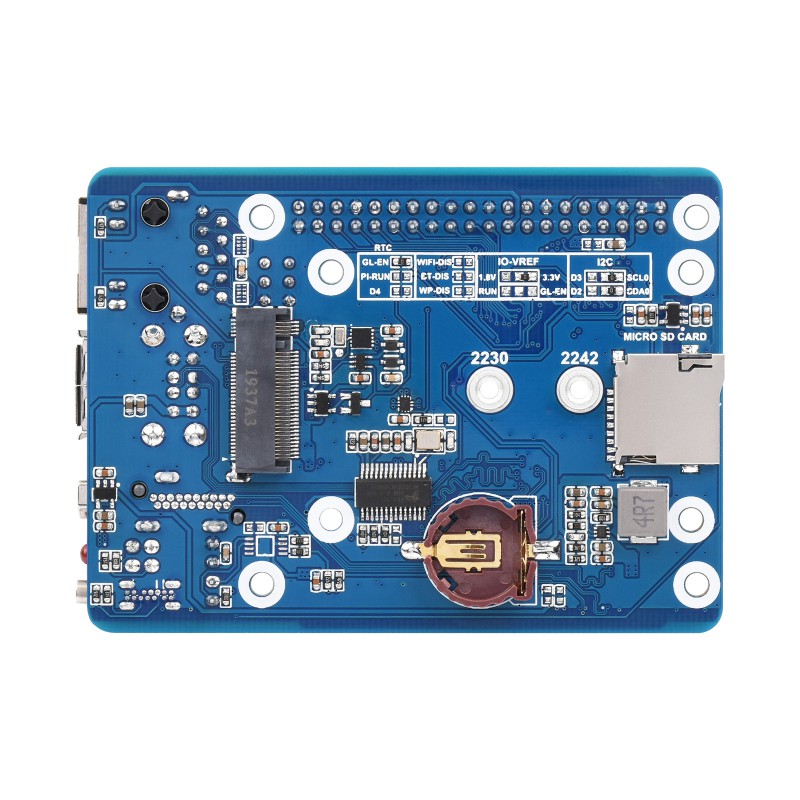

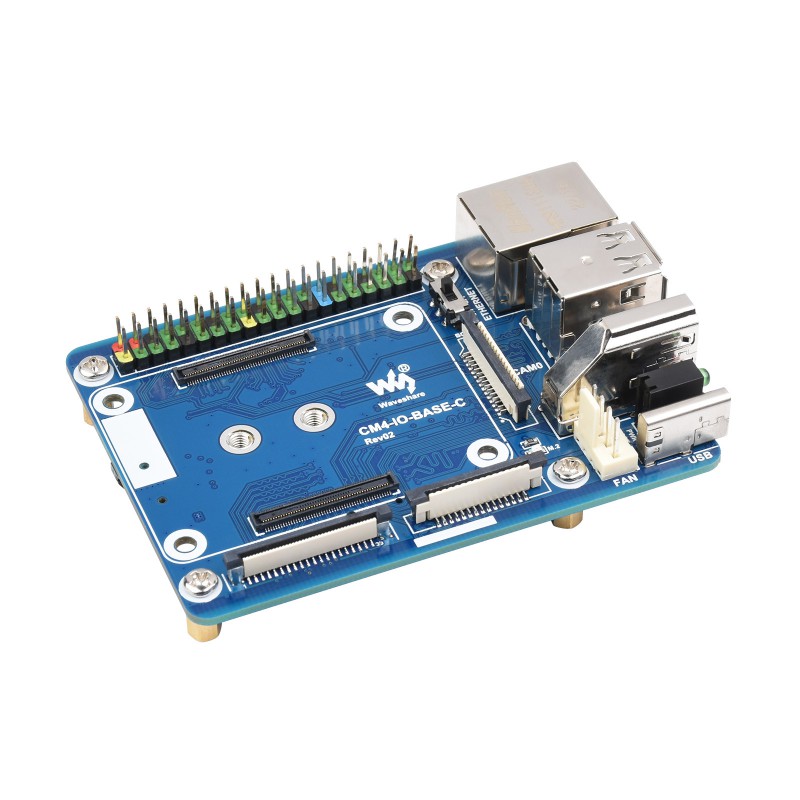

Adapterkort för Raspberry Pi Compute Module 4 (CM4). Med utgångar: HDMI, Gigabit Ethernet (RJ45), USB, Power, M.2, LCD och GIPO.
Specifikationer:
- CM4 socket: Suitable for all variants of Compute Module 4
- Networking: Gigabit Ethernet RJ45 connector
- Connector: M.2 M KEY, supports communication modules or NVME Solid State Drives
- GIPO: Raspberry Pi 40PIN GPIO header
- USB : 2x USB 2.0 Type A
- Display: LCD port (40pin 0.5mm FPC connector)
- Camera: MIPI CSI-2 camera port 2x (15pin 1.0mm FPC connector)
- Video: HDMI port, supports 4K 30fps output
- RTC: Real-time clock with battery socket (CR-2032) and ability to wake Compute Module 4
- Storage: Micro SD socket for Compute Module 4 Lite (without eMMC) variants
- Fan header: Allows speed adjustment, 5V
- Power input: 5V (USB-C)
- Dimensions: 85 x 56 mm
