Produktbeskrivning

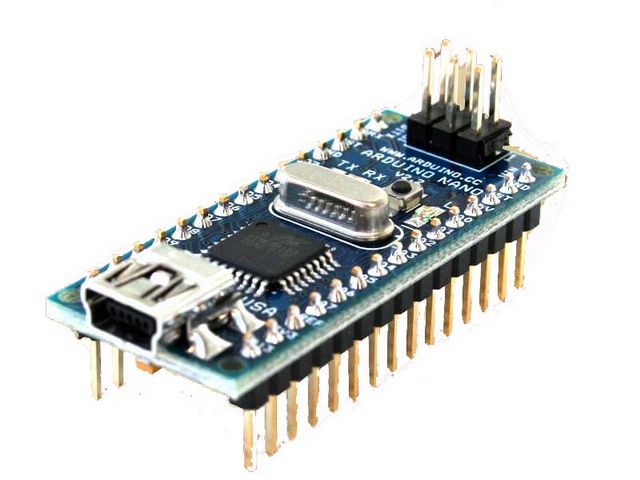

Samma funktioner som Arduiono Diecimila, men i absolut minitatyrutförande. Hela kortet har storlek av en 32-pin DIL och är mycket lätt att använda på t.ex kopplingsdäck.
USB-anslutning sker via mini-USB.
Specifications:
Microcontroller Atmel ATmega328
Operating Voltage (logic level) 5 V
Input Voltage (recommended) 7-12 V
Input Voltage (limits) 6-20 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (of which 2KB used by bootloader)
SRAM 2 KB
EEPROM 512 bytes
Clock Speed 16 MHz
Dimensions 0.73" x 1.70"
Features:
* Automatic reset during program download
* Power OK blue LED on the bottom
* Green (TX), red (RX) and orange (L) LED
* +5V to AREF jumper
* Auto sensing/switching power input
* Small mini-B USB for programming and serial monitor
* ICSP header for direct program download
* Power OK blue LED on the bottom
* Standard 0.1" spacing DIP (breadboard friendly)
* Manual reset switch
Power: The Arduino Nano can be powered via the mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
USB-anslutning sker via mini-USB.
Specifications:
Microcontroller Atmel ATmega328
Operating Voltage (logic level) 5 V
Input Voltage (recommended) 7-12 V
Input Voltage (limits) 6-20 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (of which 2KB used by bootloader)
SRAM 2 KB
EEPROM 512 bytes
Clock Speed 16 MHz
Dimensions 0.73" x 1.70"
Features:
* Automatic reset during program download
* Power OK blue LED on the bottom
* Green (TX), red (RX) and orange (L) LED
* +5V to AREF jumper
* Auto sensing/switching power input
* Small mini-B USB for programming and serial monitor
* ICSP header for direct program download
* Power OK blue LED on the bottom
* Standard 0.1" spacing DIP (breadboard friendly)
* Manual reset switch
Power: The Arduino Nano can be powered via the mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
