Argon ONE V3 M.2 NVME Case further expands your Raspberry Pi 5 potential with included M.2 NVME Expansion Board support.
Boot your Raspberry Pi 5 from an NVME M.2 Drive.

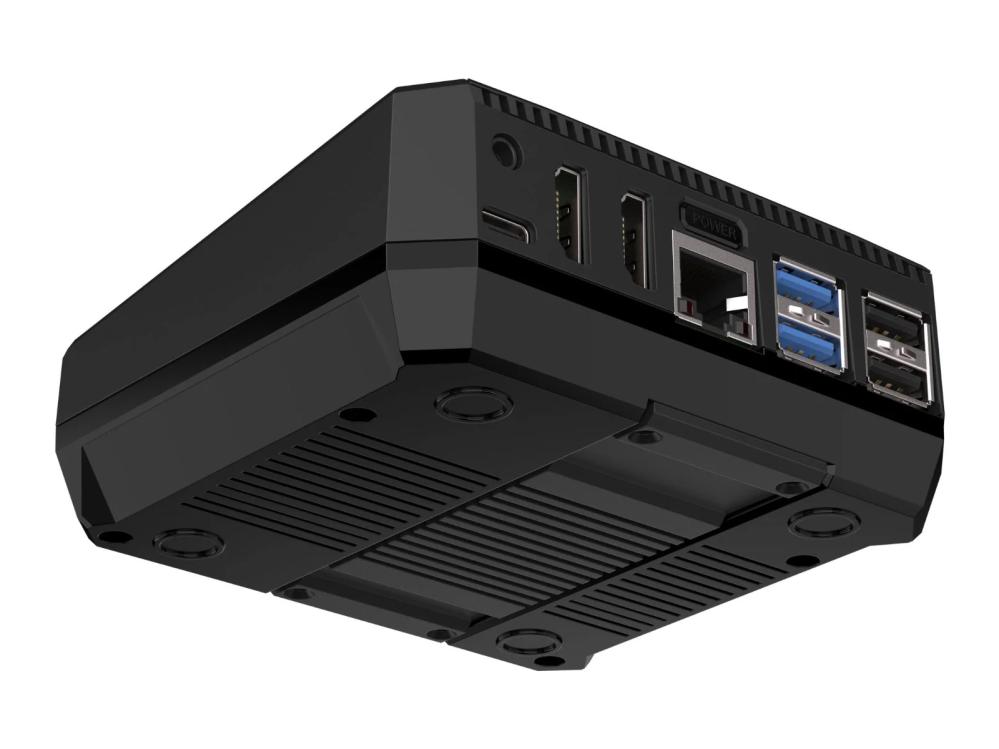

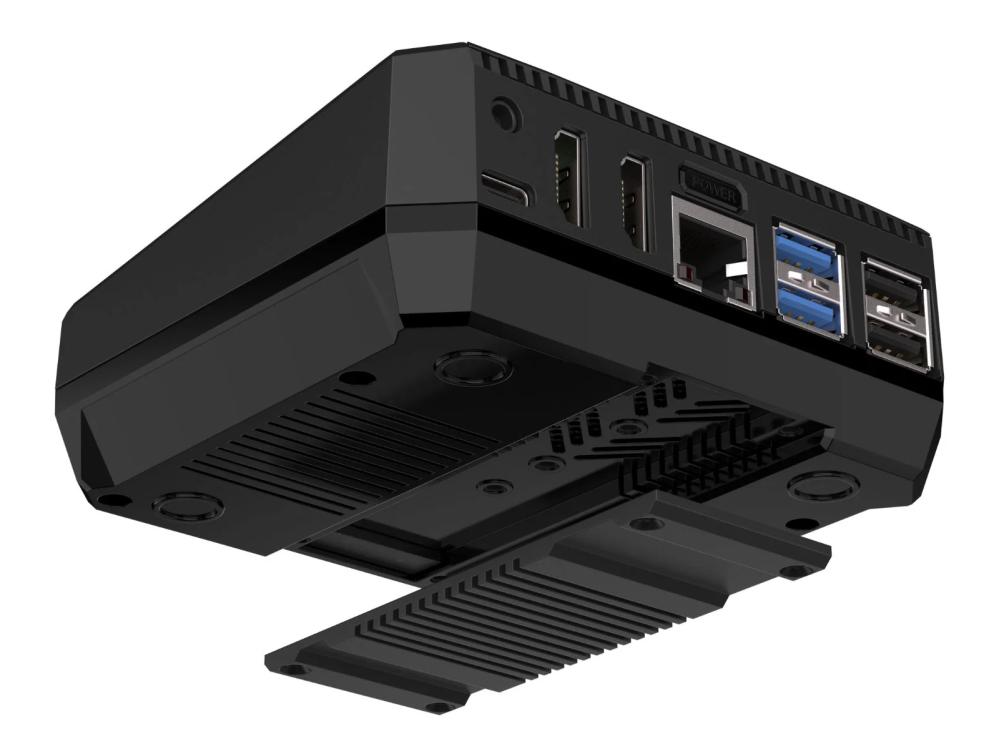

Built-in HEATSINK for your M.2 NVME Drive
Enjoy faster and higher storage access by connecting M.2 NVME drives via the PCIe slot on the Raspberry Pi 5
Versatile M.2 NVME support compatible with any M.2 NVME with M-Key up to 2280 size

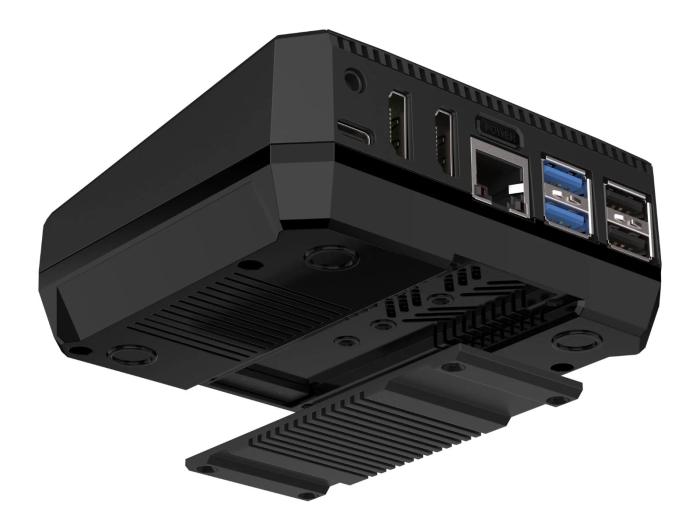

Greater thermal management on M.2 NVME with included aluminum heatsink specific to M.2 drive to keep it cool, efficient and working longer

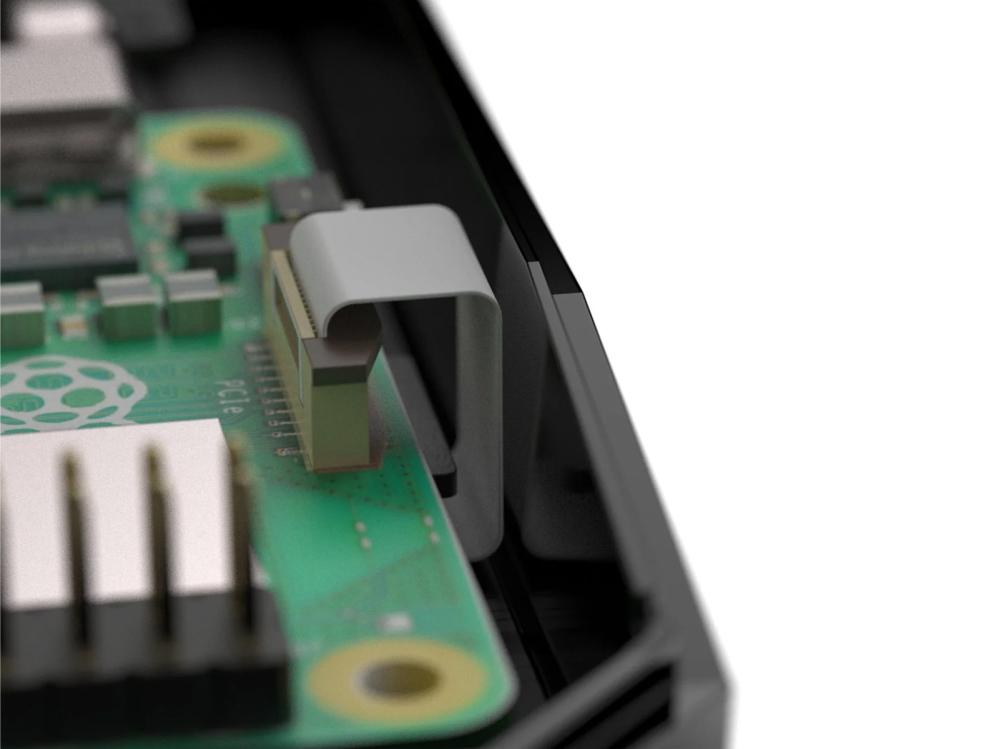

Reliable and consistent data transfer with included FPC impedance controlled cable

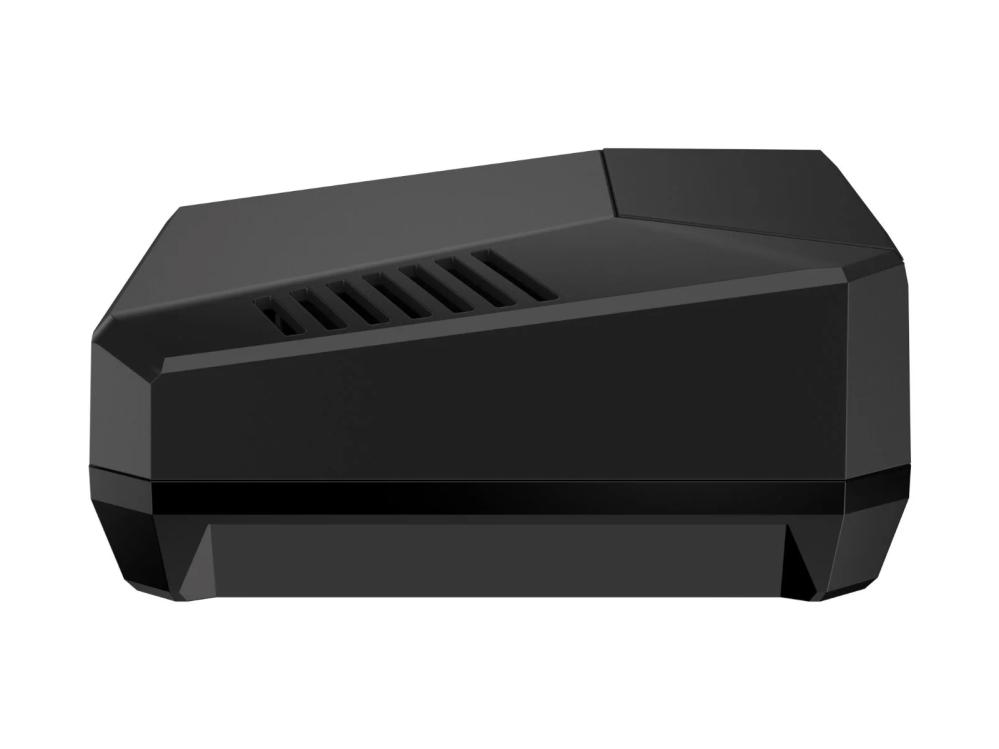

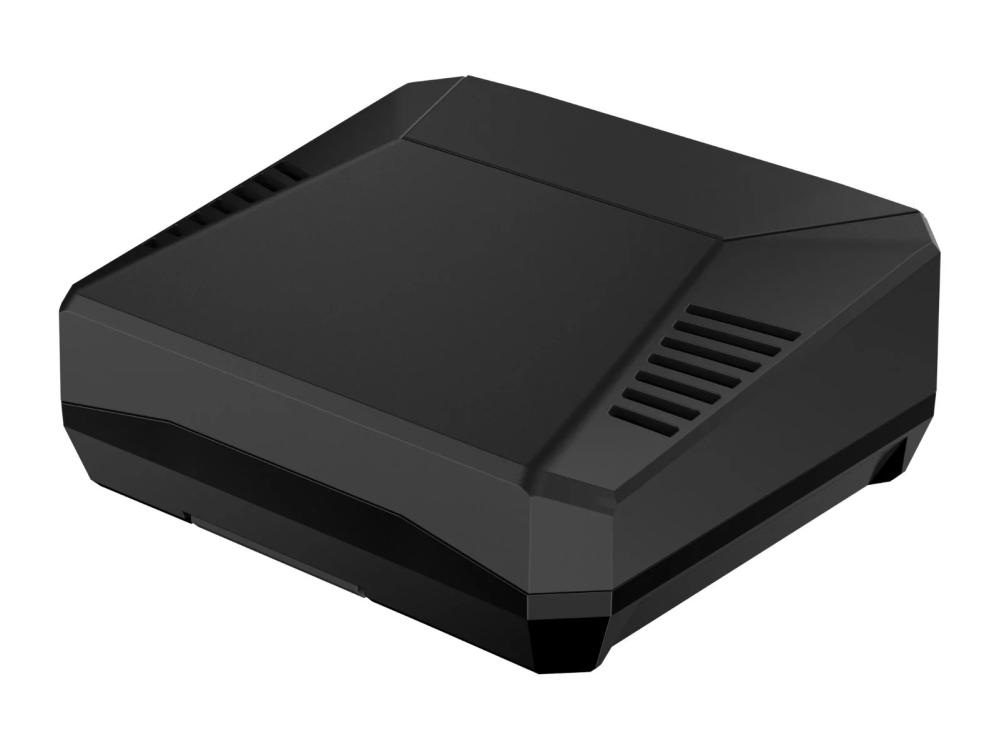

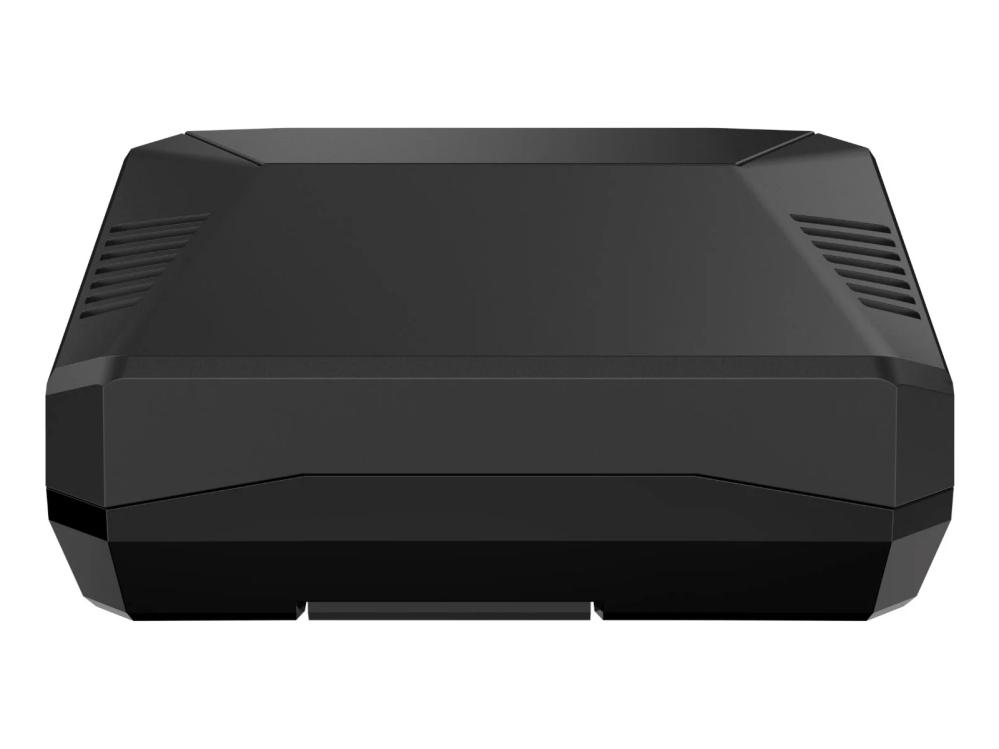

Argon ONE V3 M.2 NVME Case is now made compatible for Raspberry Pi 5 with upgraded features and all new black finish.
Better Active Cooling with the blower type PWM programmable 30mm fan. Repositioned within the case to be more efficient and quiet.
Improved Passive Cooling with the addition of heatsink on the power management chip of the Raspberry Pi 5 aside from its CPU, which both get hot during heavy use.
Better communication and power management with the Raspberry Pi 5 thru Raspberry Pi's RP2040 chip, which controls the features and functions of the Argon ONE V3, like fan speed, power management state (e.g. boot manually or automatically after a power outage by simply setting the jumper pins inside the case) allowing you to use the Argon ONE however you see fit.
Power button located at the back can perform the following with the installation of a open sourced script allows for safe shutdown, reboot and forced shutdown
Cable management remains exquisite with two full-sized HDMI ports neatly placed at the back allows the Raspberry Pi 5 to use two monitors simultaneously

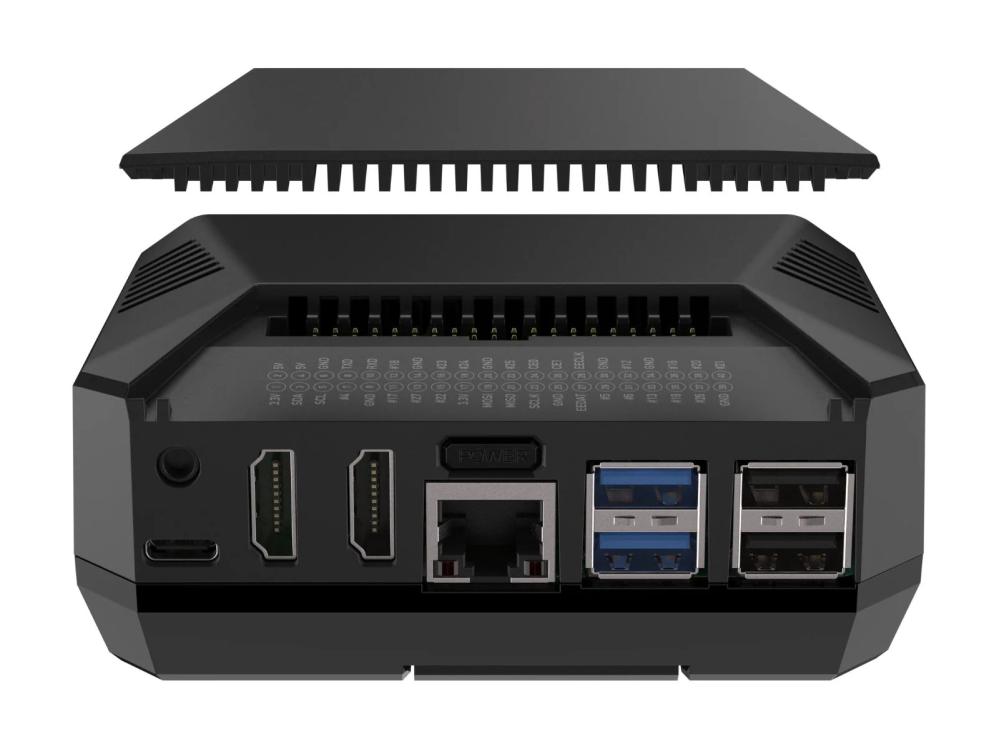

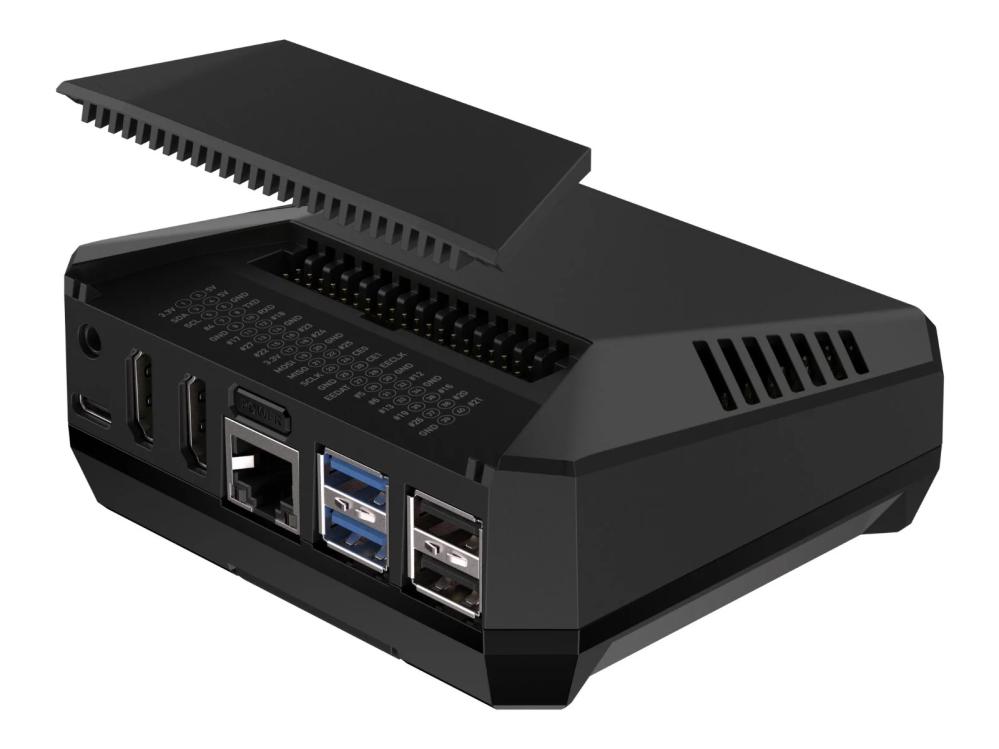

Sleek magnetic cover to the access port of the custom color coded GPIO Pins.
Built-in IR receiver allows the Argon ONE V3 to be easily usable with the Argon IR remote meaning the case now makes for an even better media player!
Enjoy using your audio accessories with the OPTIONAL 3.5mm audio jack via the internal DAC audio board upgrade (see separate listing)
M.2 NVMe Drive Compatibility:
Other drives may also be compatible but we have not tested yet.
Western Digital SN850
Western Digital SN740
Western Digital SN570
Western Digital SN530
Western Digital Black SN750 SE (Phison Controller)
Team MP33
Samsung 980 Pro
Samsung 980
Sabrent Rocket Nano
Sabrent Rocket 4.0
PNY CS1030
Origin Inception TLC830 Pro NVMe
Netac NV3000 NVMe SSD
Netac NV2000 NVMe SSD
Lexar NM710
Lexar NM620
Kioxia Exceria NVMe SSD
Kioxia Exceria G2 NVMe SSD
Kingston KC3000
Kingston SNV2S NV2 Gen4 PCIe NVMe M.2 2280 Solid-State Drive
Inland PCIe NVMe SSD
Crucial P3 Plus M.2
Crucial P3 M.2
Crucial P2 M.2
Axe Memory Generic Drive
AData XPG SX8200 Pro
