Produktbeskrivning

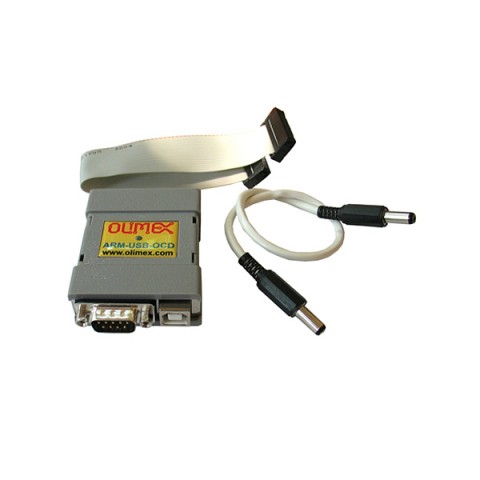

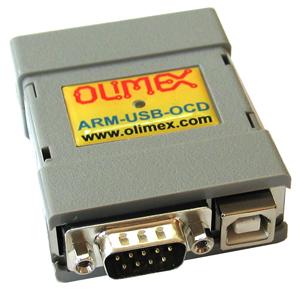

Description: This is the mother of all JTAG Programmers for ARMs - and it's about 1/10th the price of other programmer/debuggers with the same functionality!
Features: First on market three-in-one USB JTAG debugger - offers JTAG + RS232 (full modem signals supported) port + power supply all in one compact device Fast speed USB 2.0 JTAG dongle interface, can be used with all ARM devices for programming and debugging. Uses ARM's standard 2x10 pin JTAG connector Supports ARM targets working in voltage range 2.0 - 5.0 V DC Software supported by OpenOCD (open source) debugger adds virtual RS232 port to your computer with all modem signals like: DTR, DSR, DCD, RTS, CTS, Rx, Tx Can be used as power supply to your target board with three jumper selectable power supplies: 5V 9V and 12VDC, USB source current is limited with resetable fuse at 300mA, at the different output voltage the maximum current is different: 5V/200mA, 9V/100mA, 12V/70mA, note that this also depend on your USB host current capabilities, if other USB devices are attached to your computer or if the laptop is running on batteries these figures may be different and depend on your computer USB host. Comes with CD with Windows installer for full featured and open source tools as alternative to the commercial ARM development packages: GCC C compiler, openOCD debugger and Eclipse IDE. Dimensions: 50x40 mm (2x1.6") + 20 cm (8") JTAG cable + 30 cm (12") power supply cable
