Produktbeskrivning
It's the next version of the popular Easy Driver board.

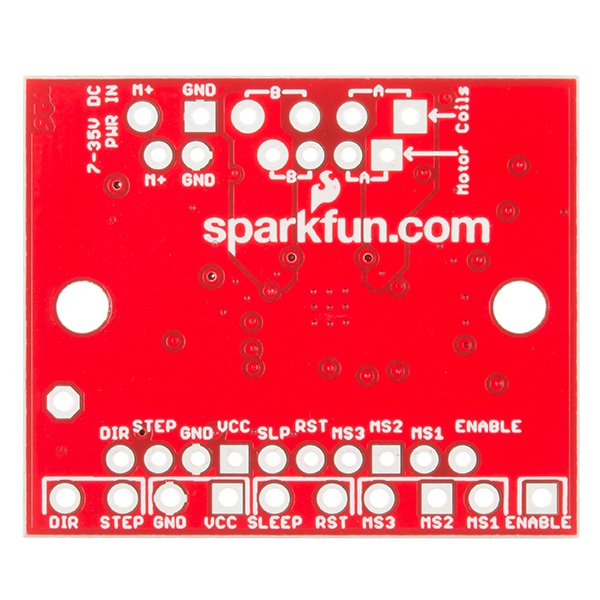

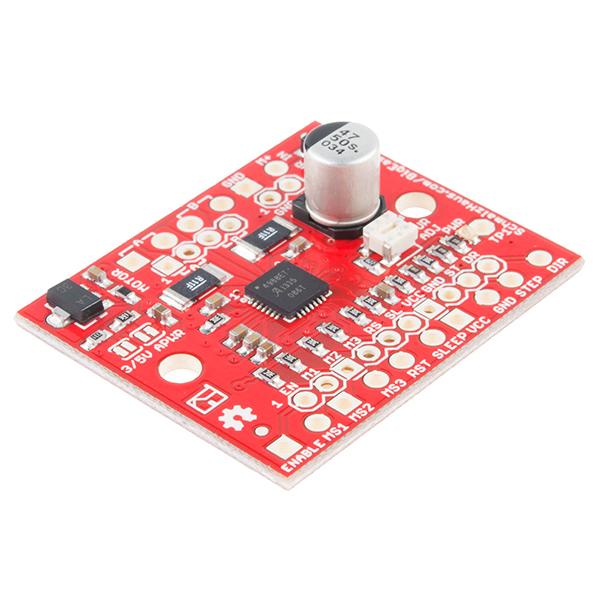

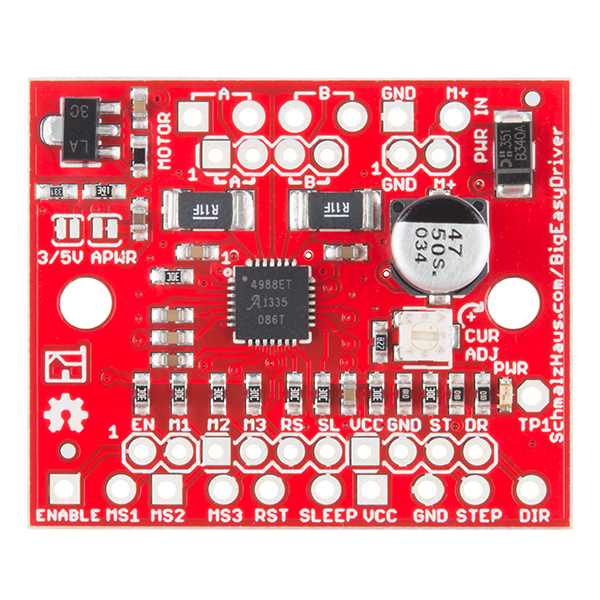

The Big Easy Driver, designed by Brian Schmalz, is a stepper motor driver board for bi-polar stepper motors up to a max 2A/phase. It is based on the Allegro A4988 stepper driver chip. Each Big Easy Driver can drive up to a max of 2A per phase of a bi-polar stepper motor. It is a chopper microstepping driver which defaults to 16 step microstepping mode. It can take a maximum motor drive voltage of around 35V, and includes on-board 5V/3.3V regulation, so only one supply is necessary. Although this board should be able to run most systems without active cooling while opperating at 1.7A/phase, a heatsink is recommended for loads approaching 2A/phase. You can find the recommended heatsink in the related items below.
Features:
Bi-polar Microstepping Driver
2A/Phase Max
Max Motor Drive Voltage: 35V
On-board 5V/3.3V Regulation
Note: This product is a collaboration with Brian Schmalz. A portion of each sales goes back to him for product support and continued development.
