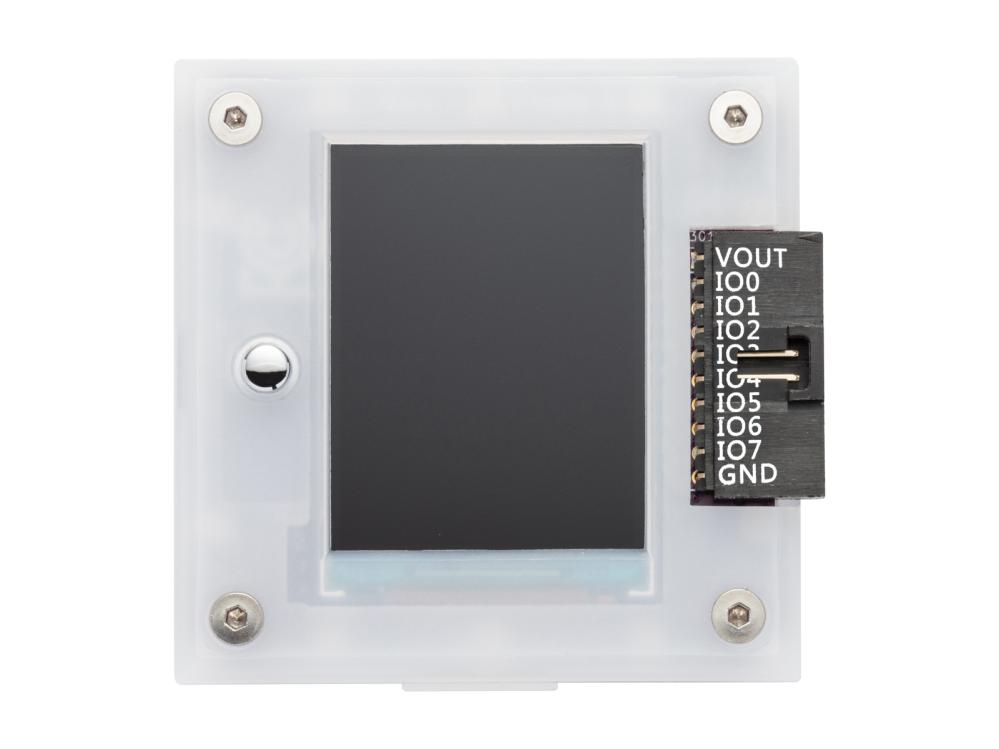

Bus Pirate v5 med inbyggnadslåda (REV10)

Bus Pirate V5 är ett universellt debugging-verktyg som är avsett för felsökning och analys av mikrokontrollers, sensorer och andra integrerade kretsar. Huvuduppgiften för Bus Pirate V5 är avkodning och felsökning av serieprotokoll och annan debugging.

Bus Pirate V5 is the latest edition of the universal serial interface trusted by hackers since 2008.

Can't get a chip to work? Is it the circuit, code, bad part or a burned out pin? The Bus Pirate sends commands over common serial protocols (1-Wire, I2C, SPI, UART, MIDI, serial LEDs, etc) so you can get to know a chip before prototyping. Updated with tons of new features, talking to chips and probing interfaces is more fun than ever!

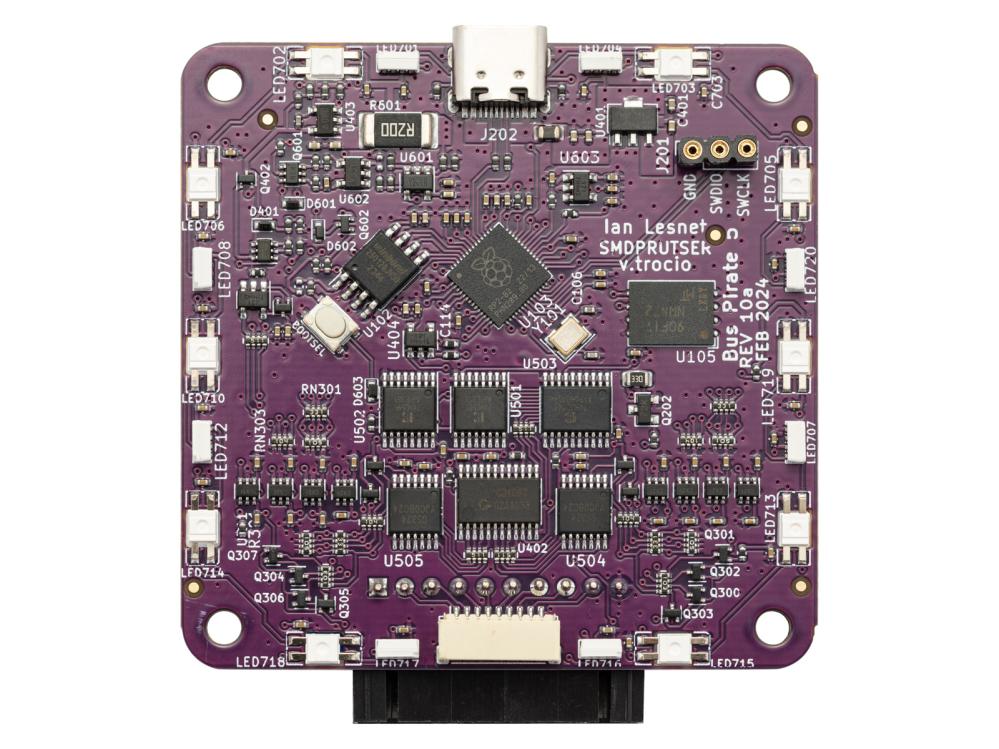

RP2040

• Based on Raspberry Pi Foundation RP2040

• 128Mbit flash storage for lots of features

• Firmware developed with the Pico C language SDK

8 Buffered IO pins

• 1.65-5volt operating range, 3 state

• Voltage measurement on every pin

• Toggleable 10K pull-up resistors

• 10 pin x 2.54mm main header

• 9 pin x 1.0mm auxiliary header

Programmable Power Supply Unit

• Current Sense

• Programmable 1-5.0volt output

• Programmable 0-500mA current limit

• Resettable digital fuse

• Protection circuit

1Gbit NAND flash storage

• Save global and mode settings

• Appears as a USB disk drive

• Future use for logs, dumps and stand-alone programming

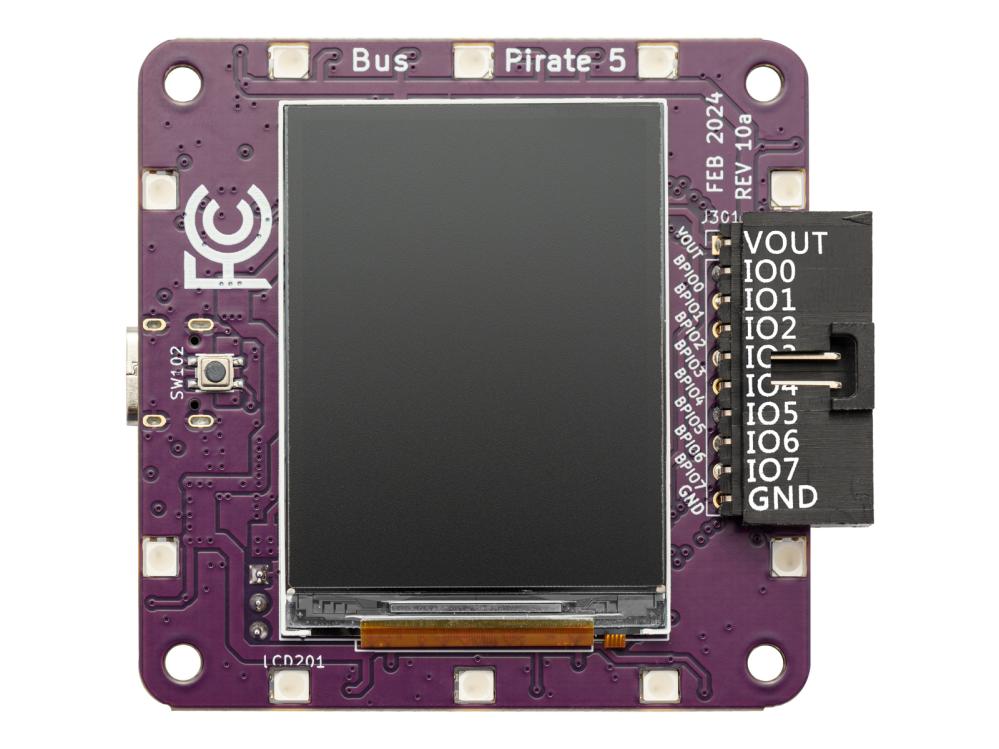

Display

• 320 x 240 pixel IPS all direction display

• Pin labels

• Live voltage measurements

• Live current consumption

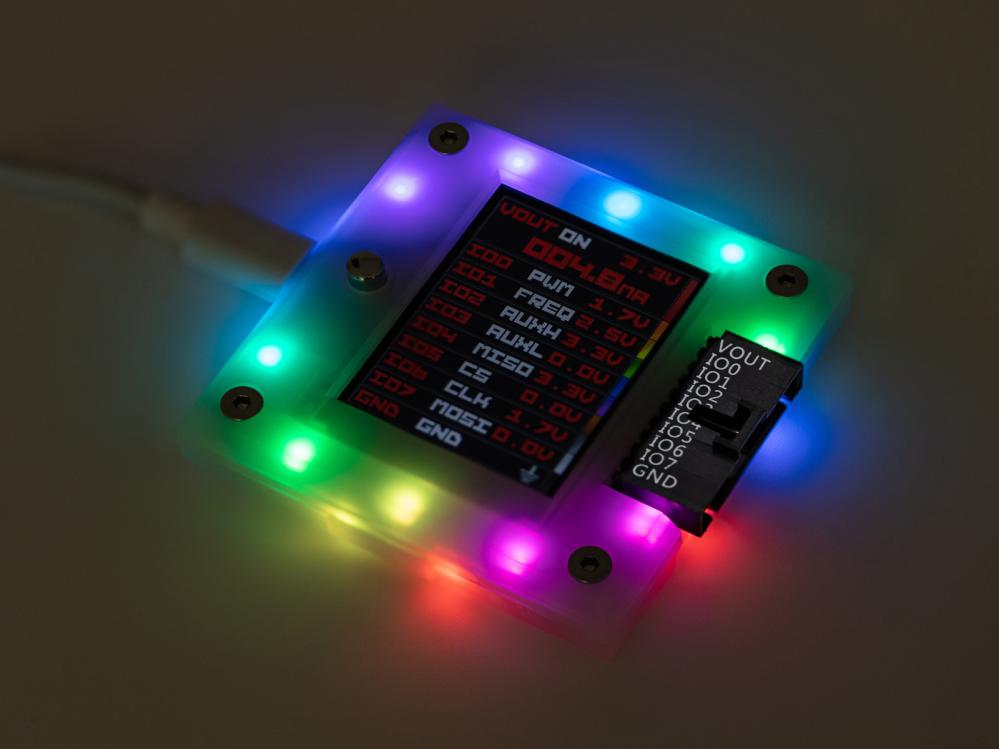

18 RGB LEDs

• Introduction demo

• Party mode

Just one button

• Escape from modes

• User input for production programming, remote hacking, whatever

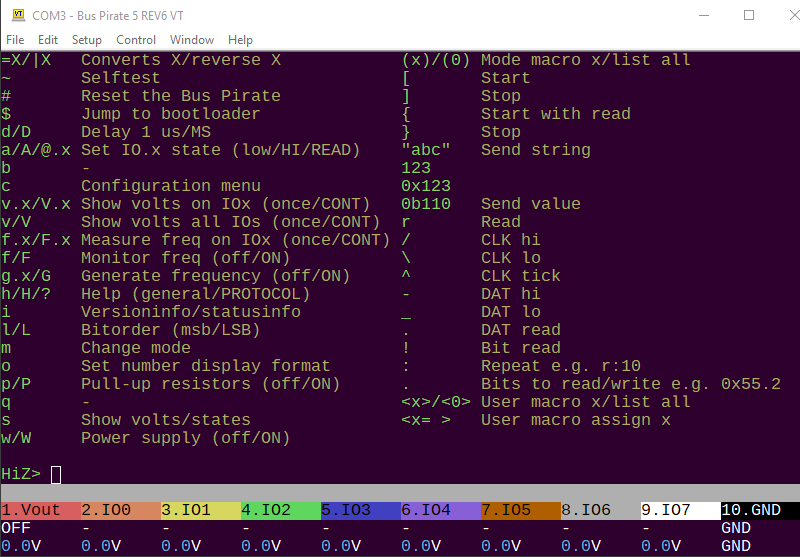

VT100 terminal interface

• Color interface

• Live update toolbar/monitor

USB bootloader

• Updating is as simple as dragging a file onto the disk

USB C connector

• Limited to the USB speeds supported by the RP2040

Specifications

• Raspberry Pi RP2040 with 128Mbit program flash

• 8 powerful IO pins - Support multiple protocols from 1.2-5volts. Analog voltage measurement and optional 10K pull-ups on all pins

• 1-5volt output power supply - 0-500mA current limit, current sense, resettable fuse and protection circuit

• 1Gbit NAND flash - Store settings and files. Appears as a USB drive.

• LCD - A beautiful 240x320 pixel color IPS (all angle viewing) LCD acts as a pin label, while also showing the voltage on each pin and the current consumption of the programmable power supply unit

• 18 RGB LEDs - It's customary to have an indicator LED, so to check that box we added 16 SK6812 RGB LEDs.

• Just one button - 18 party LEDs but just one button!

• 1-Wire, I2C, SPI, UART, MIDI, serial LEDs supported, more to come!
