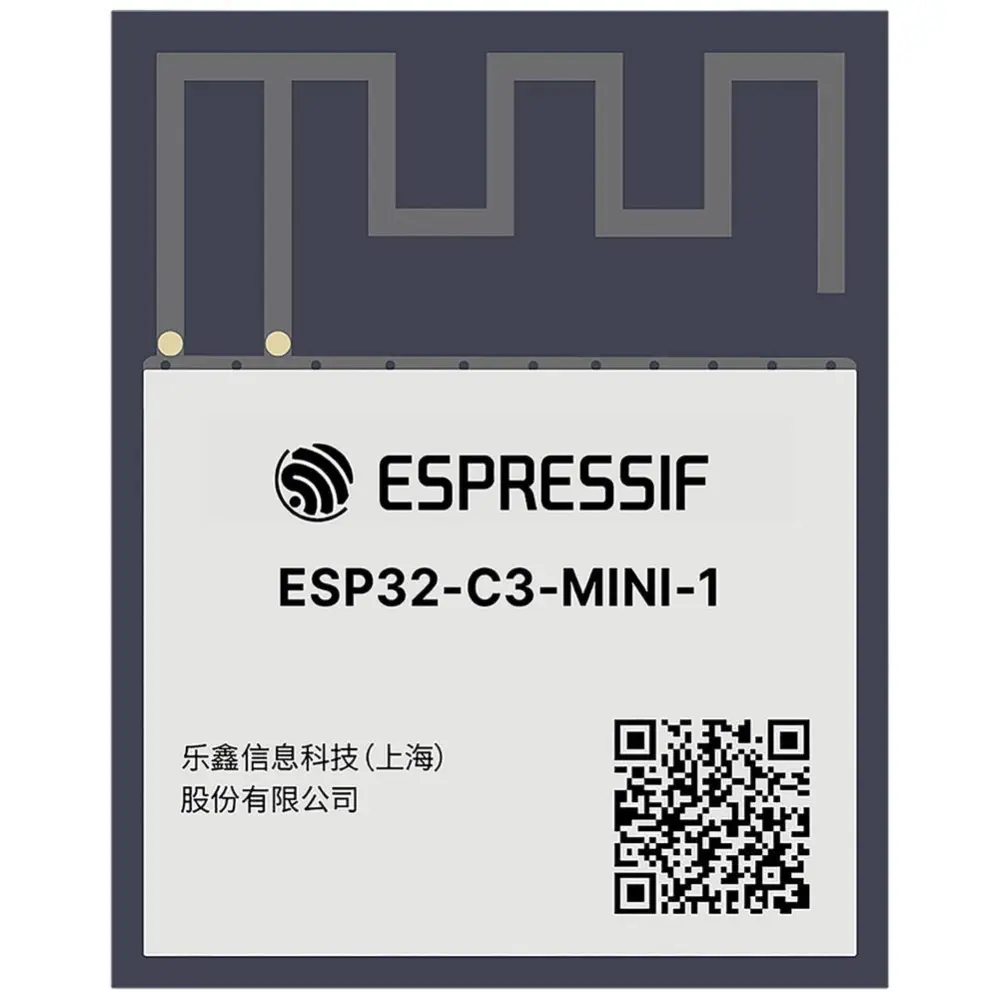

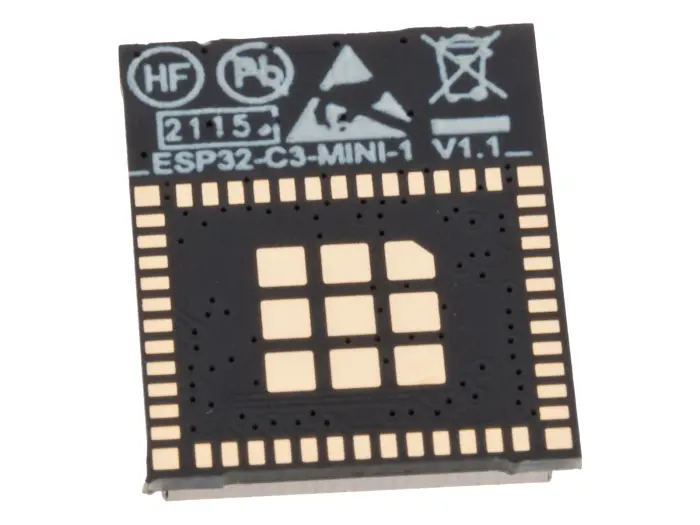

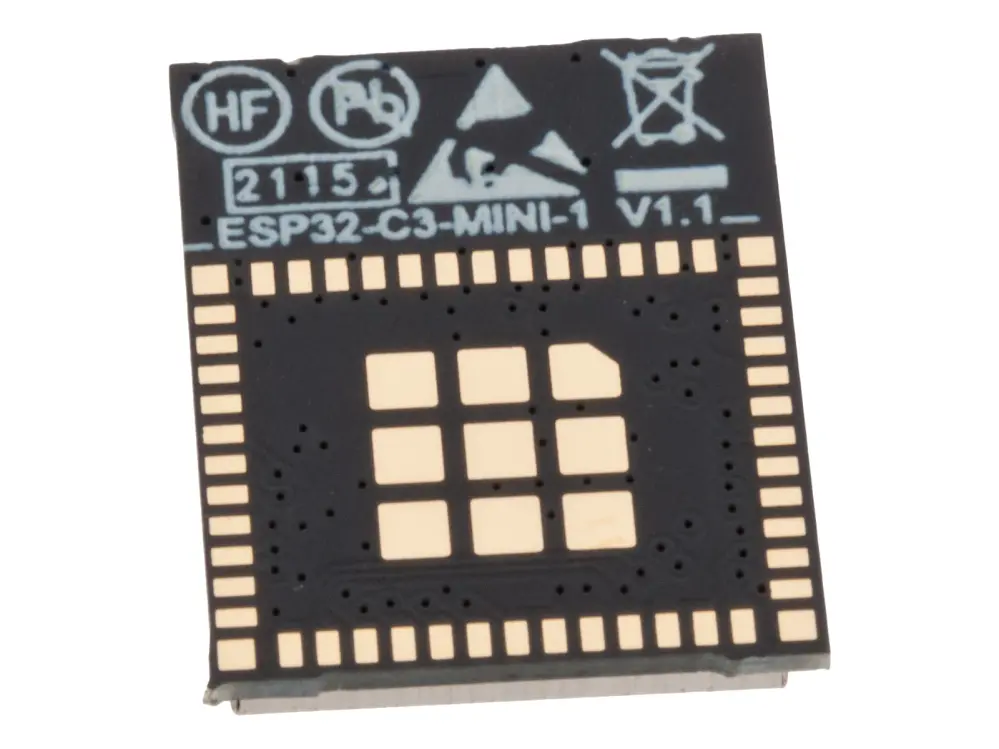

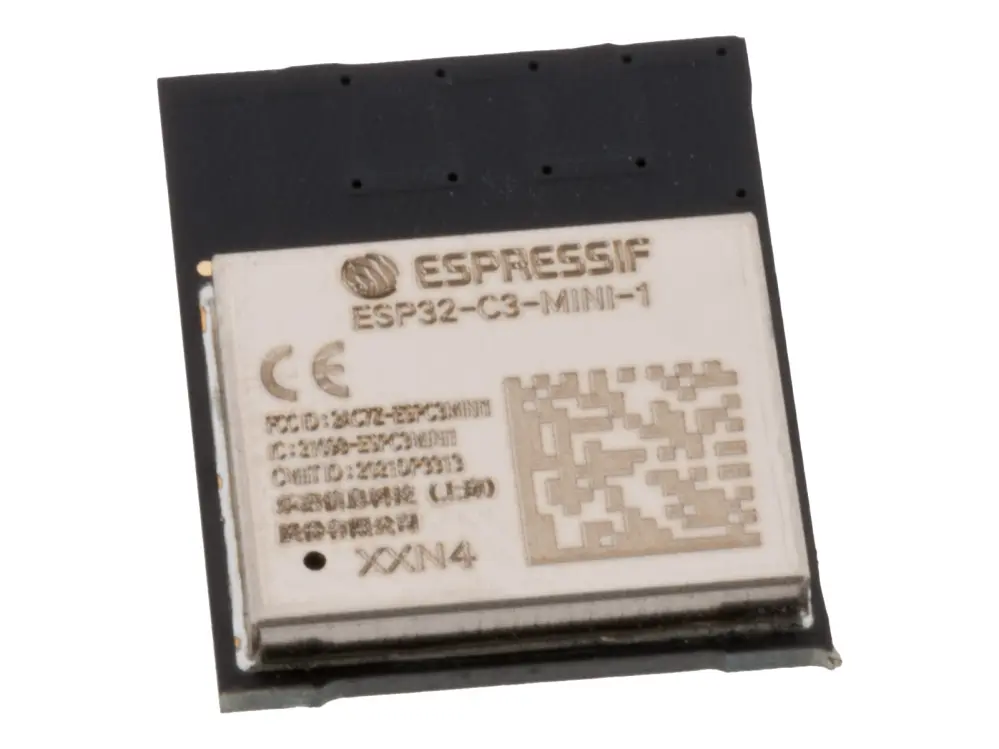

ESP32-C3-MINI-1 MCU-modul 4MB

ESP32-C3-MINI-1-N4 modul med PCB-antenn.

• Kärna: 32-bit RISC-V Single Core
• Frekvens: 160 MHz
• Programminne (SRAM): 400 kB
• Lagring, SPI-flash: 4 MB SRAM
• Permanent minne (ROM): 348 KB
• GIPO: 15
• Bluetooth version: 5 (LE)
• WiFi4: (802.11 b/g/n) 150 Mbps
• Drivspänning: 3.0-3.6V
• Spänning logiknivåer: 3.3V
• Montering: kort-till-kort-lödning (ytmontering)
• Mått: 13.2x16.6x2.4 mm
• 2.4 GHz antenn: Inbyggd PCB-antenn
• Gränssnitt: SPI, UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), USB Serial/JTAG controller, temperature sensor, SAR ADC, general-purpose timers, watchdog timers
