ESP32-C3 Utvecklingskort 4MB Lipo

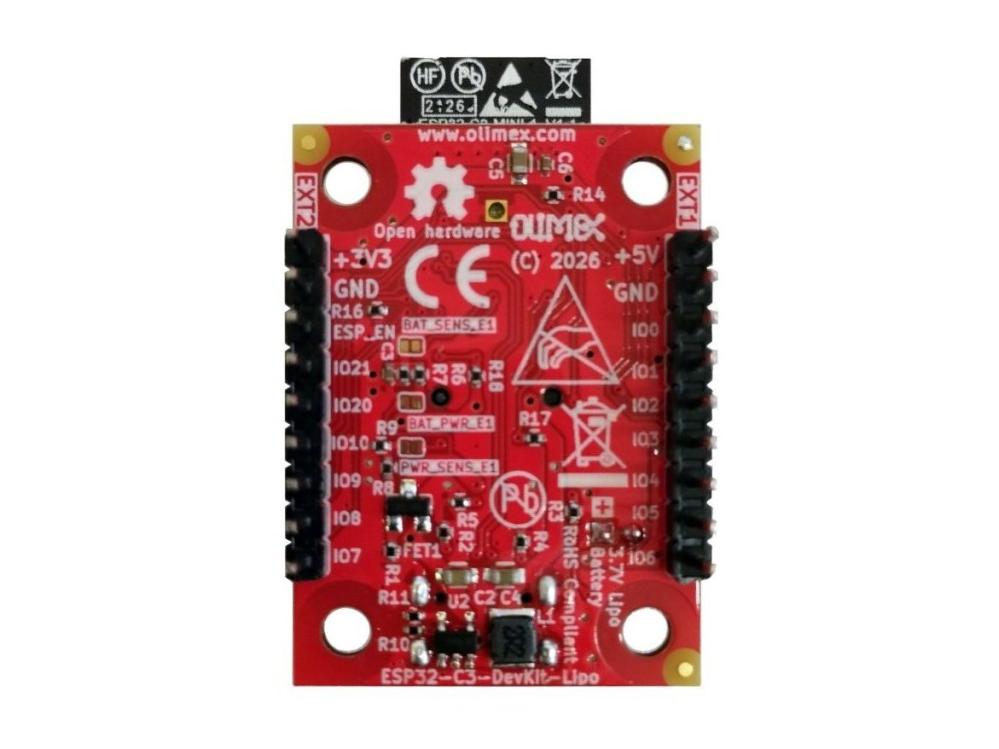

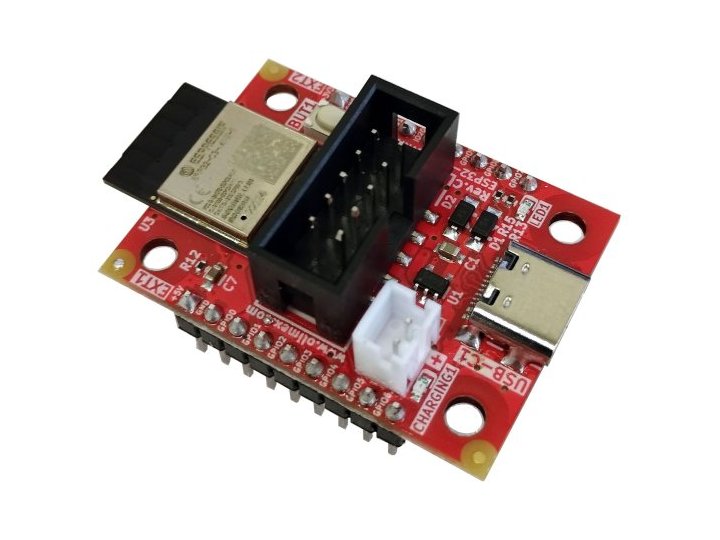

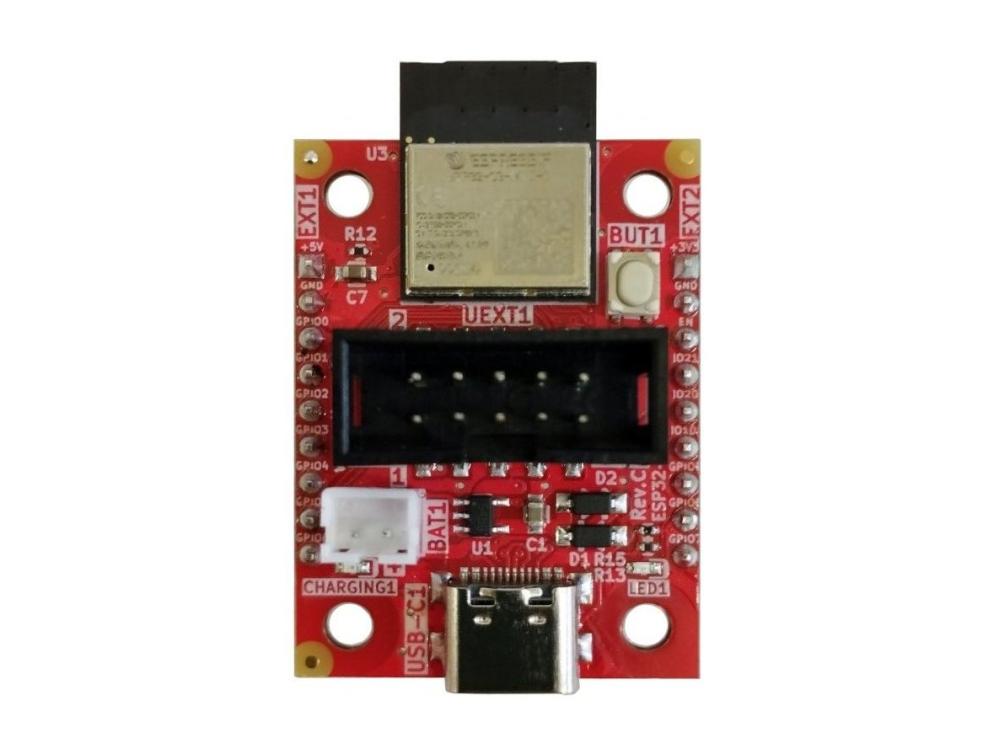

ESP32-C3-DevKit-Lipo is entry level RISC-V board with USB, JTAG, WiFi, Bluetooth5 and Lipo charger.

• RISC-V single core processor runninig on 160 Mhz
• 384 KB ROM, 400 KB SRAM, 8 KB SRAM in RTC
• 4 MB embedded flash
• 2.4 GHz WiFi (802.11 b/g/n) 1T1R up to 150 Mbps
• Bluetooth 5
• 15 GPIOs
• Onboard antenna
• Build in LiPo battery charger with STATUS LED, for handheld operations
• Lipo battery connector for Olimex LiPo batteries
• Reset button
• STATUS LED
• ICSP programming connector for rescue with ESP-PROG-C
• 4 mount holes
• USB-C connector for Debugging and Programming
• EXT1, EXT2 headers with all signals and power supply
