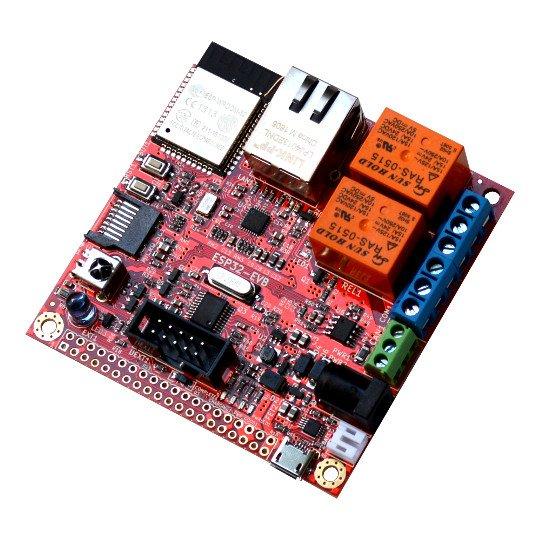

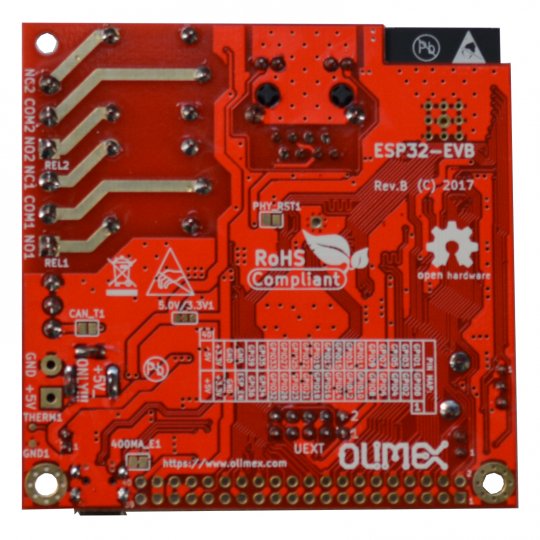

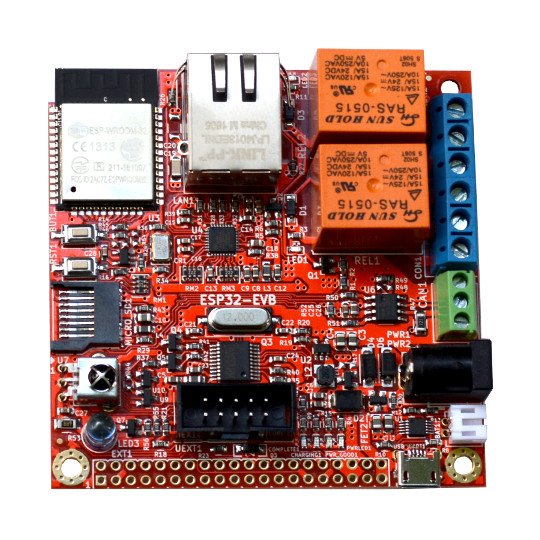

ESP32-EVB evaluation board

This is the ultimate IoT board with wired 100Mb Ethernet Interface, Bluetooth LE, WiFi, Remote control IR, and CAN connectivity. The board can operate with single LiPo backup battery like UPS as it has an internal LiPo battery charger and a step-up converter. Two relays allows you to switch power appliances on and off.

FEATURES
ESP32-WROOM32 module
Built-in programmer for Arduino and ESP-IDF
WiFi, BLE connectivity
Ethernet 100Mb interface
MicroSD card
2 x 10A/250VAC (15A/120VAC 15A/24VDC) relays with connectors and status LEDs
CAN interface
IR received and transmitter, up to 5 meters distance
LiPo charger for stand alone operation during power breaks with 4 status LEDs
Power jack for external power supply, 5V
UEXT connector to connect UEXT modules
GPIO 40 pin connector with all ESP32 ports
Dimensions: (75 x 75)mm ~ (2.95 x 2.95)"
