Produktbeskrivning

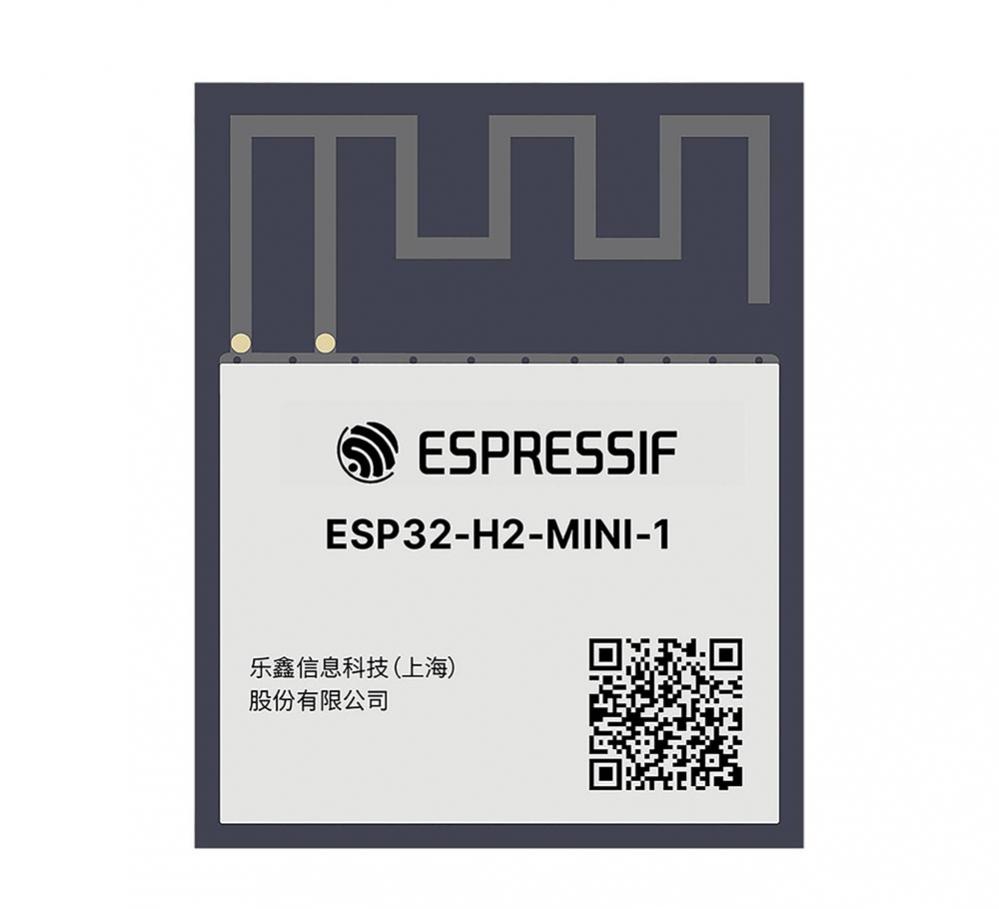

ESP32-H2 MCU-modul 4MB
- Kärna: 32-bit RISC-V Single Core
- Frekvens: 96 MHz
- Programminne (SRAM): 320 kB
- Lagring, flash: 4 MB
- Permanent minne (ROM): 128 KB
- GIPO: 19
- Bluetooth version: 5.3 (LE)
- Zigbee and Thread (802.15.4)
- Stöd för: Mater, HomeKit, MQTT
- Drivspänning: 3.0-3.6V
- Spänning logiknivåer: 3.3V
- Montering: kort-till-kort-lödning (ytmontering)
- Mått: 13.2x16.6x2.4 mm
- 2.4 GHz antenn: Inbyggd PCB-antenn
- Gränssnitt: I2C, I2S, SPI, UART, ADC, LED PWM, ETM, GDMA, PCNT, PARLIO, RMT, TWAI®, MCPWM, USB Serial/JTAG, temperature sensor, general-purpose timers, system timer, watchdog timer
