We use this joystick in our new Picade and it's solid, responsive, and reliable. The feel is a little looser than the Zippyy joystick that we sell, more similar to a Japanese joystick. Pair it with a Raspberry Pi, Picade X HAT, and some arcade buttons and you've got all the controls you need to build your own arcade machine!
We'd recommend also picking up one of our new Picade wiring looms, which includes a 5-pin connector to 5x Dupont connector cable that can be used with this joystick.
Features

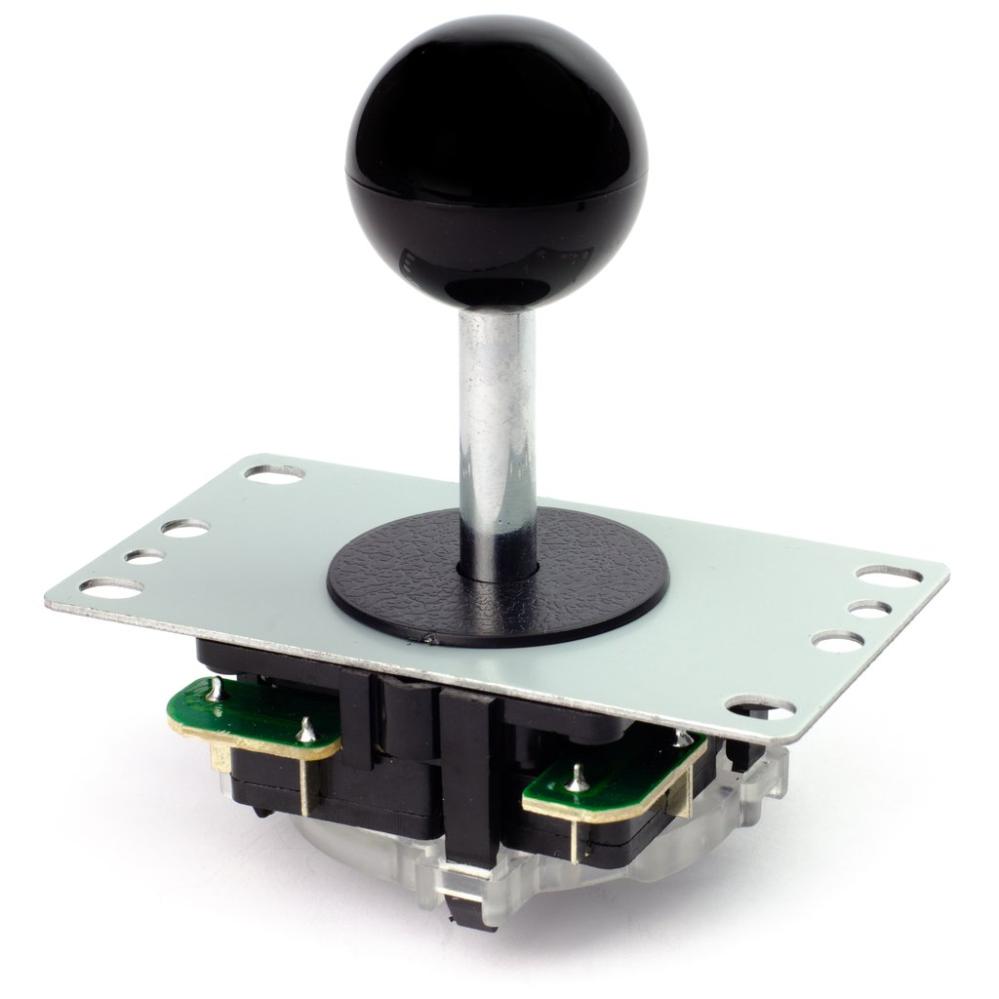

35mm black ball top
Black dust cover

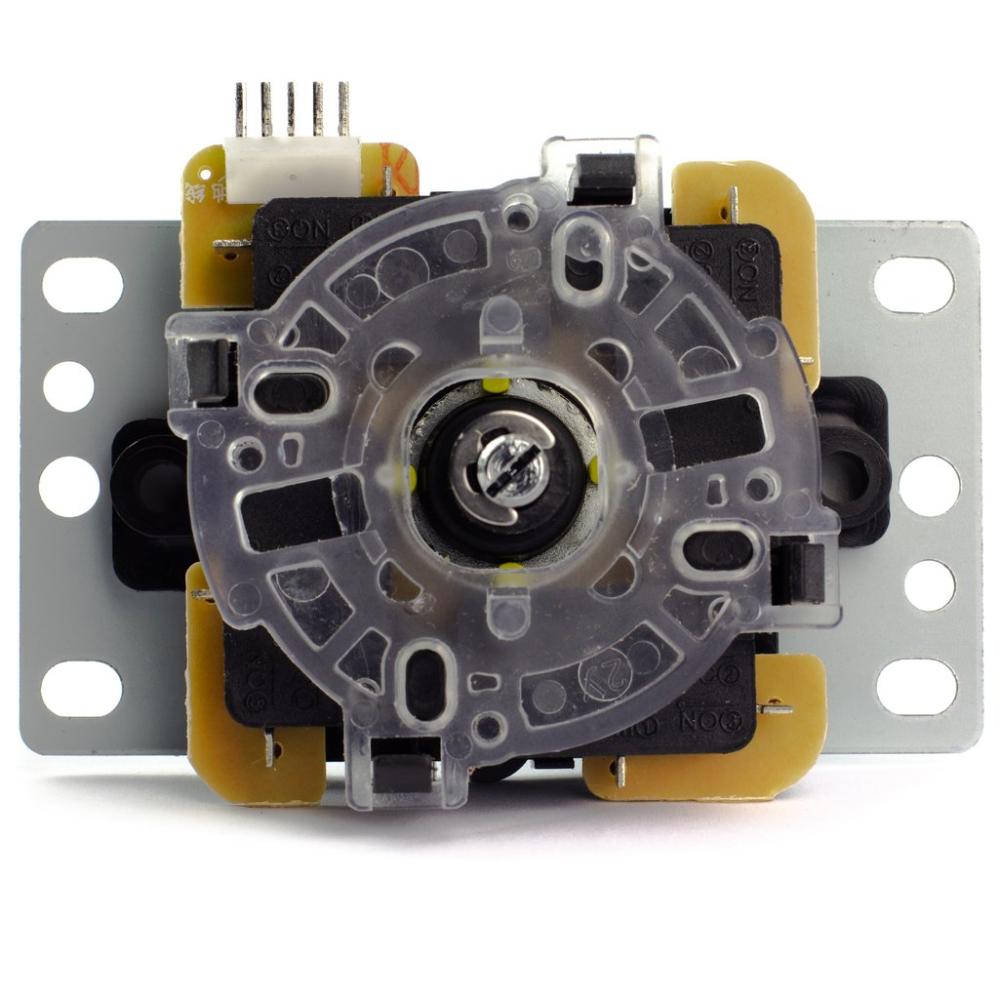

8-way square restrictor gate
9mm diameter, 36mm tall shaft 5-pin connector (compatible with JST-XH cable)
Notes
Pinout: up, down, right, left, ground (from pin closest to centre)
Overall dimensions (including ball-top): 106x70x95mm
Mounting plate dimensions: 60x95mm
Corner hole centres (5mm holes): 44x82mm
Centre hole centres (6mm holes): 85mm
