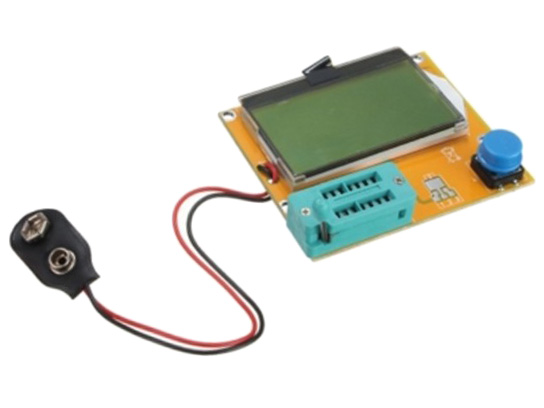

Komponenttestare LCR-T4

Behändig komponenttestare för halvledare och passiva komponenter.

Mäter dioder, zenerdioder, transistorer, motstånd, induktanser och kondensatorer.

Detekterar automatiskt komponenttyp: NPN, PNP, N-ch, P-ch, diod (även dubbel-dioder), tyristorer, motstånd, induktorer, kondensatorer mm.

Specifications:

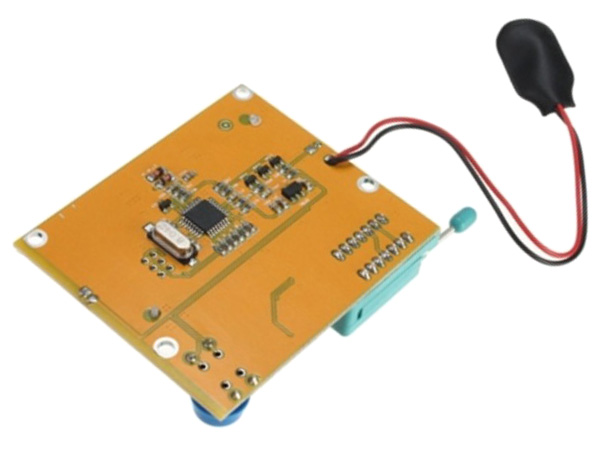

Material: PCB
Power Mode: 6F22
Display: 128 * 64 LCD backlight
Testing Speed: 2 seconds (1 minute is normal for large capacitor)
Shutdown Current: 20nA
Displayed Value: 25pf-100mF (resolution 1pF)
Inductance: 0.01mH-20H
Resistance: =2100O
Power Voltage: 9V layer-built battery / 2 li-ion batteries to form a 8.4V battery pack
Resolution of Resistance Measurement: 0.1 ohms
The Highest Measured Value: 50M ohms
Provided Testing Current: Approx. 6mA
Product Size: 7.2 x 6.25cm (L * W)
