LCD Modul 0.96" färg SPI
Art nr: 41016995
Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se
Produktbeskrivning
Produktbeskrivning

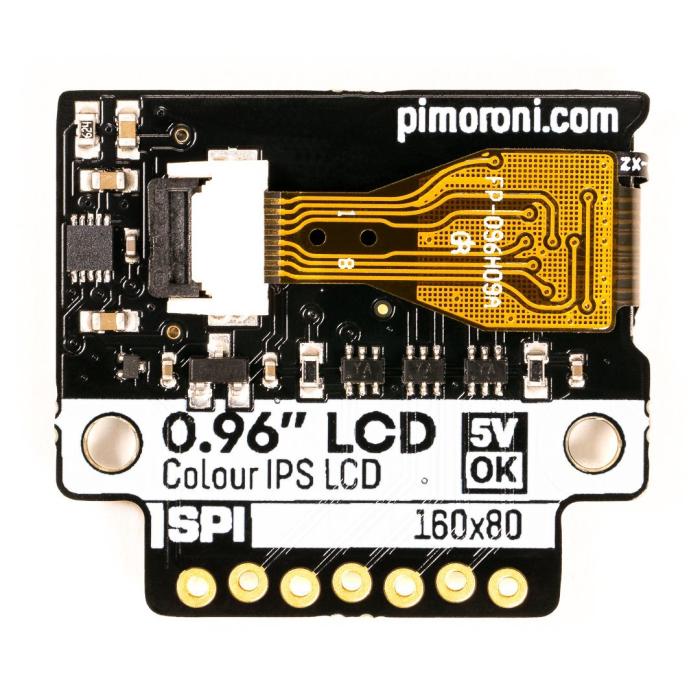

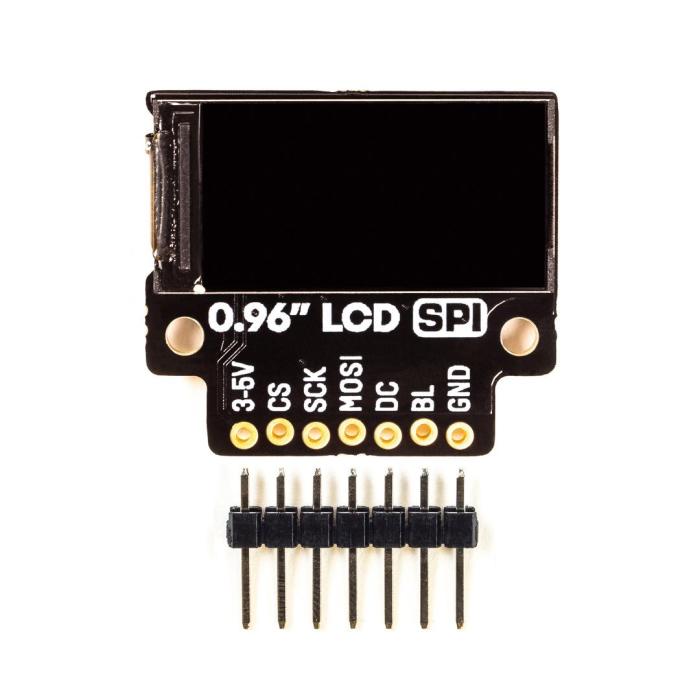

A handy lil' LCD to add readouts to your projects. This 0.96" SPI LCD has a 2:1 widescreen aspect ratio, has great viewing angles (IPS), and works with Raspberry Pi or Arduino.
The display is great for displaying tidbits of information like timers, clocks, sensor readings, and more. Why not use it to display the IP address of a headless Raspberry Pi, so that you don't have to connect a full display or fiddle around with nmap?
Despite being so diminutive, this LCD is a gorgeous little display. It's bright, has great resolution and, because it's an IPS panel, it has wide viewing angles and looks great whichever way you look at it. It's driven by SPI and you should be able to run it at up to ~50FPS, although we've found that anywhere from 10FPS looks good for most uses.
Features:
* 0.96" colour LCD (160x80 pixels)
* SPI interface
* 3.3V or 5V compatible
* Reverse polarity protection
* Compatible with all models of Raspberry Pi and Arduino
* Python library
Display specifications:
* 160x80 pixels (~190 PPI)
* 10.8x21.7mm active area
* 400cd/m2 luminance
* 800:1 contrast ratio
* 160° viewing angle (horizontal and vertical)
* ST7735S driver chip
The display is great for displaying tidbits of information like timers, clocks, sensor readings, and more. Why not use it to display the IP address of a headless Raspberry Pi, so that you don't have to connect a full display or fiddle around with nmap?
Despite being so diminutive, this LCD is a gorgeous little display. It's bright, has great resolution and, because it's an IPS panel, it has wide viewing angles and looks great whichever way you look at it. It's driven by SPI and you should be able to run it at up to ~50FPS, although we've found that anywhere from 10FPS looks good for most uses.
Features:
* 0.96" colour LCD (160x80 pixels)
* SPI interface
* 3.3V or 5V compatible
* Reverse polarity protection
* Compatible with all models of Raspberry Pi and Arduino
* Python library
Display specifications:
* 160x80 pixels (~190 PPI)
* 10.8x21.7mm active area
* 400cd/m2 luminance
* 800:1 contrast ratio
* 160° viewing angle (horizontal and vertical)
* ST7735S driver chip
