ITDB02 is a TFT LCD Screen Module Series, not just a LCD break but includes the Touch , SD card and Flash design. So it's a powerful extension dispaly module for your project.

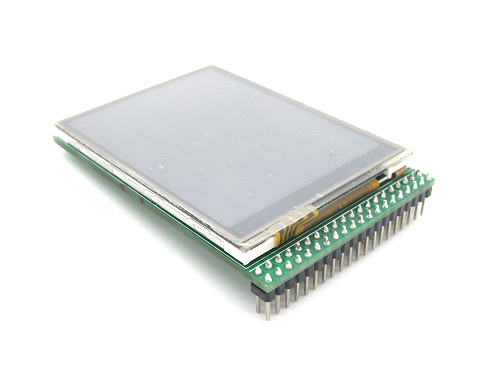

ITDB02-2.8 module is a 65K color , 240*320 (resolution), 2.8 inch TFT LCD screen. The LCD has a wide viewing angle , the contrast is also very suitable.
ITDB02-2.8 uses the ILI9325DS controller , it support 8bit data interface , and easy to be drived by many MCU like STM32 ,AVR and 8051.

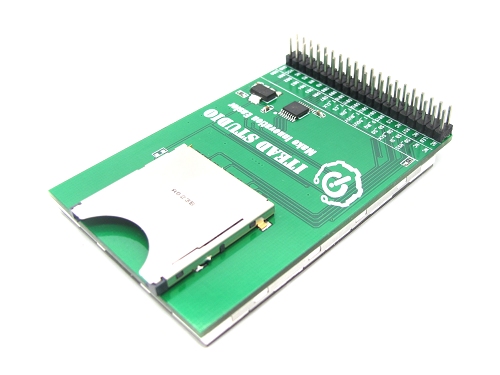

ITDB02-2.8 is designed with a touch controller in it . The touch IC is TSC2046, and touch interface is included in the 40 pins breakout. Another useful extension in the ITDB02 is the SD Card socket . It use the SPI mode to operate the SD card, the SPI interface include in the 40pins breakout.

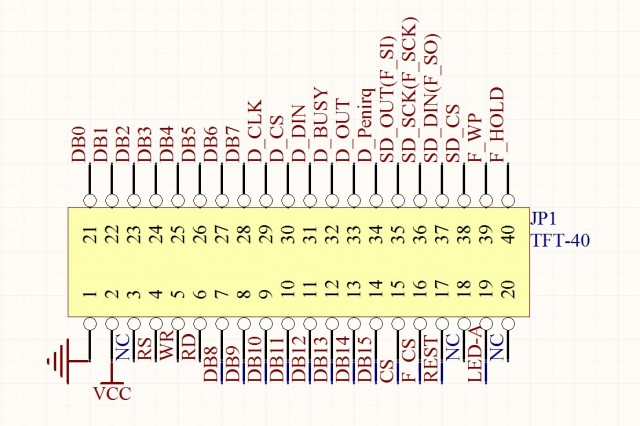

The IDTB02 layout a 40 pins interface for your project , the interface include LCD bus, SD card bus, Touch screen bus and the Flash bus.
The pins named with "D_" is the touch bus , the pins named with "SD_" is SD bus, the pins named with "F_" is Flash bus.
*ITDB02 module pins is work at 3.3v DC, if you need to connect the module with the 5v voltage I/O , you need to add the 30k and 20k resistors to reduce voltage. But for the Power supply, you should use the 5V for Vin pin.
*ITDB02-2.8 just can used the 8bit mode.
*ITDB02-2.8 is compatible with ITDB02_Graph Library
ITDB02-2.8 module is a 65K color , 240*320 (resolution), 2.8 inch TFT LCD screen. The LCD has a wide viewing angle , the contrast is also very suitable.
ITDB02-2.8 uses the ILI9325DS controller , it support 8bit data interface , and easy to be drived by many MCU like STM32 ,AVR and 8051.
ITDB02-2.8 is designed with a touch controller in it . The touch IC is TSC2046, and touch interface is included in the 40 pins breakout. Another useful extension in the ITDB02 is the SD Card socket . It use the SPI mode to operate the SD card, the SPI interface include in the 40pins breakout.
The IDTB02 layout a 40 pins interface for your project , the interface include LCD bus, SD card bus, Touch screen bus and the Flash bus.
The pins named with "D_" is the touch bus , the pins named with "SD_" is SD bus, the pins named with "F_" is Flash bus.
*ITDB02 module pins is work at 3.3v DC, if you need to connect the module with the 5v voltage I/O , you need to add the 30k and 20k resistors to reduce voltage. But for the Power supply, you should use the 5V for Vin pin.
*ITDB02-2.8 just can used the 8bit mode.
*ITDB02-2.8 is compatible with ITDB02_Graph Library
