Produktbeskrivning

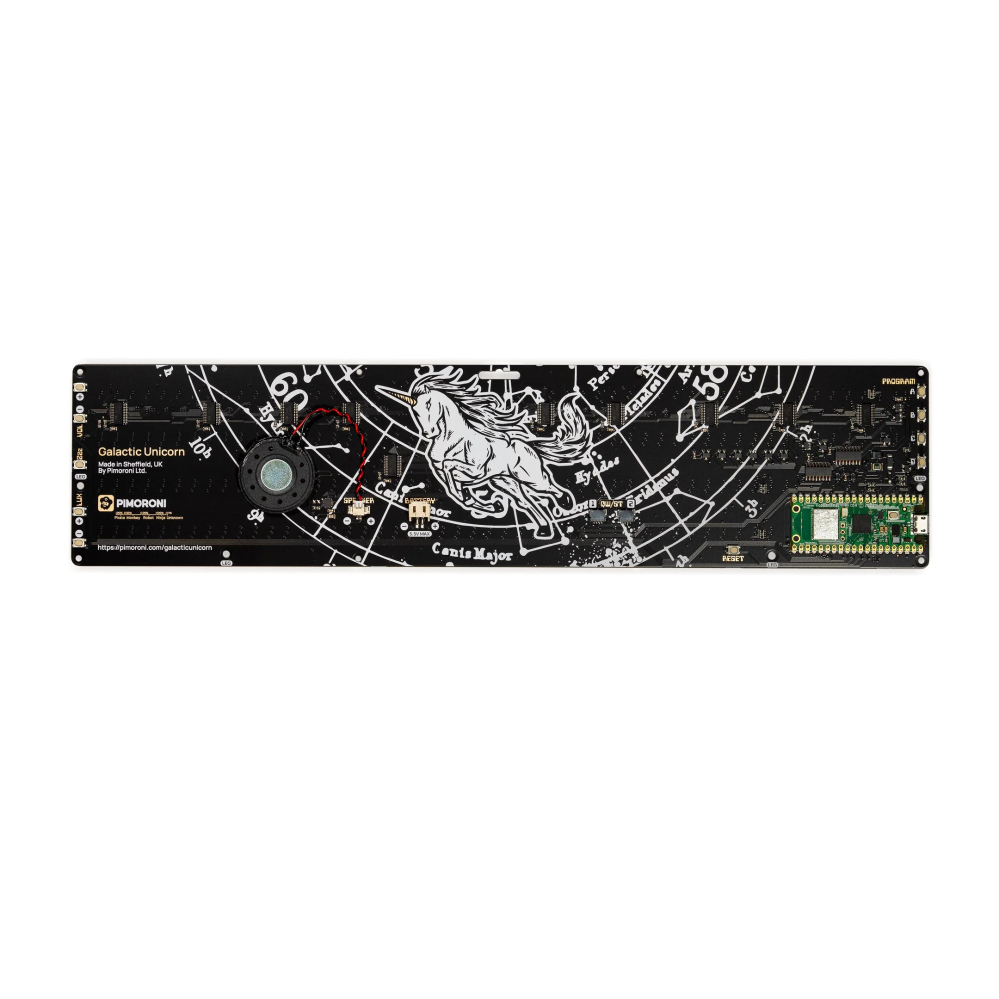

Stor RGB LED-matris med högtalare. Lysdioderna styrs av en Raspberry Pi Pico W som sitter monterad på baksidan vilket ger extremt snabb uppdateringsfrekvens (upp til 300Hz) och trådlös anslutning via WIFI.
* Raspberry Pi Pico W Aboard
- Dual Arm Cortex M0+ running at up to 133Mhz with 264kB of SRAM
- 2MB of QSPI flash supporting XiP
- Powered and programmable by USB micro-B
- 2.4GHz wireless

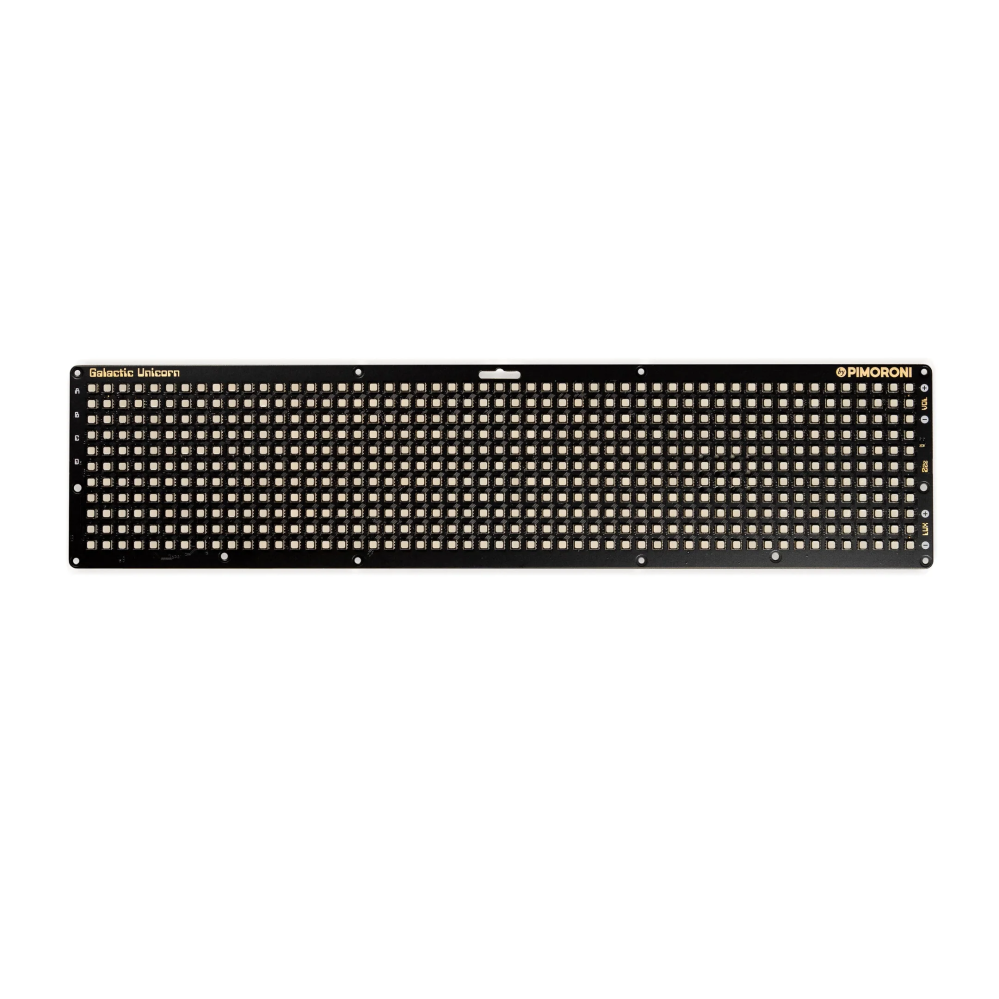

* 256/583/1024 RGB LEDs in a 16x16/53x11/32x32 grid
- 3.5mm LEDs with rounded square apertures
- 6mm LED spacing
- Driven by FM6047 constant current LED drivers
* MAX98357 3.2W I2S Mono Amplifier (with 30mm 1W speaker)
* Phototransistor for light sensing
* 9 tactile user buttons
* Reset button
* 2x Qw/ST (Qwiic/STEMMA QT) connectors
* JST-PH connector for attaching a battery (5.5V max)
* Fully assembled
* No soldering required.
* C/C++ and MicroPython libraries
* Raspberry Pi Pico W Aboard
- Dual Arm Cortex M0+ running at up to 133Mhz with 264kB of SRAM
- 2MB of QSPI flash supporting XiP
- Powered and programmable by USB micro-B
- 2.4GHz wireless
* 256/583/1024 RGB LEDs in a 16x16/53x11/32x32 grid
- 3.5mm LEDs with rounded square apertures
- 6mm LED spacing
- Driven by FM6047 constant current LED drivers
* MAX98357 3.2W I2S Mono Amplifier (with 30mm 1W speaker)
* Phototransistor for light sensing
* 9 tactile user buttons
* Reset button
* 2x Qw/ST (Qwiic/STEMMA QT) connectors
* JST-PH connector for attaching a battery (5.5V max)
* Fully assembled
* No soldering required.
* C/C++ and MicroPython libraries
