Produktbeskrivning

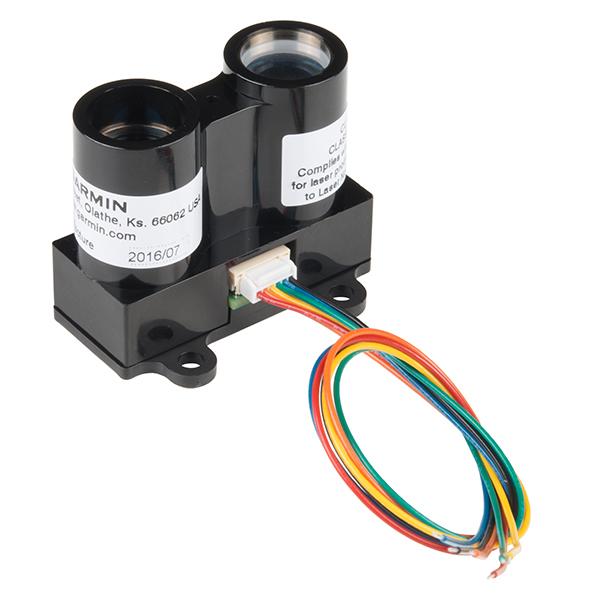

It's back! This is the LIDAR-Lite v3, a compact, high-performance optical distance measurement sensor from Garmin. When space and weight requirements are tight, the LIDAR-Lite v3 soars. The LIDAR-Lite v3 is the ideal solution for drone, robot or unmanned vehicle applications.
This easy-to-use 40-meter laser-based optical ranging sensor has all the core features that made the LIDAR-Lite v2 so popular. Small in form and light in weight with low power consumption of less than 130mA during an acquisition. And it's user-configurable so you can adjust between accuracy, operating range and measurement time.
Each LIDAR-Lite v3 features an edge-emitting, 905nm (1.3 watts), single-stripe laser transmitter, 4 m Radian x 2 m Radian beam divergence, and an optical aperture of 12.5mm. The third version of the LIDAR-Lite still operates at 5V DC with a current consumption rate of <100mA at continuous operation. On top of everything else, the LIDAR-Lite is user-configurable, allowing adjustment between accuracy, operating range and measurement time. It can be interfaced via I2C or PWM.
Note: The LIDAR-Lite v3 is designated as Class 1 during all procedures of operation. However, operating the sensor without its optics or housing or making modifications to the housing can result in direct exposure to laser radiation and the risk of permanent eye damage. Direct eye contact should be avoided, and under no circumstances should you ever stare straight into the emitter.
Dimensions: 20 x 48 x 40 mm (0.8 x 1.9 x 1.6 inches)
Features:
Range: 0-40m Laser Emitter
Accuracy: +/- 2.5cm at distances greater than 1m
Power: 4.75-5V DC; 6V Max
Current Consumption: 105ma idle; 130ma continuous
Rep Rate: 1-500Hz
Laser Wave Length/Peak Power: 905nm/1.3 watts
Beam Divergence: 4 m Radian x 2 m Radian
Optical Aperture: 12.5mm
Interface: I2C or PWM
