Produktbeskrivning
LM1875 är en monolitisk effektförstärkare som erbjuder låg distortion och hög ljudkvalitet för konsumentapplikationer. LM1875 levererar 20 watt i en 4 eller 8 ohms belastning vid +/-25V matningsspänning.

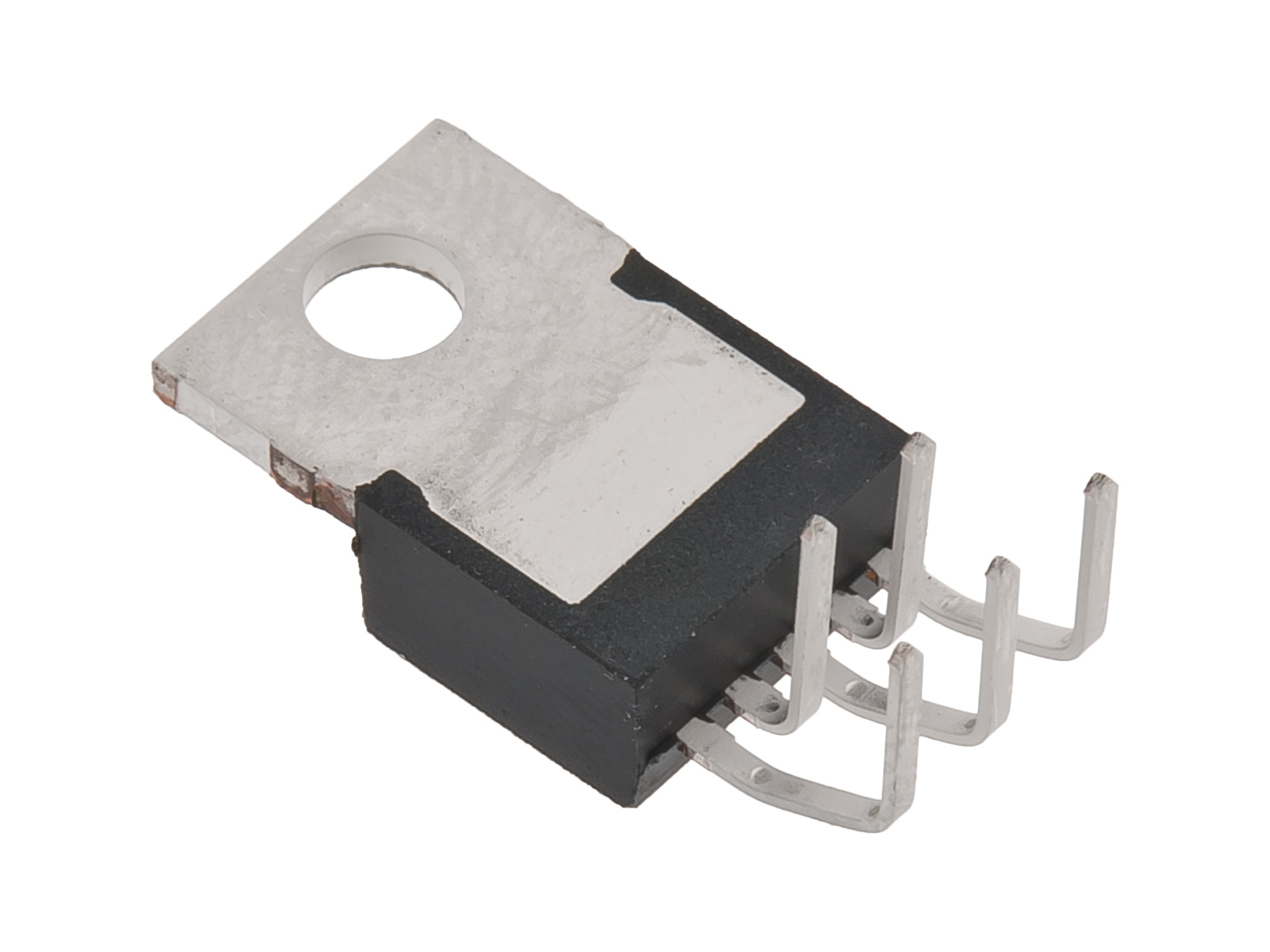

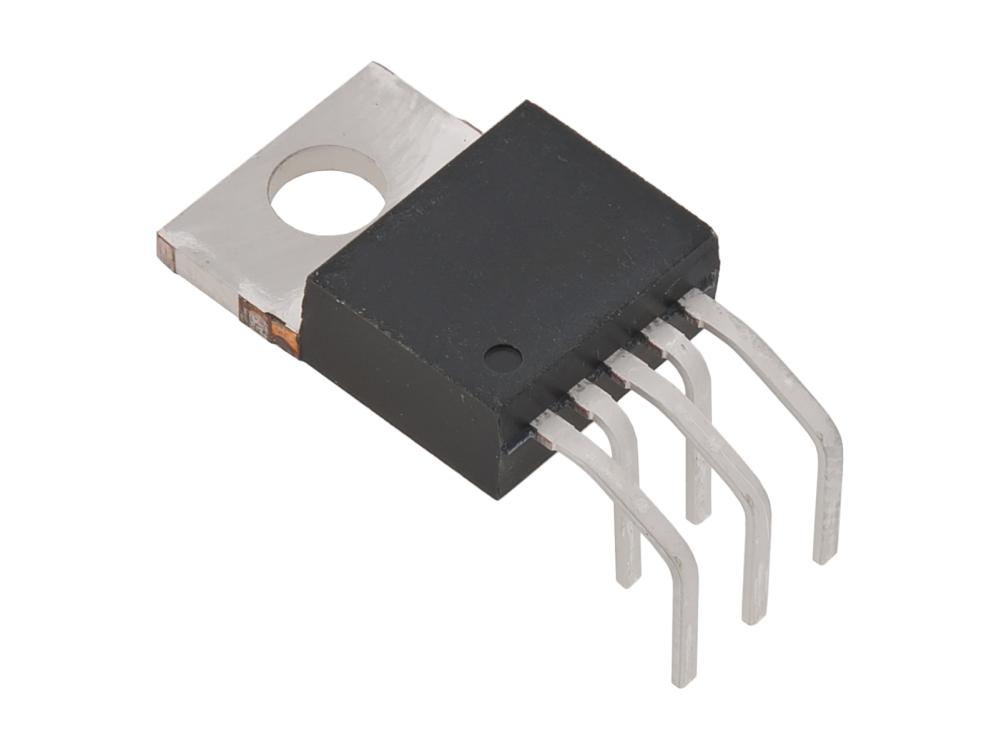

Features * Up to 30 watts output power * Avo typically 90 dB * Low distortion: 0.015%, 1 kHz, 20 W * Wide power bandwidth: 70 kHz * Protection for AC and DC short circuits to ground * Thermal protection with parole circuit * High current capability: 4A * Wide supply range 16V-60V * Internal output protection diodes * 94 dB ripple rejection * Plastic power package TO-220
