Produktbeskrivning

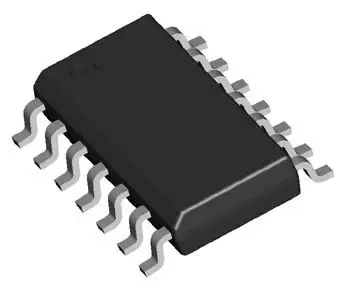

Quad Operational Amplifier
The LM324A consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range. Operation from split power supplies is also possible so long as the difference between the two supplies is 3V to 32V. Application areas include transducer amplifier, DC gain blocks and all the conventional OP Amp circuits which now can be easily implemented in single power supply systems.
Features
* Internally Frequency Compensated for Unity Gain
* Large DC Voltage Gain: 100dB
* Wide Power Supply Range: 3V - 32V (or +/-1.5 - +/-16V)
* Input Common Mode Voltage Range Includes Ground
* Large Output Voltage Swing: 0V to VCC-1.5V
* Power Drain Suitable for Battery Operation
The LM324A consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range. Operation from split power supplies is also possible so long as the difference between the two supplies is 3V to 32V. Application areas include transducer amplifier, DC gain blocks and all the conventional OP Amp circuits which now can be easily implemented in single power supply systems.
Features
* Internally Frequency Compensated for Unity Gain
* Large DC Voltage Gain: 100dB
* Wide Power Supply Range: 3V - 32V (or +/-1.5 - +/-16V)
* Input Common Mode Voltage Range Includes Ground
* Large Output Voltage Swing: 0V to VCC-1.5V
* Power Drain Suitable for Battery Operation
