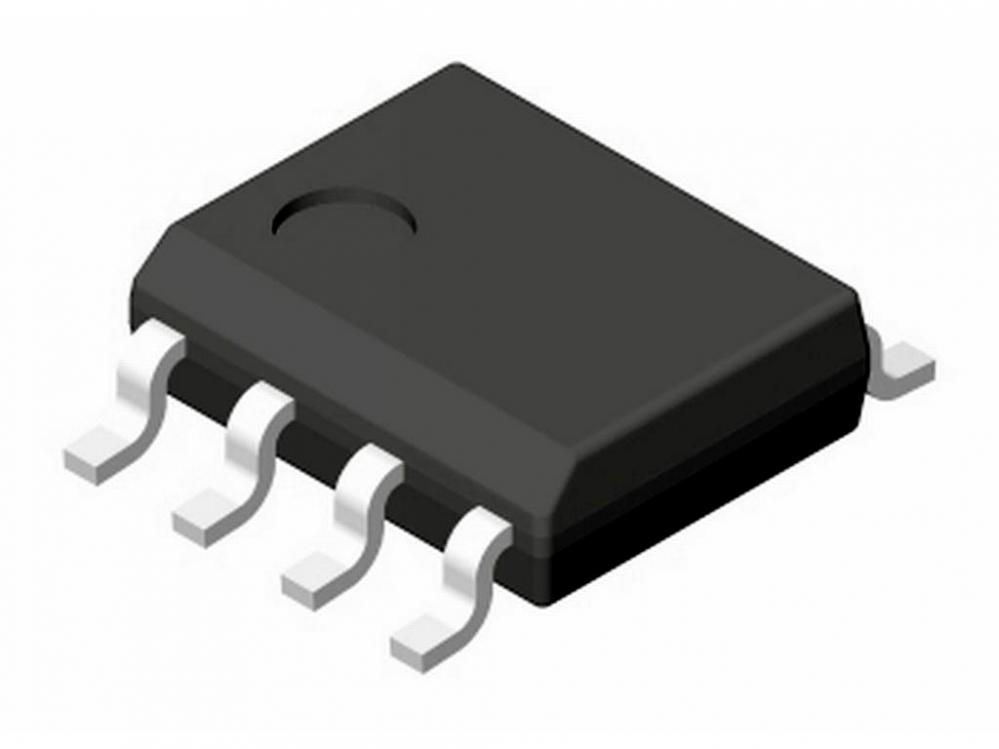

Dual High Performance, High Fidelity Audio Operational Amplifier
The LM4562 is part of the ultra-low distortion, low noise, high slew rate operational amplifier series optimized and fully specified for high performance, high fidelity applications. Combining advanced leading-edge process technology with state-of-the-art circuit design, the LM4562 audio operational amplifiers deliver superior audio signal amplification for outstanding audio performance. The LM4562 combines extremely low voltage noise density (2.7nV/vHz) with vanishingly low THD+N (0.00003%) to easily satisfy the most demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LM4562 has a high slew rate of +/-20V/µs and an output current capability of +/-26mA. Further, dynamic range is maximized by an output stage that drives 2kOhm loads to within 1V of either power supply voltage and to within 1.4V when driving 600ohm loads. The LM4562's outstanding CMRR (120dB), PSRR (120dB), and Vos (0.1mV) give the amplifier excellent operational amplifier DC performance. The LM4562 has a wide supply range of +/-2.5V to +/-17V. Over this supply range the LM4562's input circuitry maintains excellent common-mode and power supply rejection, as well as maintaining its low input bias current. The LM4562 is unity gain stable. This Audio Operational Amplifier achieves outstanding AC performance while driving complex loads with values as high as 100pF.
Features
* Power Supply Voltage Range ±2.5V to ±17V
* THD+N (Av = 1, Vout = 3V_RMS, fIN = 1kHz)
- @ Rload = 2kOhm: 0.00003% (typ)
- @ Rload = 600ohm: 0.00003% (typ)
* Input Noise Density 2.7nV/vHz (typ)
* Slew Rate +/-20V/us (typ)
* Gain Bandwidth Product 55MHz (typ)
* Open Loop Gain (Rload = 600ohm) 140dB (typ)
* Input Bias Current 10nA (typ)
* Input Offset Voltage 0.1mV (typ)
* DC Gain Linearity Error 0.000009%
* Easily drives 600ohm loads
* Optimized for superior audio signal fidelity
* Output short circuit protection
* PSRR and CMRR exceed 120dB (typ)
Applications
* Ultra high quality audio amplification
* High fidelity preamplifiers
* High fidelity multimedia
* State of the art phono pre amps
* High performance professional audio
* High fidelity equalization and crossover networks
* High performance line drivers
* High performance line receivers
* High fidelity active filters
