A output: inverting
B output: inverting

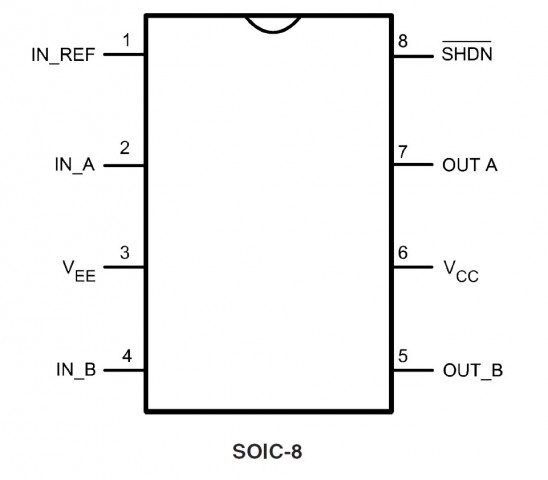

The LM5110 Dual Gate Driver replaces industry standard
gate drivers with improved peak output current and efficiency.
Each "compound" output driver stage includes MOS
and bipolar transistors operating in parallel that together sink
more than 5A peak from capacitive loads. Combining the
unique characteristics of MOS and bipolar devices reduces
drive current variation with voltage and temperature. Separate
input and output ground pins provide Negative Drive
Capability allowing the user to drive MOSFET gates with
positive and negative VGS voltages. The gate driver control
inputs are referenced to a dedicated input ground (IN_REF).
The gate driver outputs swing from VCC to the output ground
VEE which can be negative with respect to IN_REF. The
ability to hold MOSFET gates off with a negative VGS voltage
reduces losses when driving low threshold voltage
MOSFETs often used as synchronous rectifiers. When driving
with conventional positive only gate voltage, the IN_REF
and VEE pins are connected together and referenced to a
common ground. Under-voltage lockout protection and a
shutdown input pin are also provided. The drivers can be
operated in parallel with inputs and outputs connected to
double the drive current capability.
5A sink/3A source current capability
n Two channels can be connected in parallel to double the
drive current
n Independent inputs (TTL compatible)
n Fast propagation times (25 ns typical)
n Fast rise and fall times (14 ns/12 ns rise/fall with 2 nF
load)
n Dedicated input ground pin (IN_REF) for split supply or
single supply operation
n Outputs swing from VCC to VEE which can be negative
relative to input ground
n Available in dual non-inverting, dual inverting and
combination configurations
n Shutdown input provides low power mode
n Supply rail under-voltage lockout protection
n Pin-out compatible with industry standard gate drivers
