General Description
The LP3852/LP3855 series of fast ultra low-dropout linear
regulators operate from a +2.5V to +7.0V input supply. Wide
range of preset output voltage options are available. These
ultra low dropout linear regulators respond very quickly to
step changes in load, which makes them suitable for low
voltage microprocessor applications. The LP3852/LP3855
are developed on a CMOS process which allows low quiescent current operation independent of output load current.
This CMOS process also allows the LP3852/LP3855 to operate under extremely low dropout conditions.
Dropout Voltage: Ultra low dropout voltage; typically 24mV
at 150mA load current and 240mV at 1.5A load current.
Ground Pin Current: Typically 4mA at 1.5A load current.
Shutdown Mode: Typically 10nA quiescent current when
the shutdown pin is pulled low.
Error Flag: Error flag goes low when the output voltage
drops 10% below nominal value.
SENSE: Sense pin improves regulation at remote loads.
Precision Output Voltage: Multiple output voltage options
are available ranging from 1.8V to 5.0V with a guaranteed
accuracy of ±1.5% at room temperature, and ±3.0% over all
conditions (varying line, load, and temperature).
Features
n Ultra low dropout voltage
n Stable with selected ceramic capacitors
n Low ground pin current
n Load regulation of 0.06%
n 10nA quiescent current in shutdown mode
n Guaranteed output current of 1.5A DC

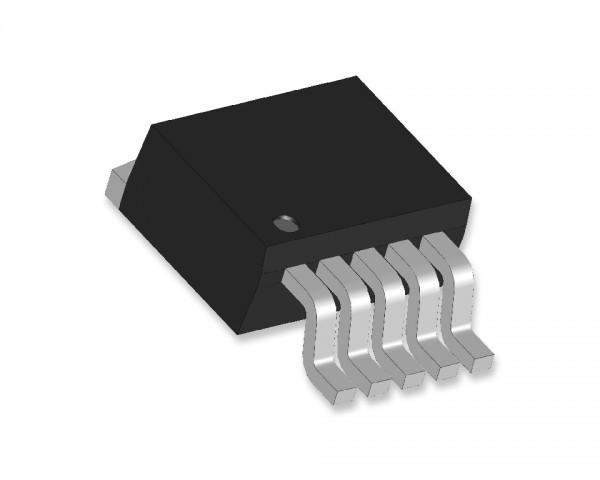

n Available in TO-263, TO-220 and SOT-223 packages
n Output voltage accuracy ± 1.5%
n Error flag indicates output status
n Sense option improves load regulation
n Overtemperature/overcurrent protection
n -40°C to +125°C junction temperature range
Applications
n Microprocessor power supplies
n GTL, GTL+, BTL, and SSTL bus terminators
n Power supplies for DSPs
n SCSI terminator
n Post regulators
n High efficiency linear regulators
n Battery chargers
n Other battery powered applications
