Produktbeskrivning
General Description
The LP3873/LP3876 series of fast ultra low-dropout linear
regulators operate from a +2.5V to +7.0V input supply. Wide
range of preset output voltage options are available. These
ultra low dropout linear regulators respond very quickly to
step changes in load, which makes them suitable for low
voltage microprocessor applications. The LP3873/LP3876
are developed on a CMOS process which allows low quiescent current operation independent of output load current.
This CMOS process also allows the LP3873/LP3876 to operate under extremely low dropout conditions.
Dropout Voltage: Ultra low dropout voltage; typically 80mV
at 300mA load current and 800mV at 3A load current.
Ground Pin Current: Typically 6mA at 3A load current.
Shutdown Mode: Typically 1µA quiescent current when the
shutdown pin is pulled low.
Error Flag: Error flag goes low when the output voltage
drops 10% below nominal value.
SENSE: Sense pin improves regulation at remote loads.
Precision Output Voltage: Multiple output voltage options
are available ranging from 1.8V to 5.0V with a guaranteed
accuracy of ±1.5% at room temperature, and ±3.0% over all
conditions (varying line, load, and temperature).
Features
n Ultra low dropout voltage
n Low ground pin current
n Load regulation of 0.08%
n 1µA quiescent current in shutdown mode
n Guaranteed output current of 3A DC

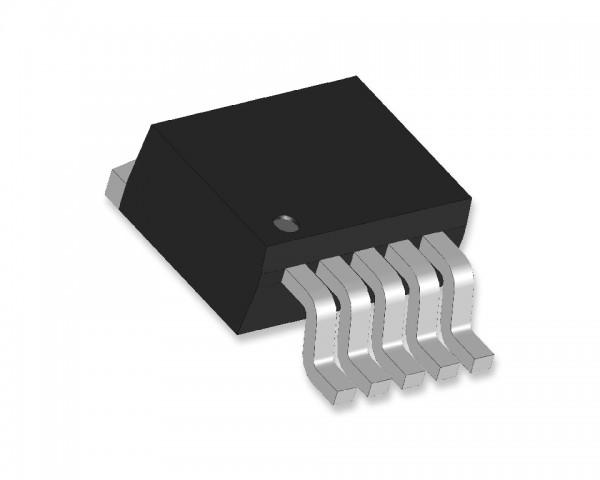

n Available in TO-263 and TO-220 packages
n Output voltage accuracy ± 1.5%
n Error flag indicates output status
n Sense option improves load regulation
n Minimum output capacitor requirements
n Overtemperature/overcurrent protection
n -40°C to +125°C junction temperature range
Applications
n Microprocessor power supplies
n GTL, GTL+, BTL, and SSTL bus terminators
n Power supplies for DSPs
n SCSI terminator
n Post regulators
n High efficiency linear regulators
n Battery chargers
n Other battery powered applications
