Produktbeskrivning

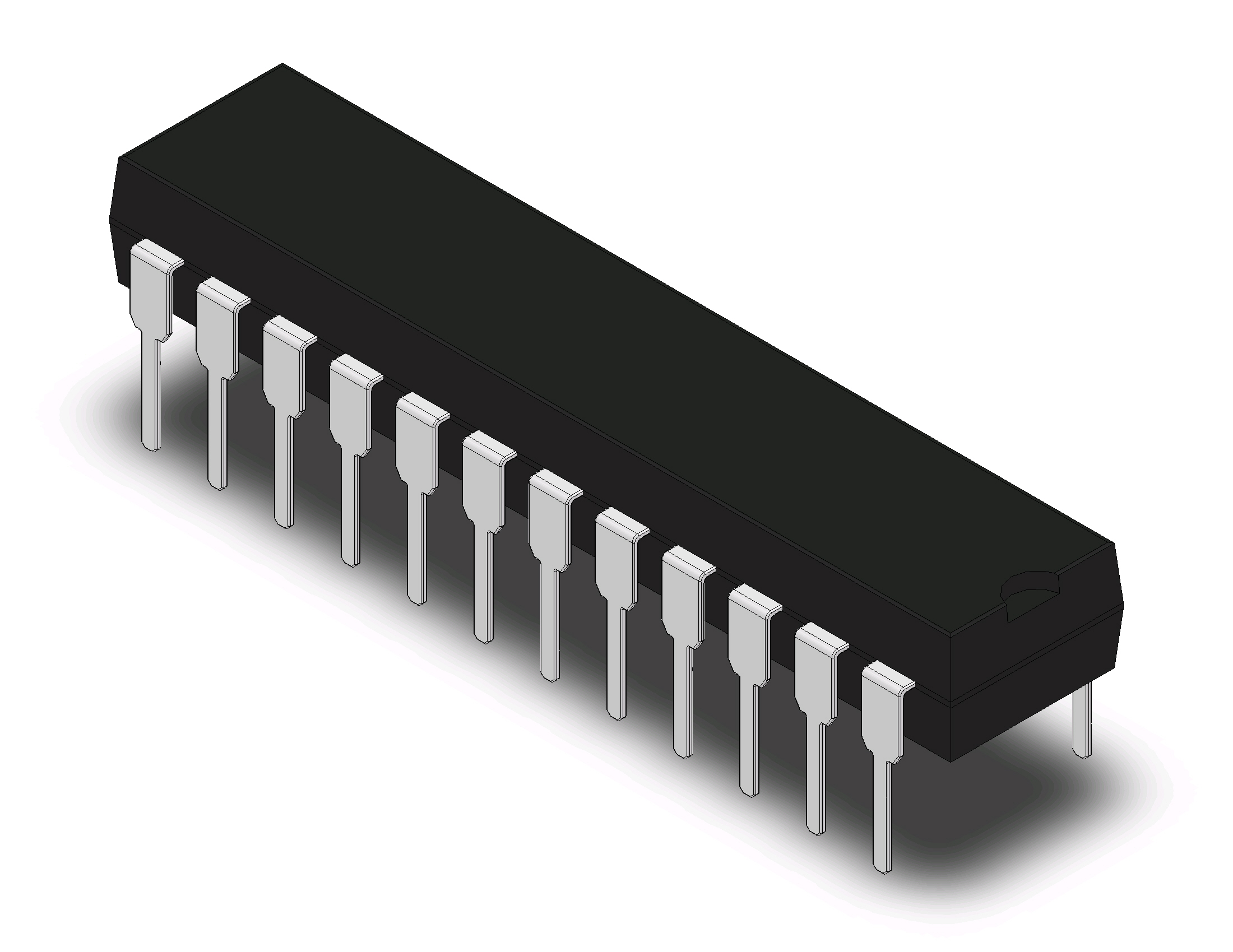

The LTC1450 is a complete single supply, railto-rail voltage output, 12-bit digital-to-analog converter (DAC) in a 24-pin PDIP package. It includes an output buffer amplifier, reference and a double buffered parallel digital interface.
Features
* Guaranteed Monotonic
* Buffered True Rail-to-Rail Voltage Output
* 12-Bit Resolution
* 5V Operation (LTC1450) ICC: 400µA Typ
* Parallel 12-Bit or 8 + 4-Bit Double Buffered Digital Input
* Internal Reference
* Output Buffer Configurable to Gain of 1 or 2
* Configurable as a Multiplying DAC
* Internal Power-On Reset
* Maximum DNL Error: 0.5LSB
Applications
* Digital Calibration
* Industrial Process Control
* Automatic Test Equipment
* Arbitrary Function Generators
* Battery-Powered Data Conversion Products
* Feedback Control Loops and Gain Control
