MBUS Master för Raspberry Pi Pico

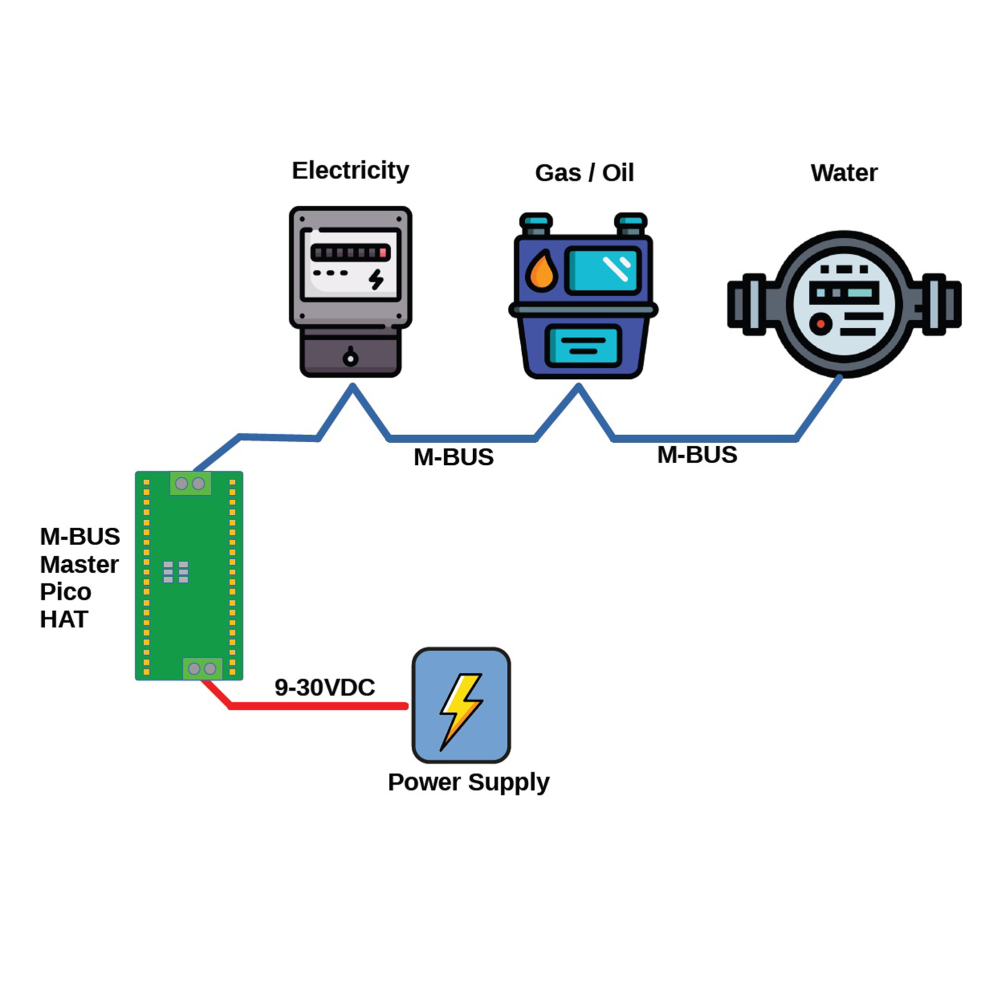

With the M-BUS Master HAT you can read consumption meters for heat, gas, oil, water etc. that have a built-in M-BUS slave interface.

Features:

* M-Bus (meter bus) Master
* powered by an external 9..30V DC voltage (36V for the MBUS will be generated internally from this voltage)
* up to 6 unit loads can be powered
* communication with Pico via UART0 or UART1
* isolated interface

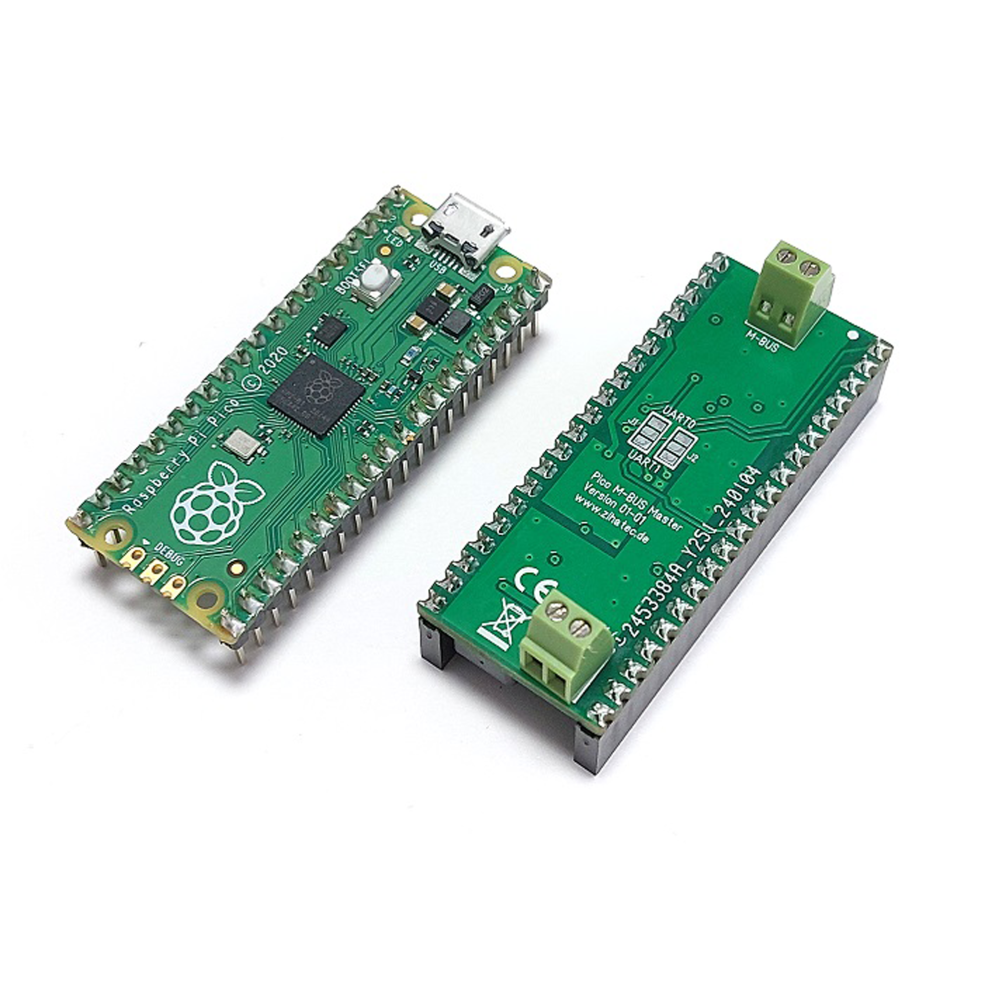

* can be combined with the Raspberry Pi Pico
