Produktbeskrivning
Wideband FM IF System

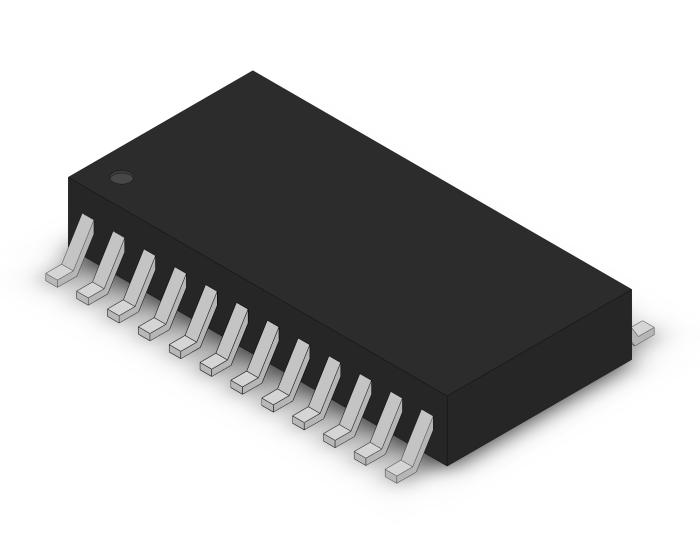

The MC13156 is a wideband FM IF subsystem targeted at high performance data and analog applications. Excellent high frequency performance is achieved at low cost using Motorola's MOSAIC 1.5 bipolar process.
Applications for the MC13156 include CT-2, wideband data links and other radio systems utilizing GMSK, FSK or FM modulation.
Features
* 2.0 to 6.0 Vdc Operation
* Typical Sensitivity at 200MHz of 2.0uV for 12dB SINAD
* RSSI Dynamic Range Typically 80dB
* High Performance Data Shaper for Enhanced CT-2 Operation
* Internal 330ohm and 1.4kohm Terminations for 10.7MHz and 455kHz Filters
* Split IF for Improved Filtering and Extended RSSI Range
* 3rd Order Intercept (Input) of -25dBm (Input Matched)
