Produktbeskrivning

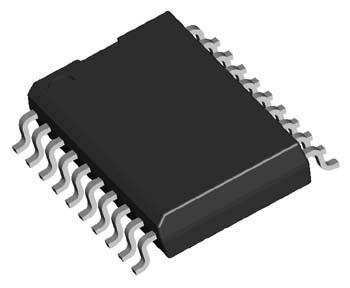

The MCP2210 device is a USB-to-SPI Master converter which enables USB connectivity in applications that have an SPI interface. The device reduces external components by integrating the USB termination resistors. The MCP2210 also has 256 bytes of integrated user EEPROM. The MCP2210 has nine general purpose input/output pins. Seven pins have alternate functions to indicate USB and communication status.
* Supports Full-Speed USB (12 Mb/s)
* Human Interface Device (HID) device
* 128-Byte Buffer to Handle Data Throughput: Bus Powered (factory default) or Self-Powered (can be selected through special USB commands)
* Uses Standard HID Drivers (built-in support on Windows® XP, Vista, 7, Linux and Mac OS®)
* Configuration Utility for Device's Power-up Configuration
* Utility for USB-SPI Communication, GPIO Manipulation and Miscellaneous Features Usage SPI Master Peripheral
* Supports all Four SPI modes (Mode 0, 1, 2, 3)
* Bit Rates from 1500 bps up to 12 Mbps
* SPI Transactions Lengths of up to 65535 Bytes Long
* Nine General Purpose I/O Pins
* 256 Bytes of User EEPROM (accessible through certain USB commands)
* Supports Full-Speed USB (12 Mb/s)
* Human Interface Device (HID) device
* 128-Byte Buffer to Handle Data Throughput: Bus Powered (factory default) or Self-Powered (can be selected through special USB commands)
* Uses Standard HID Drivers (built-in support on Windows® XP, Vista, 7, Linux and Mac OS®)
* Configuration Utility for Device's Power-up Configuration
* Utility for USB-SPI Communication, GPIO Manipulation and Miscellaneous Features Usage SPI Master Peripheral
* Supports all Four SPI modes (Mode 0, 1, 2, 3)
* Bit Rates from 1500 bps up to 12 Mbps
* SPI Transactions Lengths of up to 65535 Bytes Long
* Nine General Purpose I/O Pins
* 256 Bytes of User EEPROM (accessible through certain USB commands)
