Produktbeskrivning

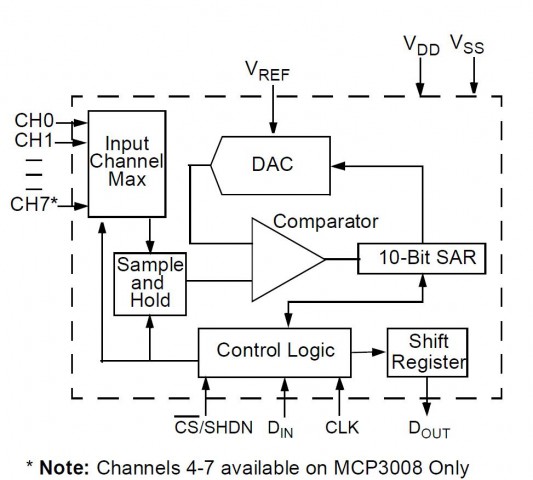

The Microchip Technology Inc. MCP3004/3008
devices are successive approximation 10-bit Analogto-Digital (A/D) converters with on-board sample and
hold circuitry. The MCP3004 is programmable to
provide two pseudo-differential input pairs or four
single-ended inputs. The MCP3008 is programmable
to provide four pseudo-differential input pairs or eight
single-ended inputs. Differential Nonlinearity (DNL)
and Integral Nonlinearity (INL) are specified at ±1 LSB.
Communication with the devices is accomplished using
a simple serial interface compatible with the SPI
protocol. The devices are capable of conversion rates
of up to 200 ksps. The MCP3004/3008 devices operate
over a broad voltage range (2.7V - 5.5V). Low-current
design permits operation with typical standby currents
of only 5 nA and typical active currents of 320 µA. The

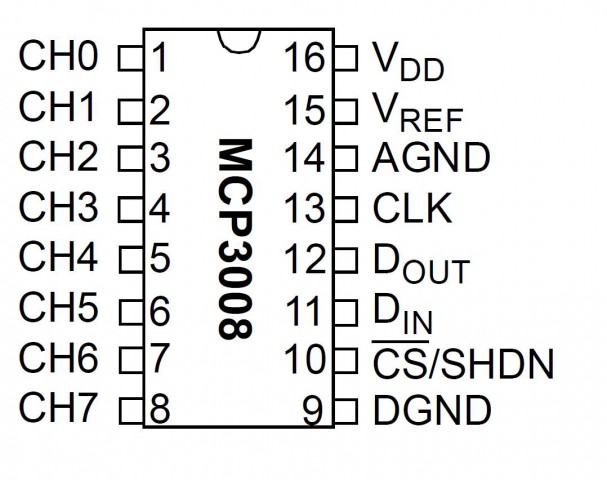

MCP3004 is offered in 14-pin PDIP, 150 mil SOIC and
TSSOP packages, while the MCP3008 is offered in 16-pin PDIP and SOIC packages.
Features
* 10-bit resolution
* ± 1 LSB max DNL
* ± 1 LSB max INL * 4 (MCP3004) or 8 (MCP3008) input channels
* Analog inputs programmable as single-ended or pseudo-differential pairs
* On-chip sample and hold
* SPI serial interface (modes 0,0 and 1,1)
* Single supply operation: 2.7V - 5.5V
* 200 ksps max. sampling rate at VDD = 5V
* 75 ksps max. sampling rate at VDD = 2.7V
* Low power CMOS technology
* 5 nA typical standby current, 2 µA max.
* 500 µA max. active current at 5V
* Industrial temp range: -40°C to +85°C * Available in PDIP, SOIC and TSSOP packages
