Produktbeskrivning

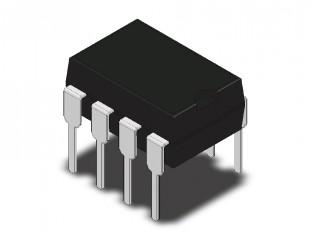

MCP4821 12-bit DAC med 1 utgång, intern referens
Features
* MCP4821: 8-Bit Voltage Output DAC
* Rail-to-Rail Output
* SPI Interface with 20 MHz Clock Support
* Simultaneous Latching of the DAC Output with LDAC Pin
* Fast Settling Time of 4.5 µs
* Selectable Unity or 2x Gain Output
* 2.048V Internal Voltage Reference
* 50 ppm/°C VREF Temperature Coefficient
* 2.7V to 5.5V Single-Supply Operation
* Extended Temperature Range: -40°C to +125°C
Features
* MCP4821: 8-Bit Voltage Output DAC
* Rail-to-Rail Output
* SPI Interface with 20 MHz Clock Support
* Simultaneous Latching of the DAC Output with LDAC Pin
* Fast Settling Time of 4.5 µs
* Selectable Unity or 2x Gain Output
* 2.048V Internal Voltage Reference
* 50 ppm/°C VREF Temperature Coefficient
* 2.7V to 5.5V Single-Supply Operation
* Extended Temperature Range: -40°C to +125°C
