Produktbeskrivning

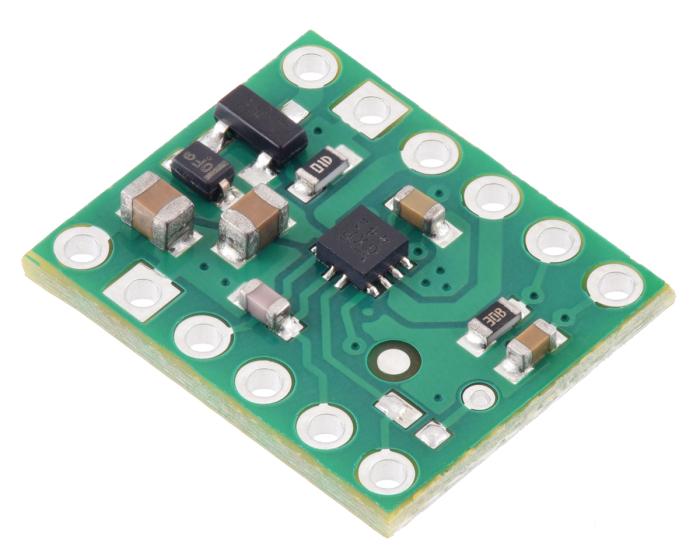

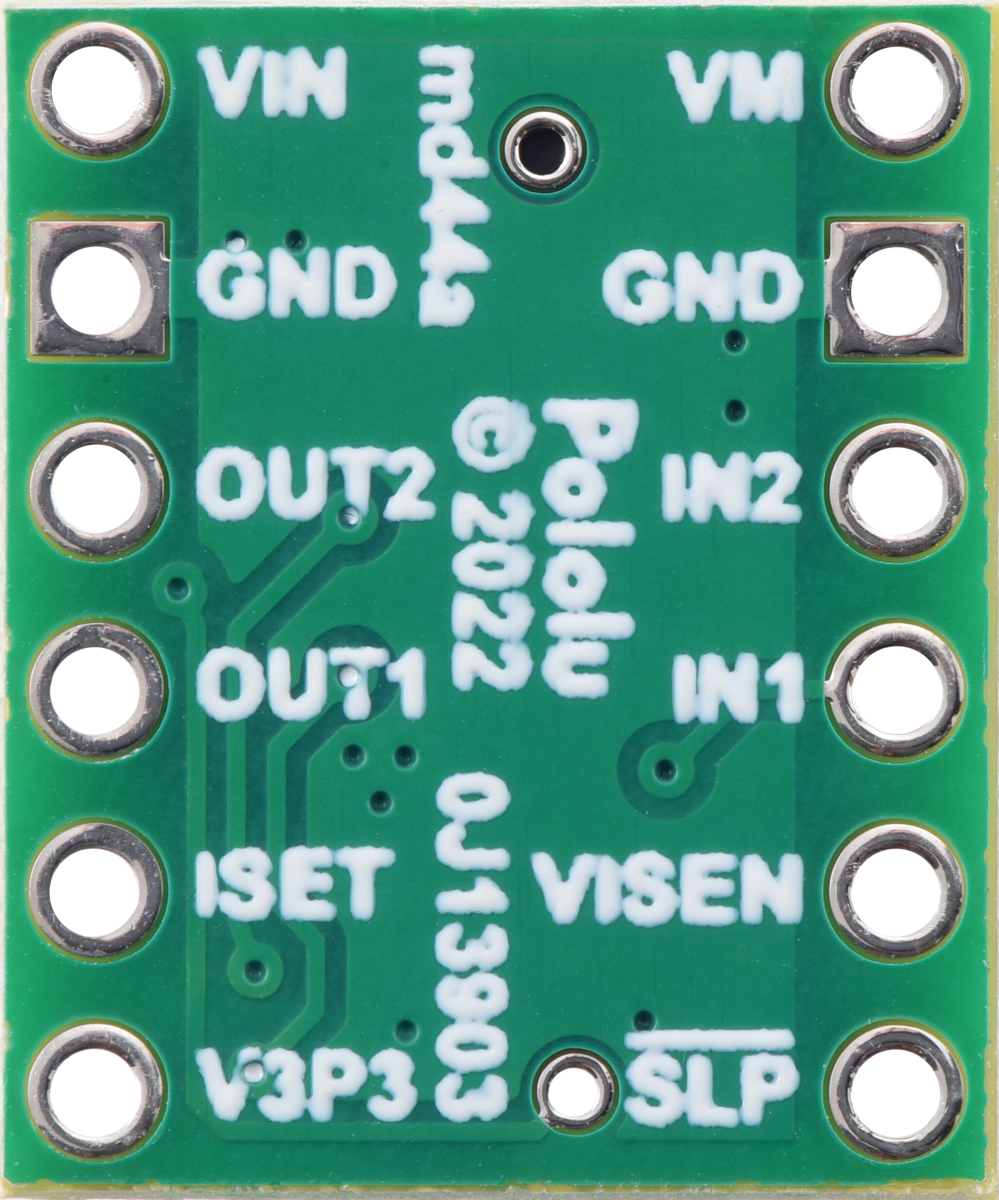

The MP6550 from Monolithic Power Systems (MPS) is an H-bridge motor driver IC that can be used for bidirectional control of one brushed DC motor at 1.8 V to 22 V. It can supply up to about 1.7 A continuously and features configurable current sensing and current limiting.

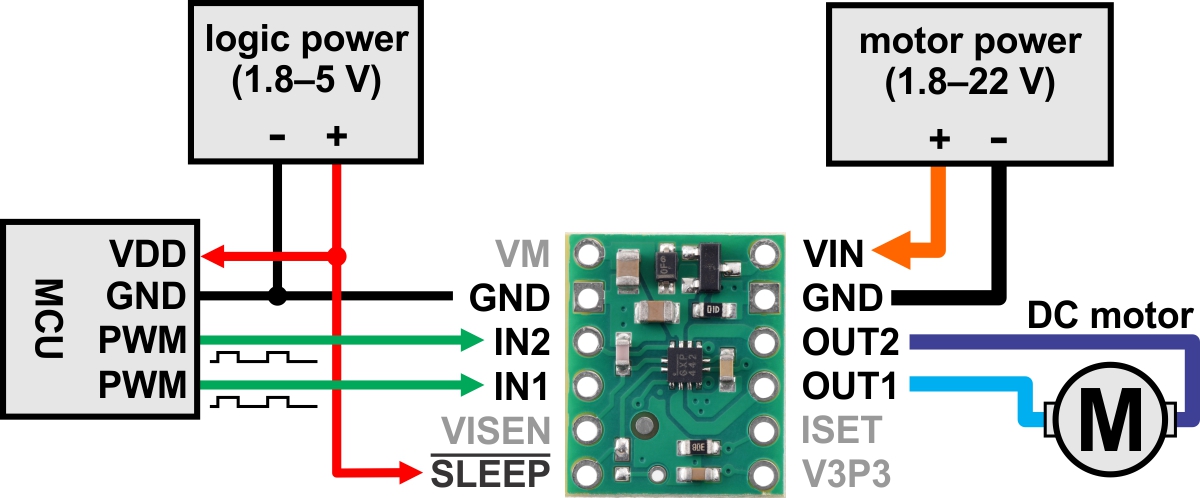

* H-bridge motor driver: can drive one DC motor
* Motor supply voltage: 1.8 V to 22 V
* Logic supply voltage: 1.8 V to 5 V
* Output current: up to 1.7 A continuous; operation at low motor and logic supply voltages reduces the maximum continuous output current
* Current control limits peak current to 2.5 A by default (this limit can be adjusted)
* Under-voltage lockout and protection against over-current and over-temperature
* Carrier board adds reverse-voltage protection up to 20 V

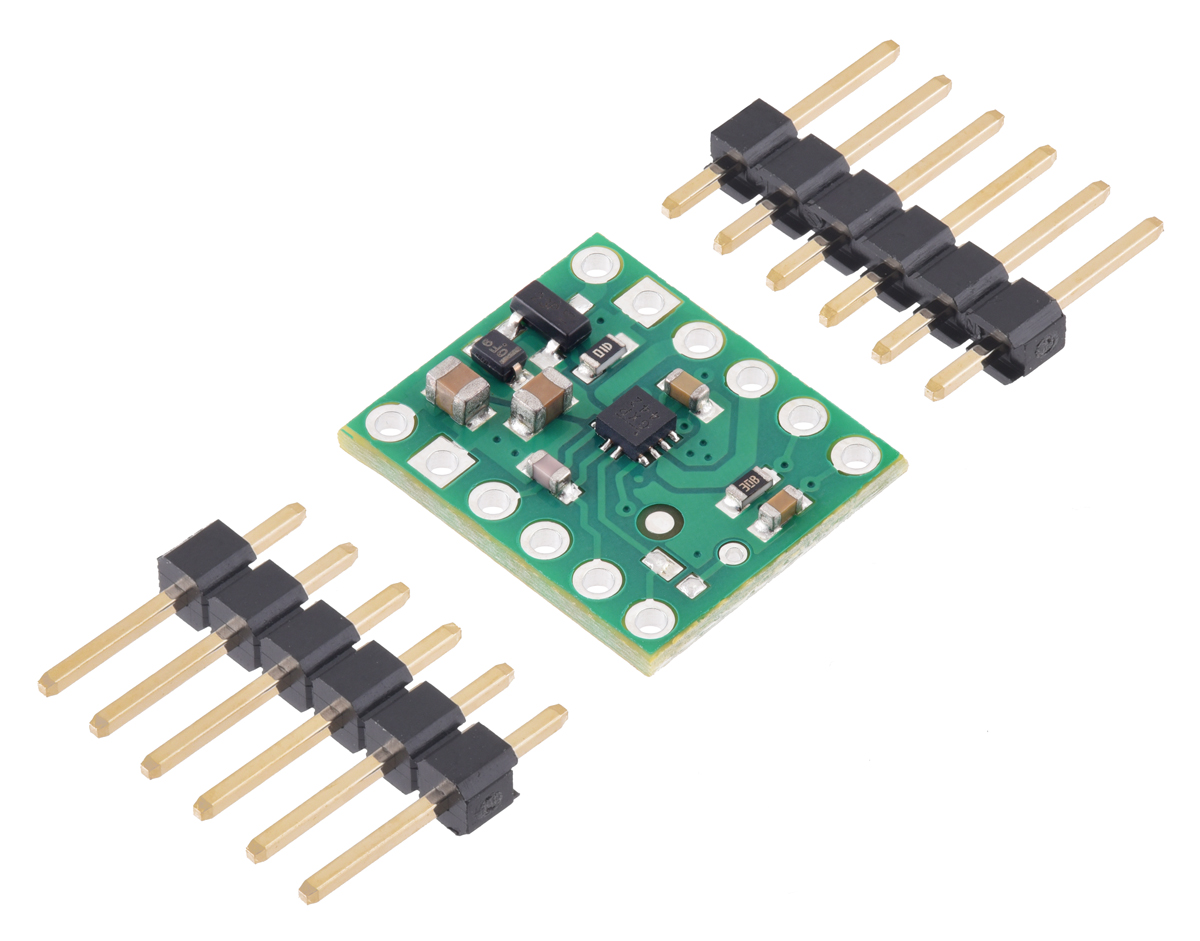

* Compact size (0.5"×0.6")
