Produktbeskrivning

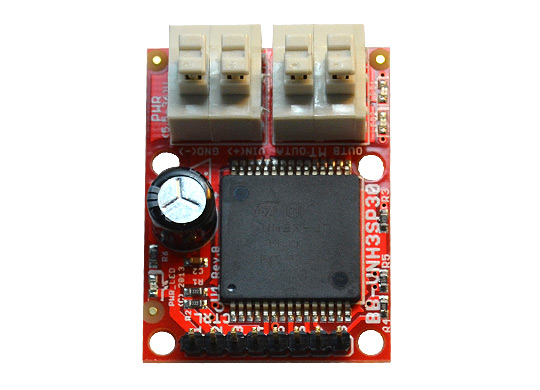

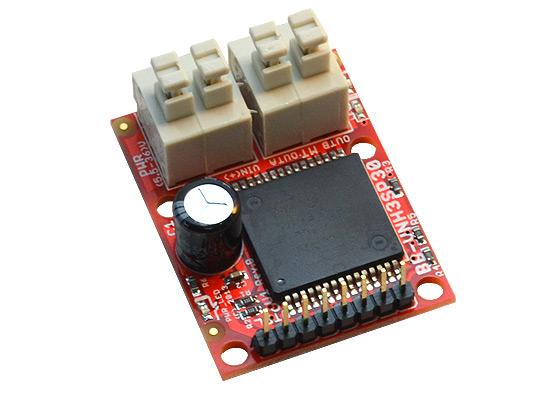

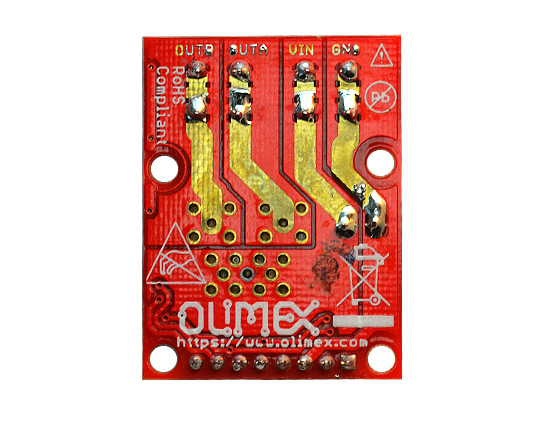

VNH3SP30 is full bridge driver with up to 30A and 36V working voltage. It is good to drive Gear Robot motors with reversal function. STATUS LEDs visualize power supply and driver direction. The power connectors are spring type for quick connect disconnect. Inductive load protection diodes are included.
Up to 30A loads
5.5-36VDC power supply
STATUS PWR LED
STATUS direction LEDs
Can work with 5V Arduino boards
Up to 30A loads
5.5-36VDC power supply
STATUS PWR LED
STATUS direction LEDs
Can work with 5V Arduino boards
