Produktbeskrivning

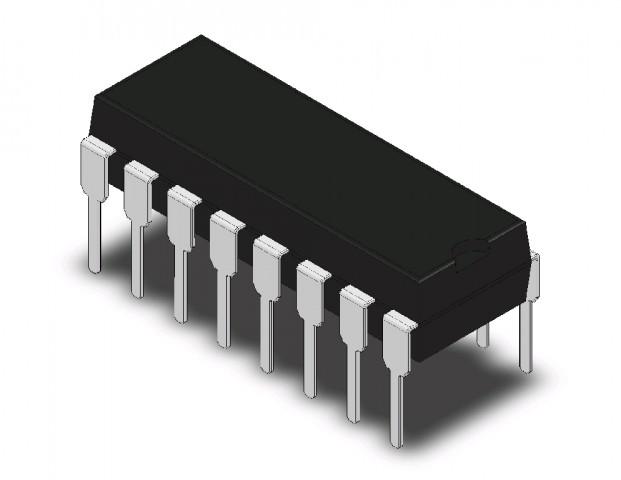

Remote 8-bit I/O expander for I2C-bus
The device consists of an 8-bit quasi-bidirectional port and an I2C-bus interface. The PCF8574 has a low current consumption and includes latched outputs with high current drive capability for directly driving LEDs. It also possesses an interrupt line (INT) which can be connected to the interrupt logic of the microcontroller. By sending an interrupt signal on this line, the remote I/O can inform the microcontroller if there is incoming data on its ports without having to communicate via the I2C-bus. This means that the PCF8574 can remain a simple slave device.
Features
* Operating supply voltage 2.5 to 6 V
* Low standby current consumption of 10 µA maximum
* I2C-bus to parallel port expander
* Open-drain interrupt output
* 8-bit remote I/O port for the I2C-bus
* Compatible with most microcontrollers
* Latched outputs with high current drive capability for directly driving LEDs
* Address by 3 hardware address pins for use of up to 8 devices (up to 16 with PCF8574A)
