Produktbeskrivning

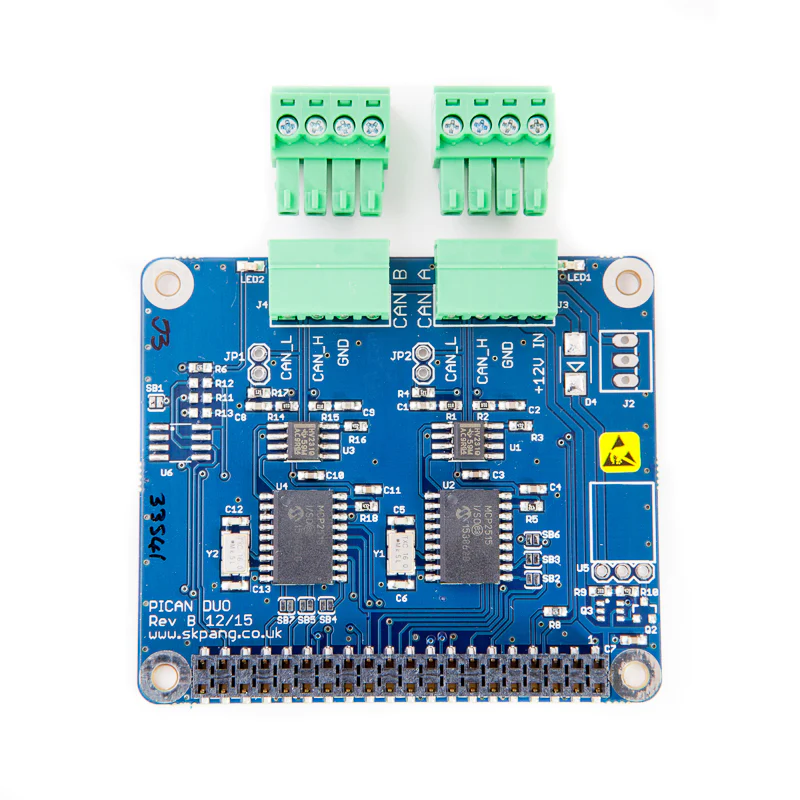

Kort som ger två oberoende CAN-bus anslutningar till Raspberry pi, med Microchip PCP2515 CAN controllern och 2551 transceiver. Ansluts med D-sub 9 eller skruvplint.
Kompatibel med Raspberry pi 2/3/4
Lättinstallerad SocketCAN drivrutin, kan programmeras i C eller Python.
Monteringsskruvar (M2.5) ingår ej.
Features:
* CAN v2.0B at 1 Mb/s
* High speed SPI Interface (10 MHz)
* Standard and extended data and remote frames
* CAN connection via standard 9-way sub-D connector or screw terminal
* Compatible with OBDII cable
* Solder bridge to set different configuration for DB9 connector
* 120O terminator ready
* Serial LCD ready
* LED indicator
* Foot print for two mini push buttons
* Four fixing holes, comply with Pi Hat standard
* SocketCAN driver, appears as can0 to application
* Interrupt RX on GPIO25
