Produktbeskrivning

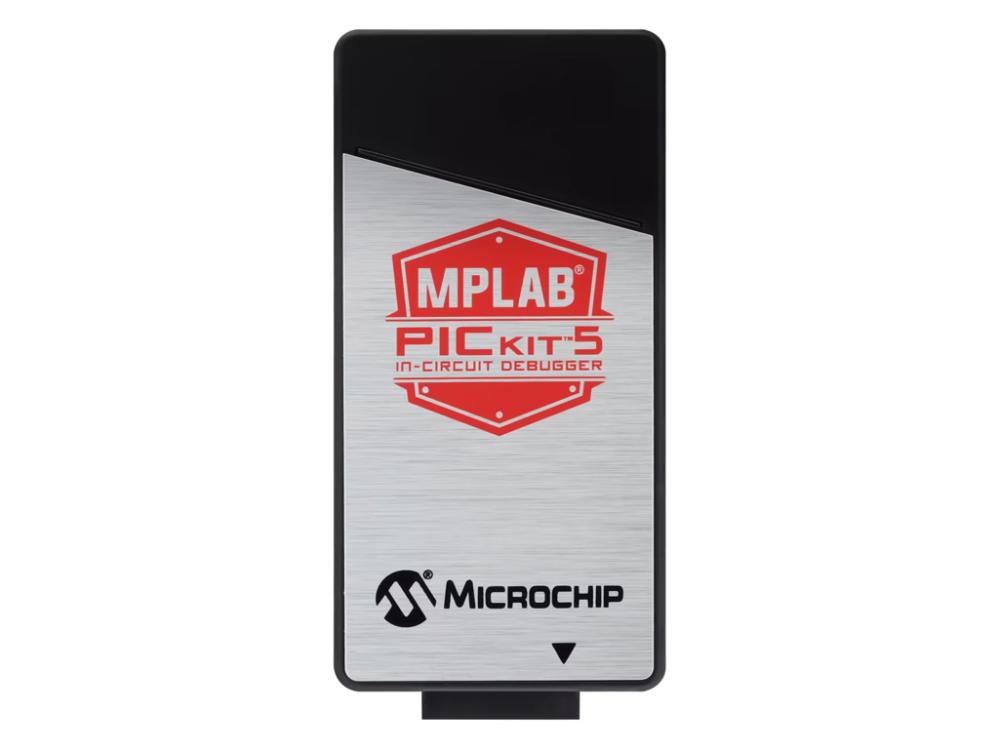

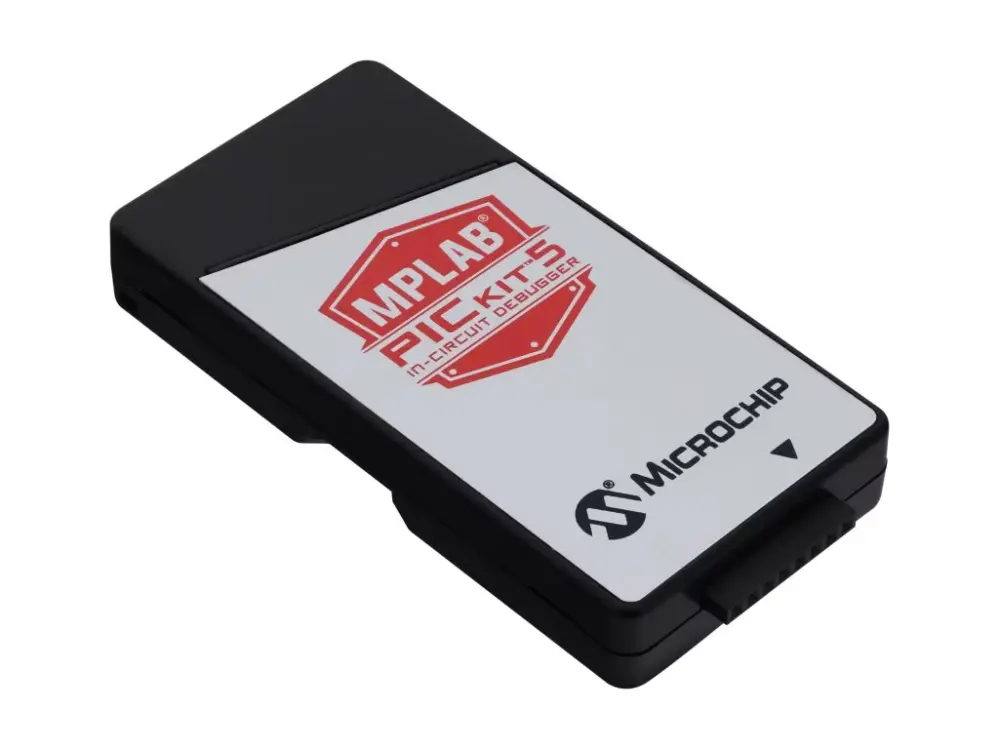

PG164150 is a MPLAB® PICkit™ 5 in-circuit debugger/programmer that enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC® microcontrollers (MCUs) and dsPIC® Digital Signal Controllers (DSCs), AVR® and SAM devices and Arm® Cortex®-based microprocessors (MPUs). It works alongside the MPLAB X Integrated Development Environment (IDE) to provide a powerful and easy-to-use Graphical User Interface (GUI) for debugging and programming. It can be used stand-alone with the MPLAB Programmer-to-Go (PTG) mobile app, allowing you to connect to the tool from your smartphone via Bluetooth®. With stand-alone programming features accessible from your smartphone, the MPLAB PICkit 5 in-circuit debugger/programmer is a versatile programming companion that lets you prototype and debug your solution and then unplug and bring the device with you to deploy that solution out in the field. The PICKit 5 is compatible with MPLAB X IDE version 6.10 and later.
-
Improved Programmer-to-Go (PTG) support with the MPLAB PTG mobile app
-
Supply 150mA to the target
-
USB Type-C® connector and cable
-
No external power needed when the device is powered by high-speed USB 2.0
-
Use the eight-pin single in-line header
-
Features and performance at a fraction of the cost of comparable debuggers/programmers
-
Debugs your application on your own hardware in real time, debugs at full device operational speeds
-
Operates within a temperature range of 0 to 70 degrees Celsius
-
VDD and VPP voltage monitors protect against overvoltage /all lines have overcurrent protection
-
Bluetooth 5.0 certified module for communication between MPLAB PTG application and MPLAB PICkit 5
Contents:

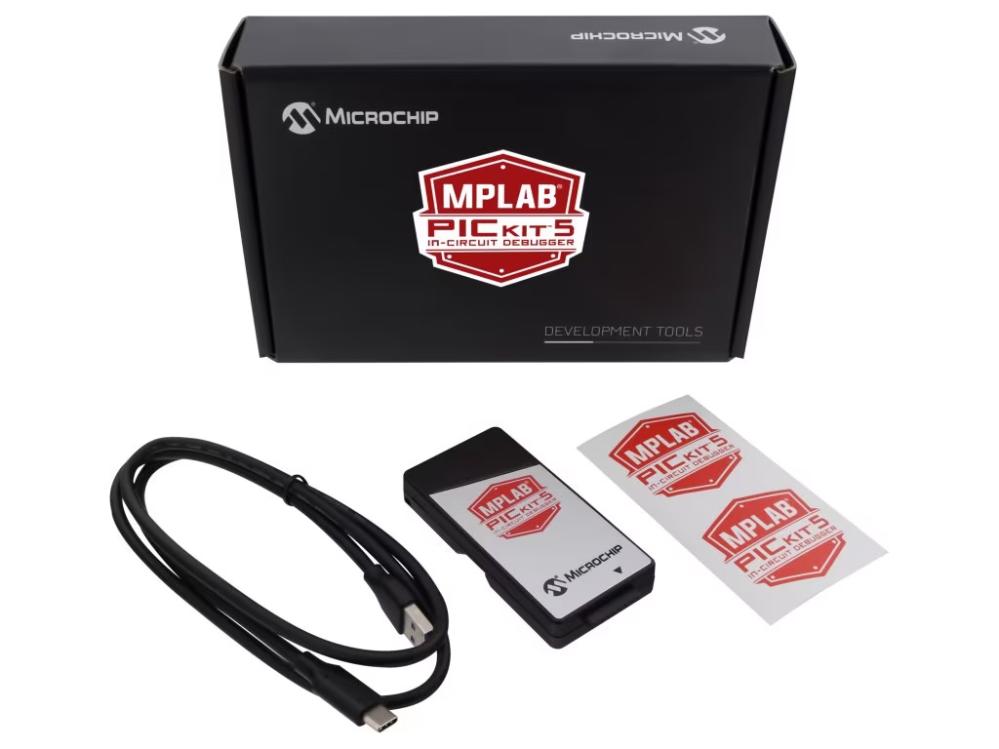

MPLAB PICkit 5 in-circuit debugger/programmer, USB Type-A to USB Type-C cable, Two MPLAB PICkit 5 in-circuit debugger/programmer sticker.
Notes:
System requirements : available USB 2.0 port, Microsoft Windows® 10 or later, macOS®, or Linux®, MPLAB X IDE version 6.10 or later.
