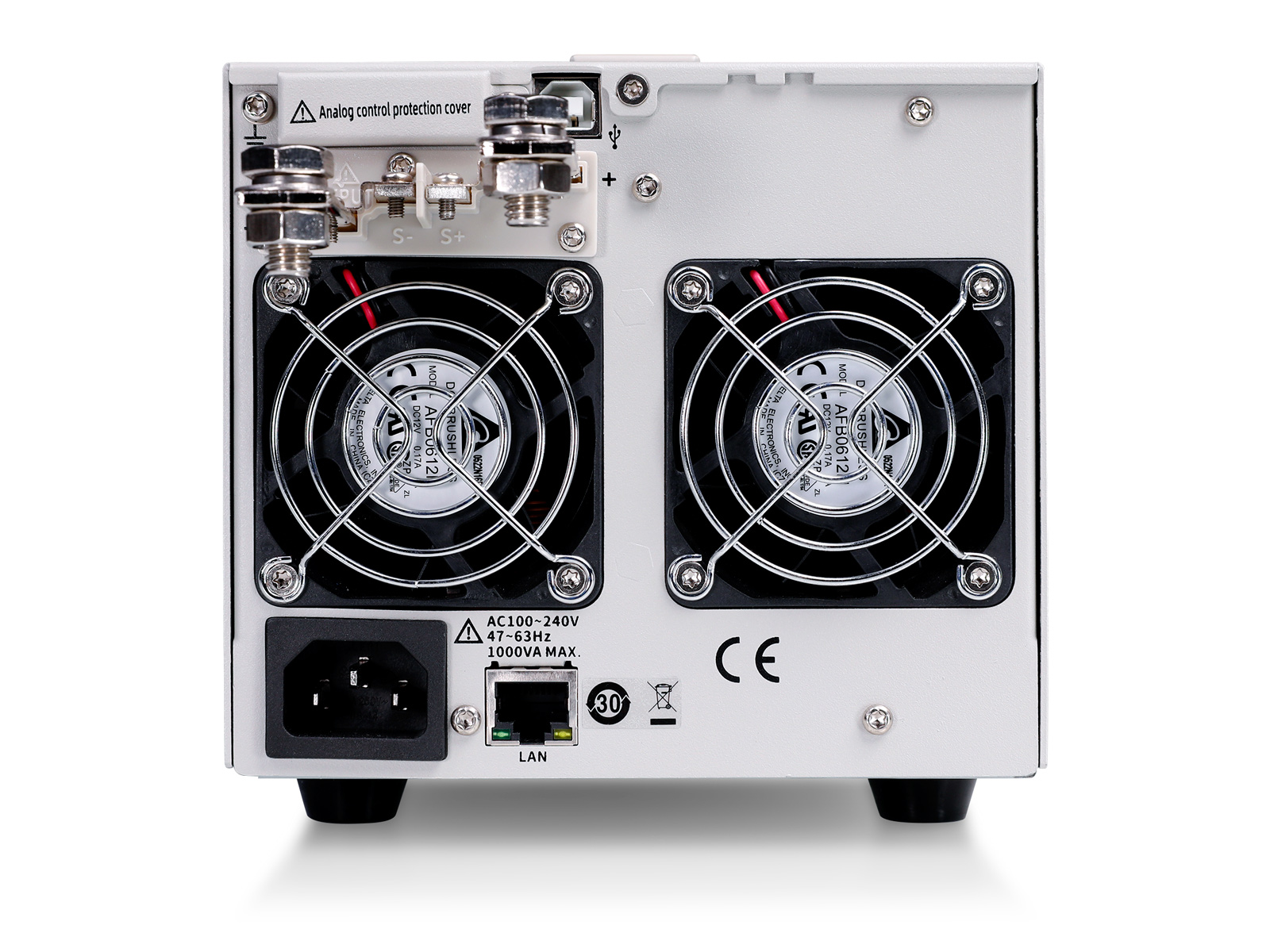

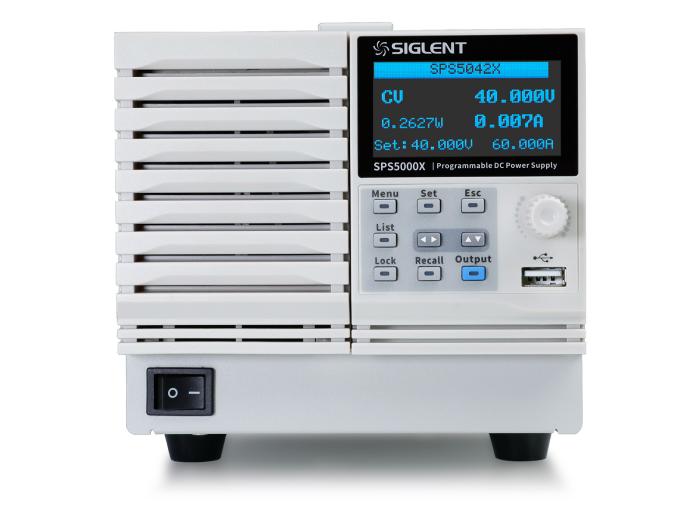

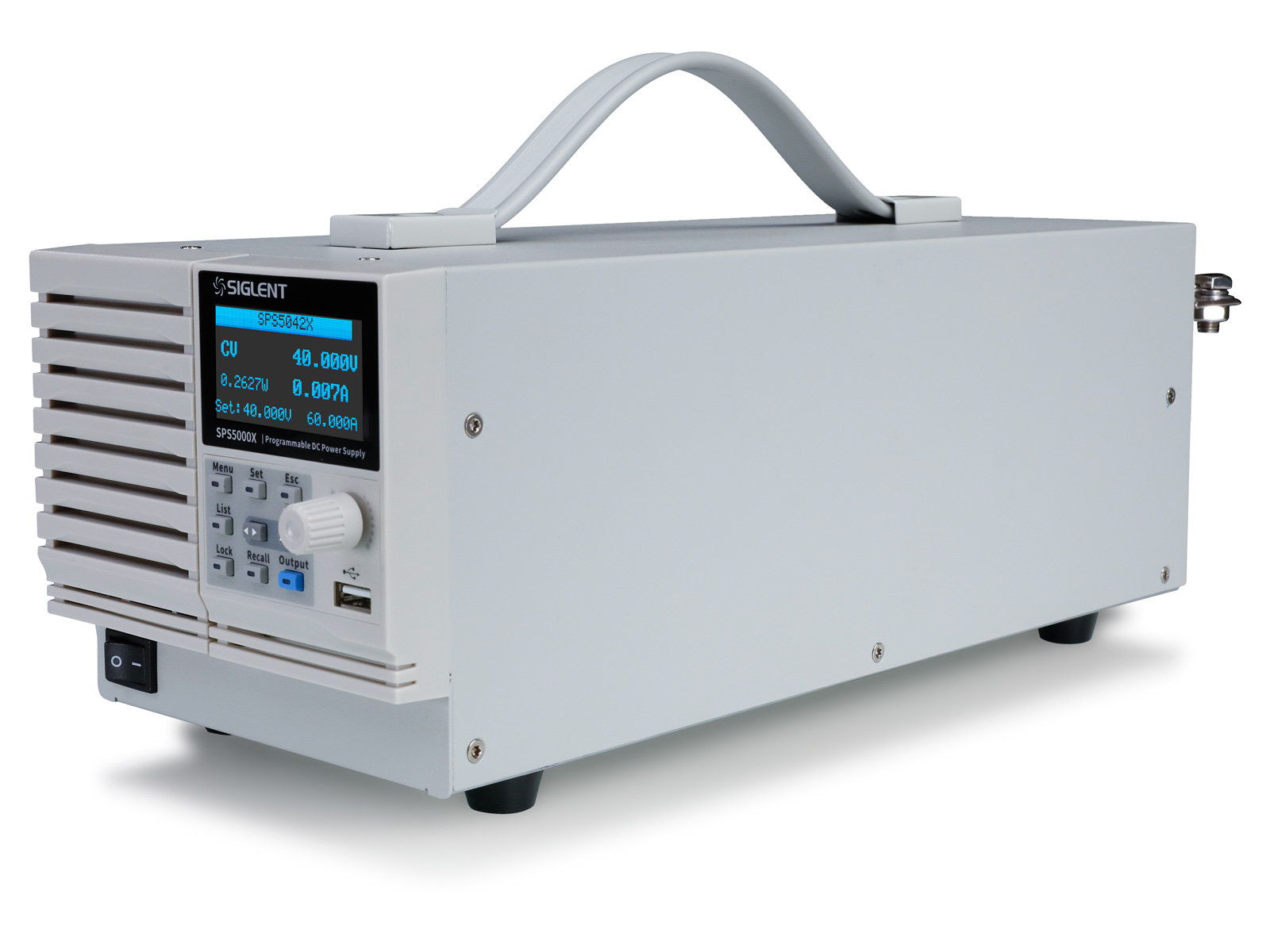

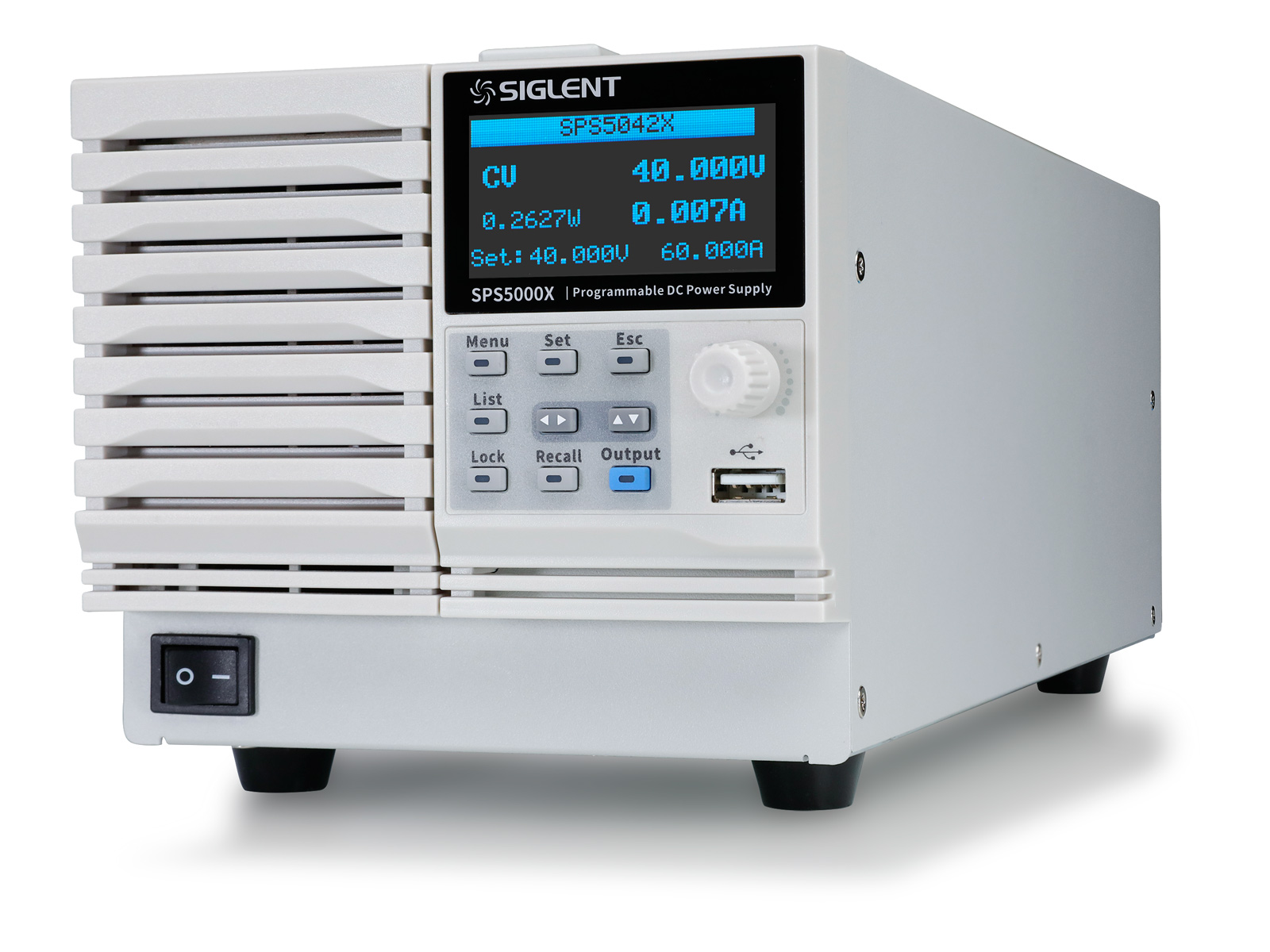

Programmerbart nätaggregat Siglent 1x 40V/60A 720W SPS5042X

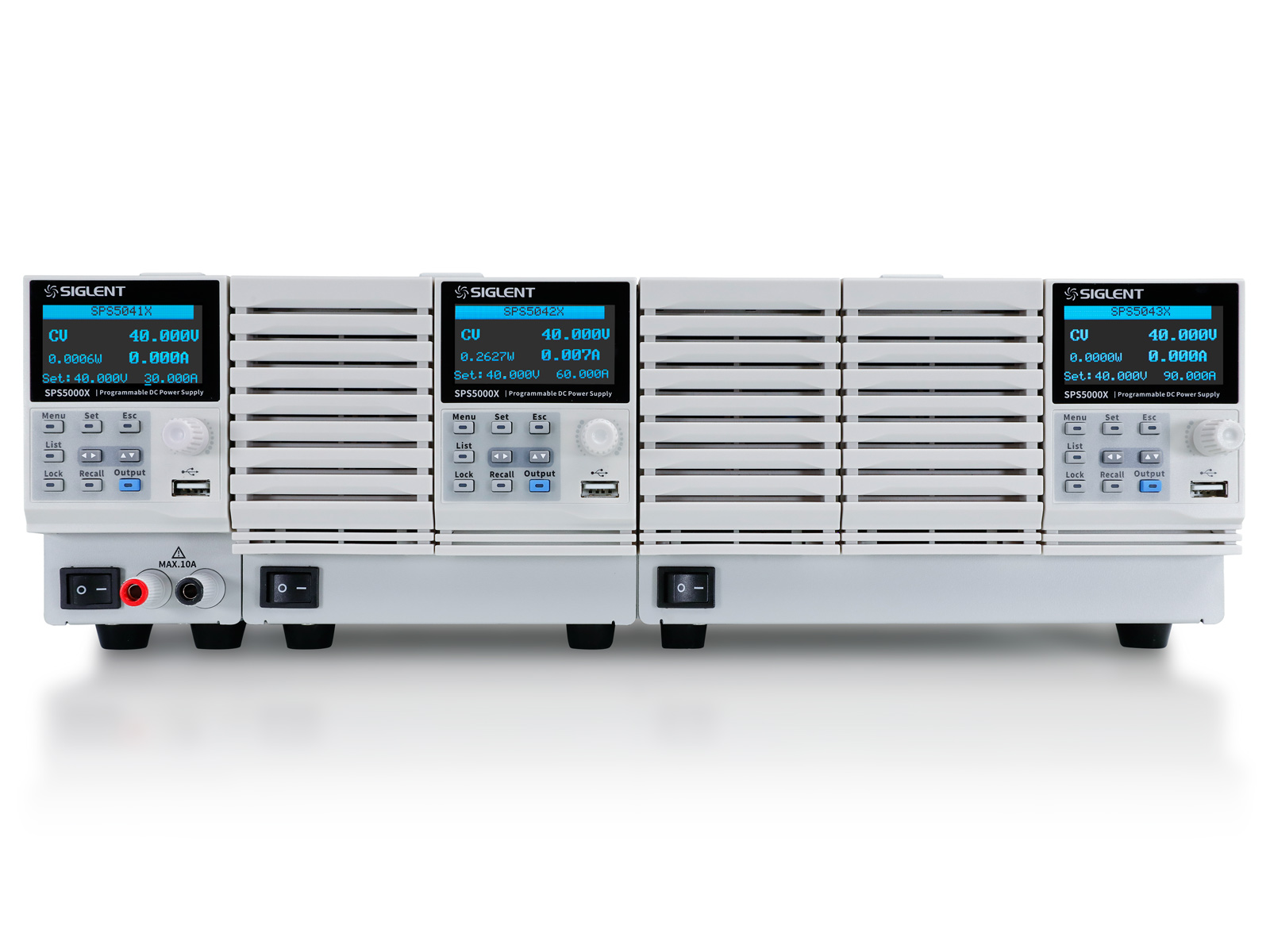

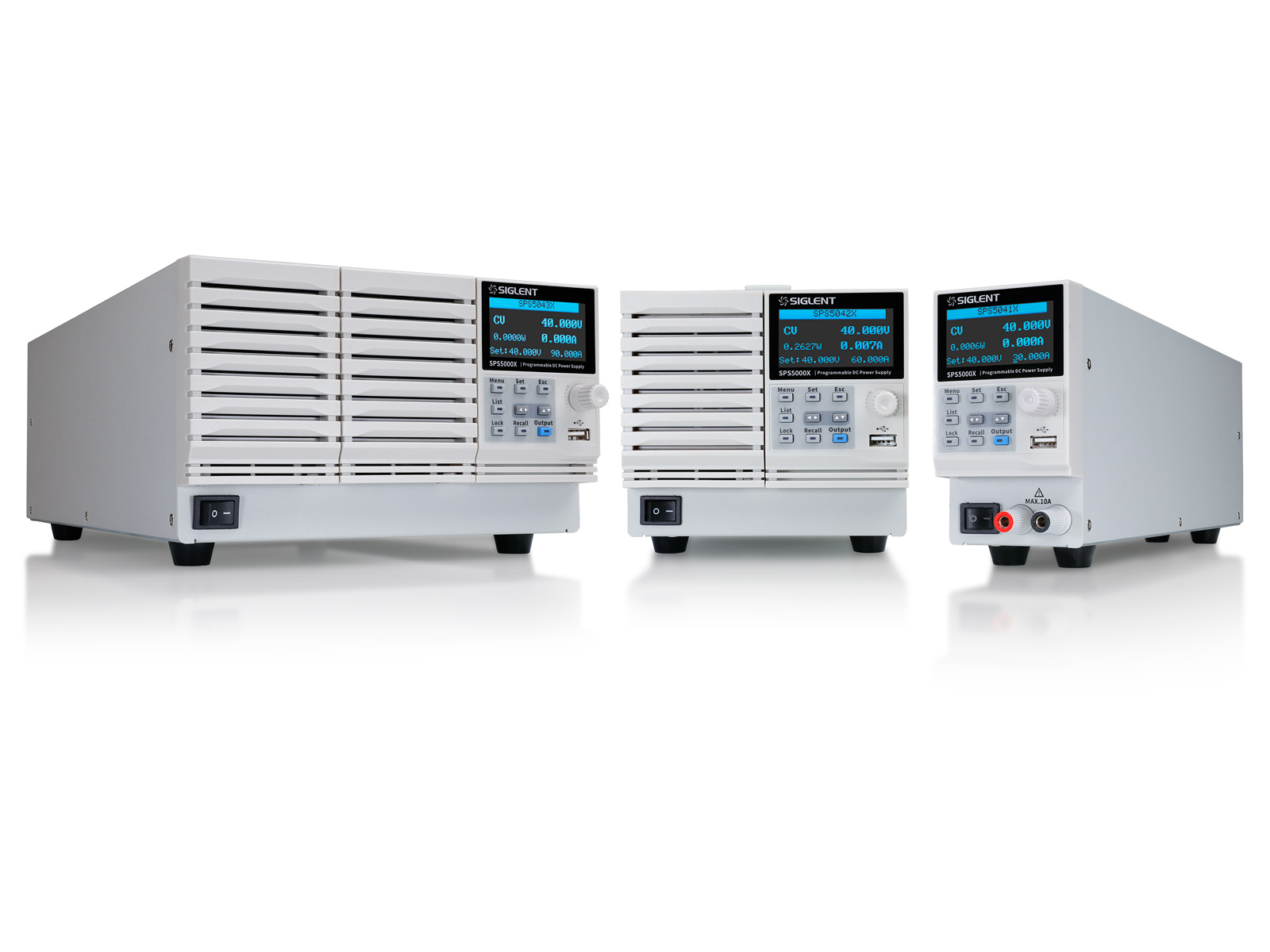

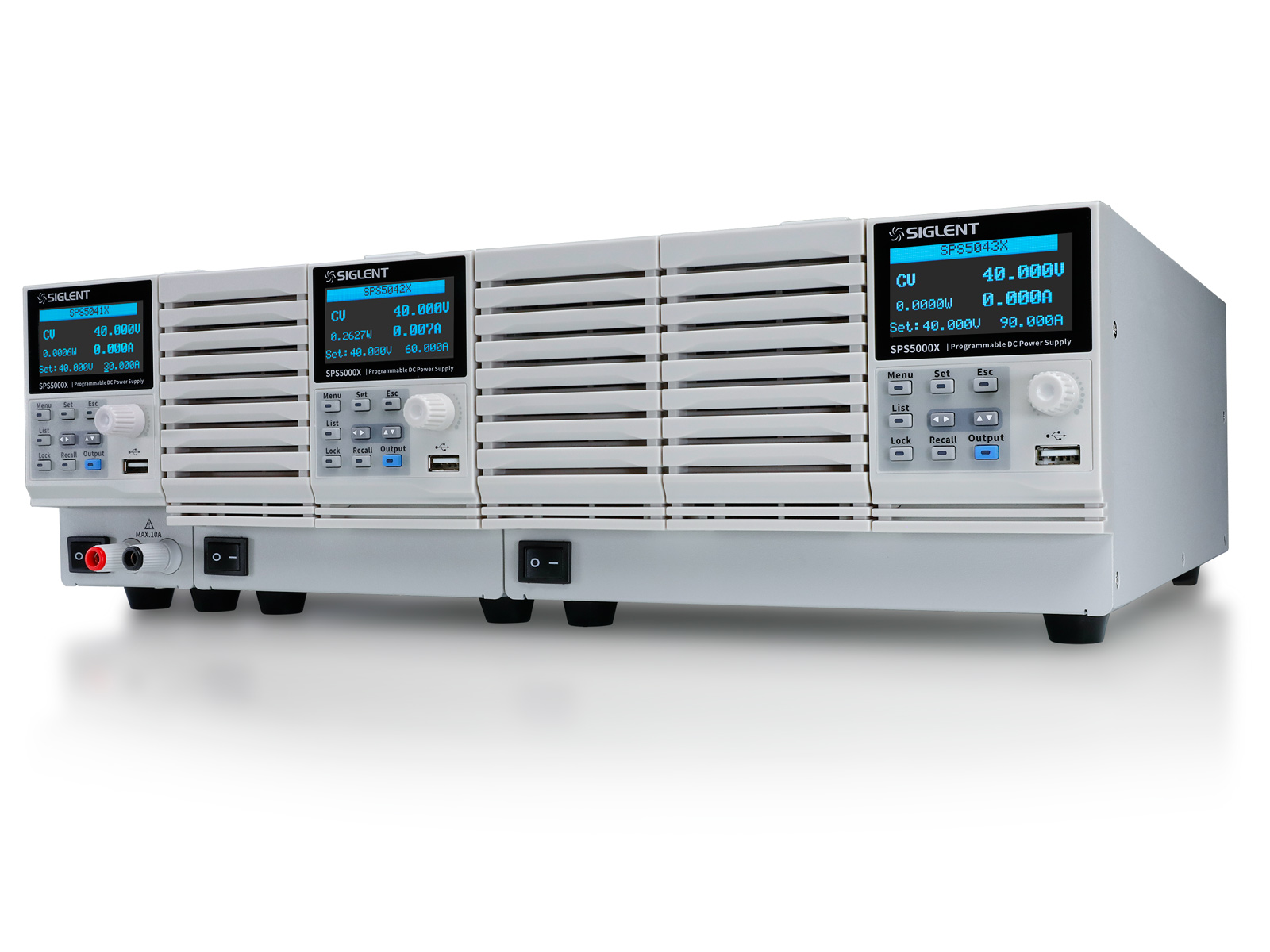

SPS5000X är en serie programmerbara switchade DC-strömförsörjningar med singel, dubbla och trippla utgångar. Modellerna finns i flera utföranden för olika spännings- och strömuttag upp till 160V, 90A och 1080W. Flera enheter kan anslutas i serie (2st) eller parallellt (3st) för maximalt 320VDC, 270A eller 3240W. Alla modeller har en stor och tydlig 2.4" OLED som visar alla inställningar och utgångar. Fjärrstyrning via USB, LAN, GPIB (kräver extern modul) eller web server.

Modeller:

Modell	Kanaler	Spänning	Ström	Effekt	Upplösning	Inställningsnoggrannhet	Utläsningsnoggrannhet
SPS5051X	1	0~50V	0~10A	180W	1mV/1mA	0.1% ±10mV/0.1% ±10mA	0.1% ±20mV/0.1% ±20mA
SPS5041X	1	0~40V	0~30A	360W	1mV/1mA	0.1% ±10mV/0.1% ±30mA	0.1% ±20mV/0.1% ±40mA
SPS5042X	1	0~40V	0~60A	720W	1mV/1mA	0.1% ±10mV/0.1% ±60mA	0.1% ±20mV/0.1% ±70mA
SPS5043X	1	0~40V	0~90A	1080W	1mV/1mA	0.1% ±10mV/0.1% ±100mA	0.1% ±20mV/0.1% ±100mA
SPS5044X	2	0~40V	0~30A	720W	1mV/1mA	0.1% ±10mV/0.1% ±30mA	0.1% ±20mV/0.1% ±40mA
SPS5045X	3	0~40V	0~30A	1080W	1mV/1mA	0.1% ±10mV/0.1% ±30mA	0.1% ±20mV/0.1% ±40mA
SPS5081X	1	0~80V	0~15A	360W	1mV/1mA	0.1% ±10mV/0.1% ±10mA	0.1% ±20mV/0.1% ±20mA
SPS5082X	1	0~80V	0~30A	720W	1mV/1mA	0.1% ±10mV/0.1% ±30mA	0.1% ±20mV/0.1% ±40mA
SPS5083X	1	0~80V	0~45A	1080W	1mV/1mA	0.1% ±10mV/0.1% ±40mA	0.1% ±20mV/0.1% ±50mA
SPS5084X	2	0~80V	0~15A	720W	1mV/1mA	0.1% ±10mV/0.1% ±10mA	0.1% ±20mV/0.1% ±20mA
SPS5085X	3	0~80V	0~15A	1080W	1mV/1mA	0.1% ±10mV/0.1% ±10mA	0.1% ±20mV/0.1% ±20mA
SPS5161X	1	0~160V	0~7.5A	360W	1mV/1mA	0.1% ±100mV/0.1% ±5mA	0.1% ±100mV/0.1% ±5mA
SPS5162X	1	0~160V	0~15A	720W	1mV/1mA	0.1% ±100mV/0.1% ±15mA	0.1% ±100mV/0.1% ±15mA
SPS5163X	1	0~160V	0~22.5A	1080W	1mV/1mA	0.1% ±100mV/0.1% ±20mA	0.1% ±100mV/0.1% ±20mA
SPS5164X	2	0~160V	0~7.5A	720W	1mV/1mA	0.1% ±100mV/0.1% ±5mA	0.1% ±100mV/0.1% ±5mA
SPS5165X	3	0~160V	0~7.5A	1080W	1mV/1mA	0.1% ±100mV/0.1% ±5mA	0.1% ±100mV/0.1% ±5mA
