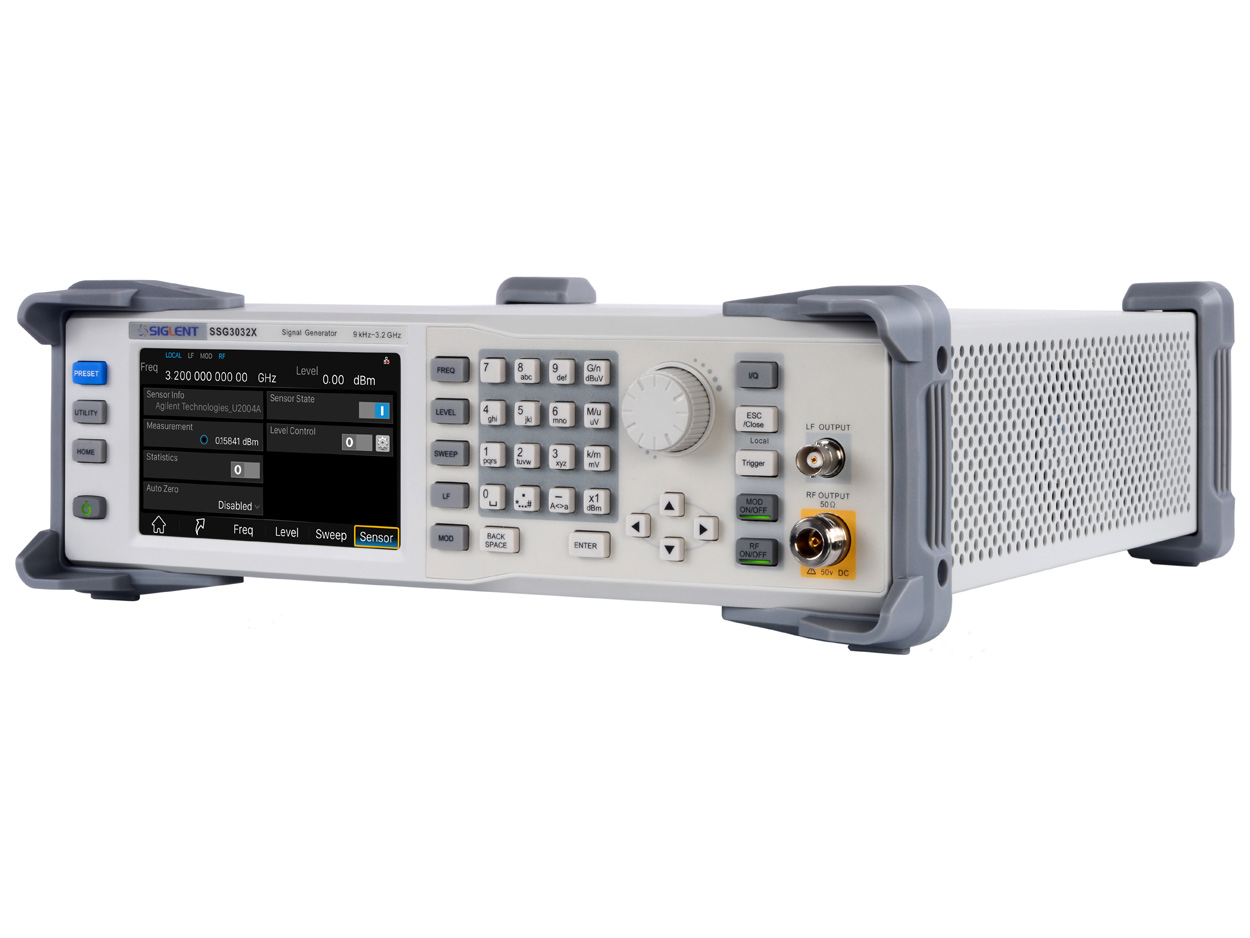

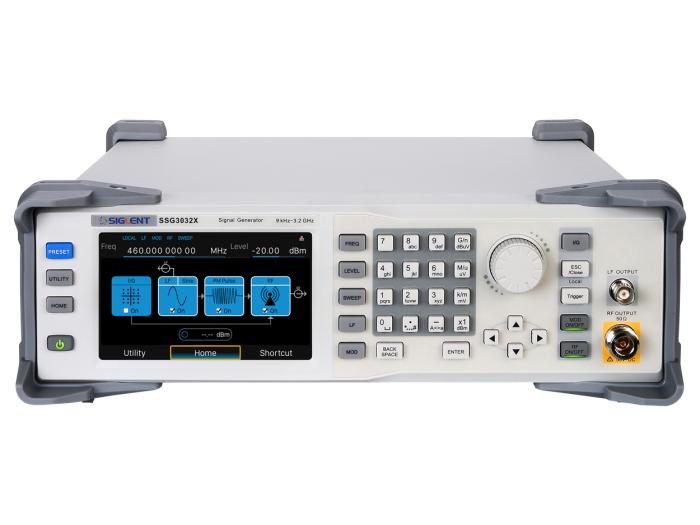

Signalgenerator RF 3.2GHz SSG3032X

SIGLENT'S SSG3032X signal generator has a frequency range of 9 kHz to 3.2 GHz. The SSG3032X provides normal analog modulation such as AM, FM, and PM. It also provides a pulse modulation and pulse train generator. In addition, when used with baseband generator such as SDG6000X series, It can generate IQ modulated signals. With high accuracy and pure outputs, the SSG3000X series is the right choice for R&D, education, and manufacturing purposes.

Frequency up to 2.1 GHz/3.2 GHz
0.01 Hz frequency setting resolution
Level output from -110 dBm to +13 dBm
Maximum level up to +20 dBm (typ.)
Phase Noise : -110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.)
Level accuracy =0.7 dB (typ.)
Provides AM, FM & PM analog modulation with internal, external
or Int+Ext source
Pulse modulation, on/off ratio =70 dBc

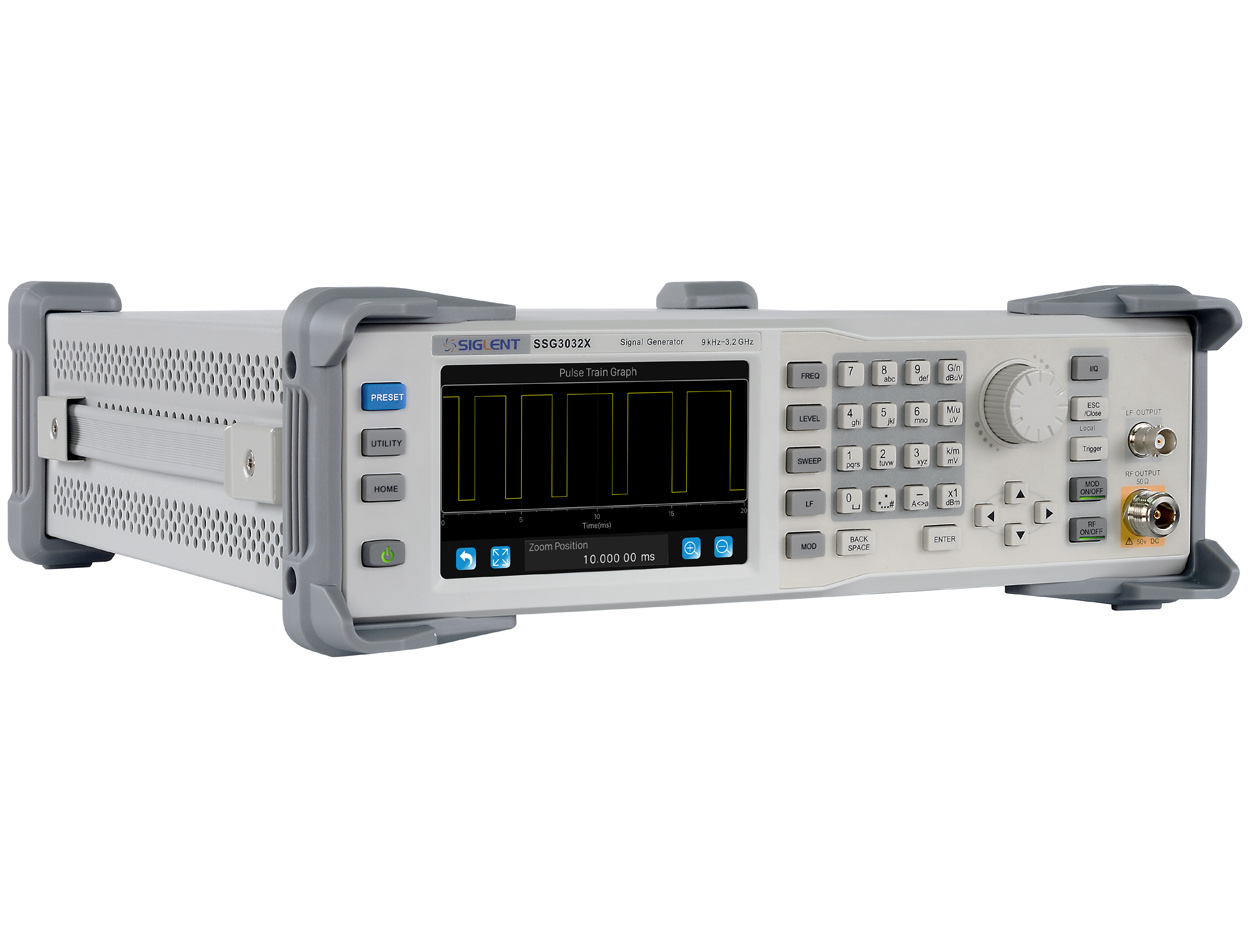

Pulse train Generator (option)
External IQ modulation with SDG6000X as the baseband IQ
signal
USB-power meter measurement kit
5 inch TFT capacitive touch screen, Mouse and keyboard
supported
Web Browser Remote Control on PC and mobile Terminals

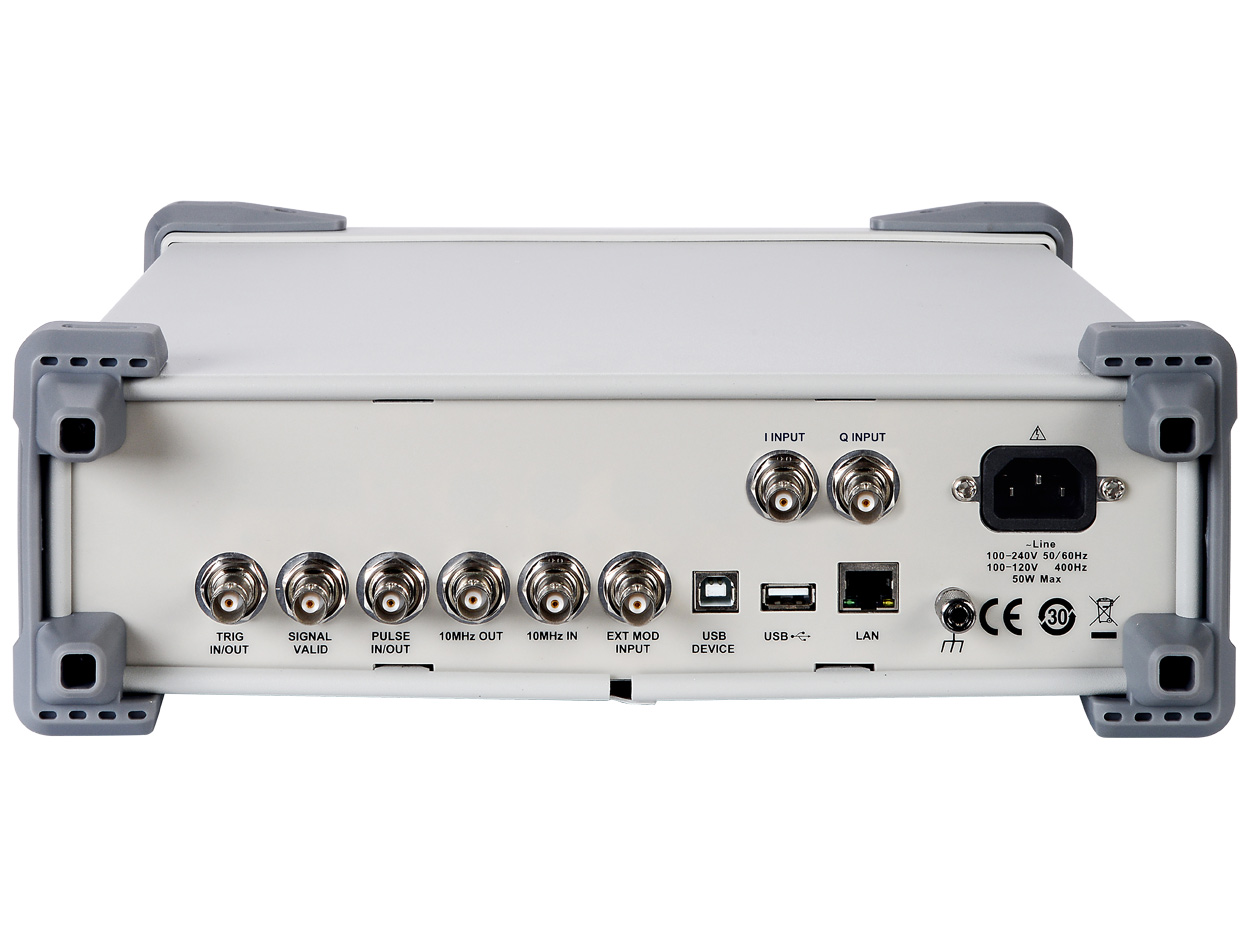

Standard interface include USB Host, USB Device (USB TMC),
LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
