Produktbeskrivning
The OpenBuilds Solid V Wheel is a strong wheel that resists deflection due to it's solid nature.
This wheel style was produced for two reasons.

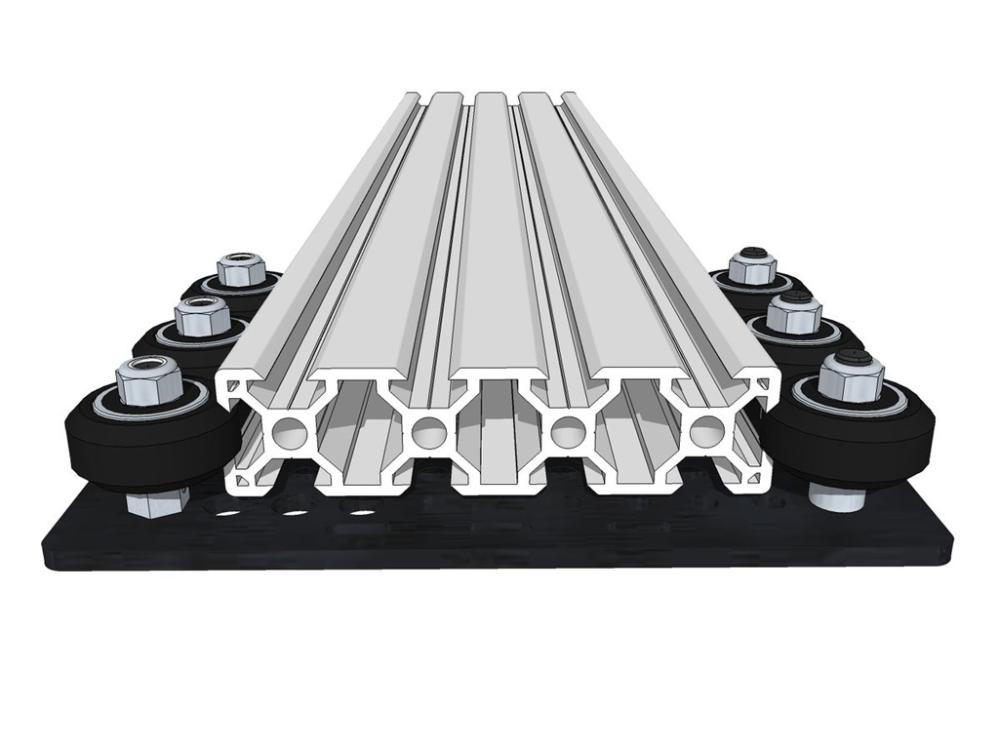

- First is for builds where heavier loads are required and less compression in the delrin is desired. Many of these wheels could be added to a gantry to allow an even distribution of the load across them.
- Second is for improved performance of the belt and pinion system to give the belt a flat surface to ride on.
Each wheel is carefully milled for consistent high precision and tolerance.

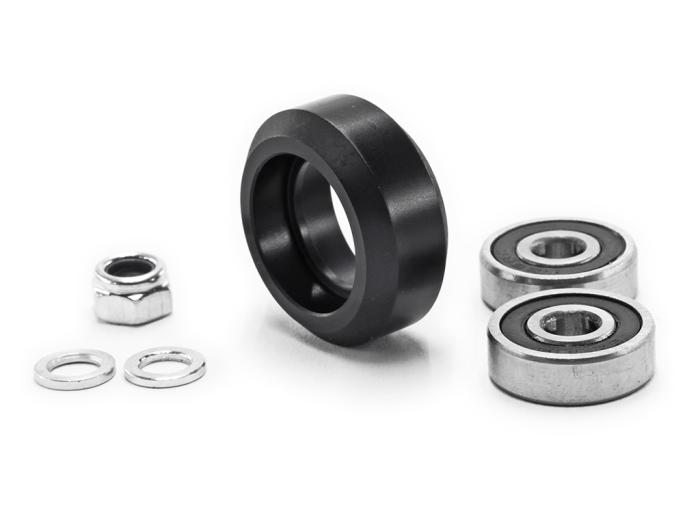

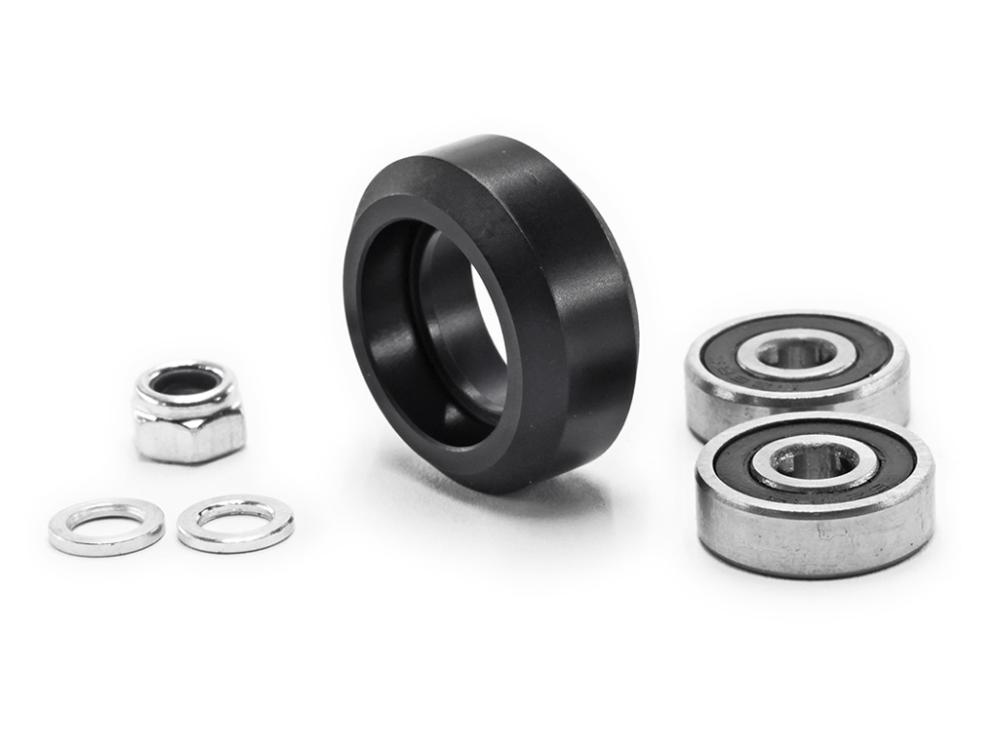

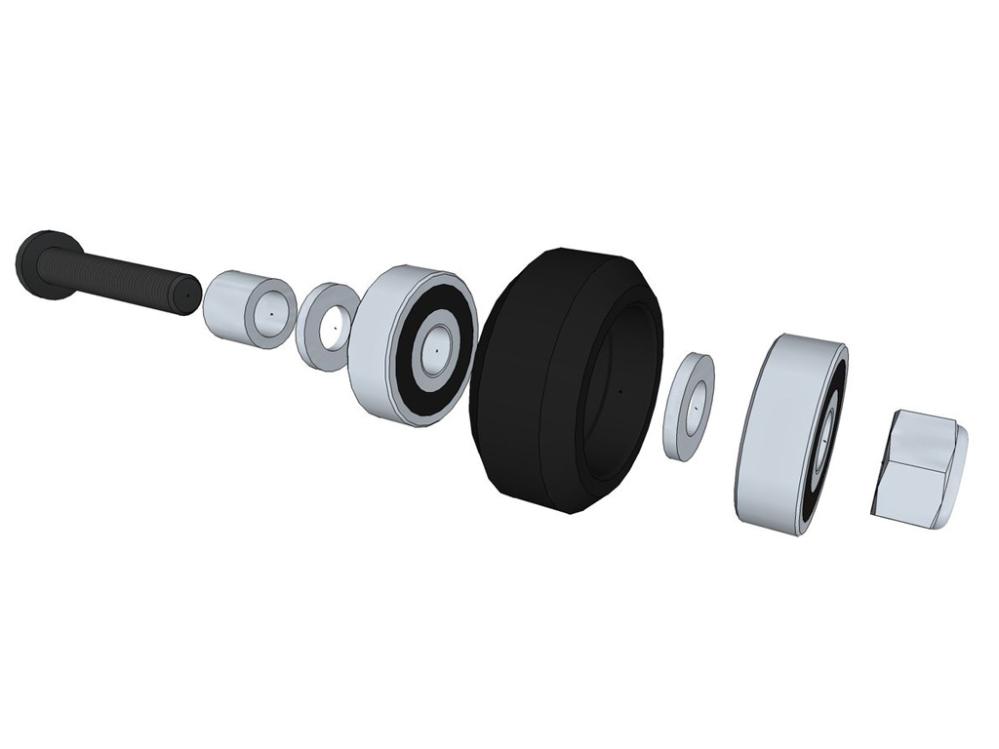

Each Wheel Kit Includes:
- (1) OpenBuilds Solid V Wheel
- (2) Ball Bearings - 625 2RS
- (2) 5mm Precision Shim
- (1) Lock Nut with Nylon Insert
Part Details
- - Material - Delrin (black)
- - Dimensions 23.90 OD x 16 ID x 10.23 'thick'
- - Rockwell Hardness M80
- - Compressive Strengh 63Mpa
