Produktbeskrivning

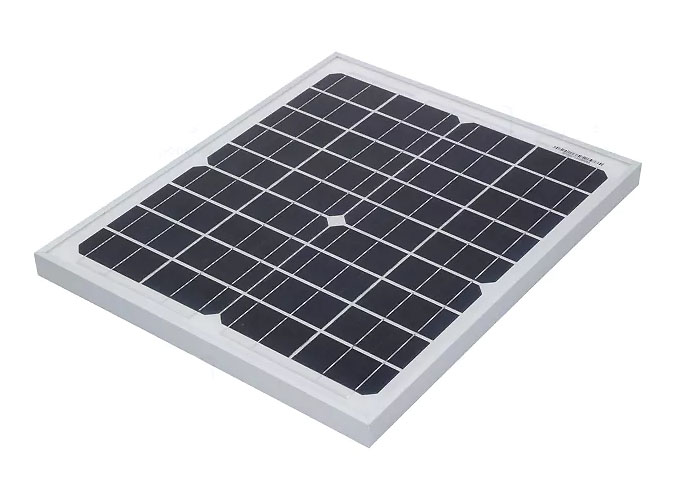

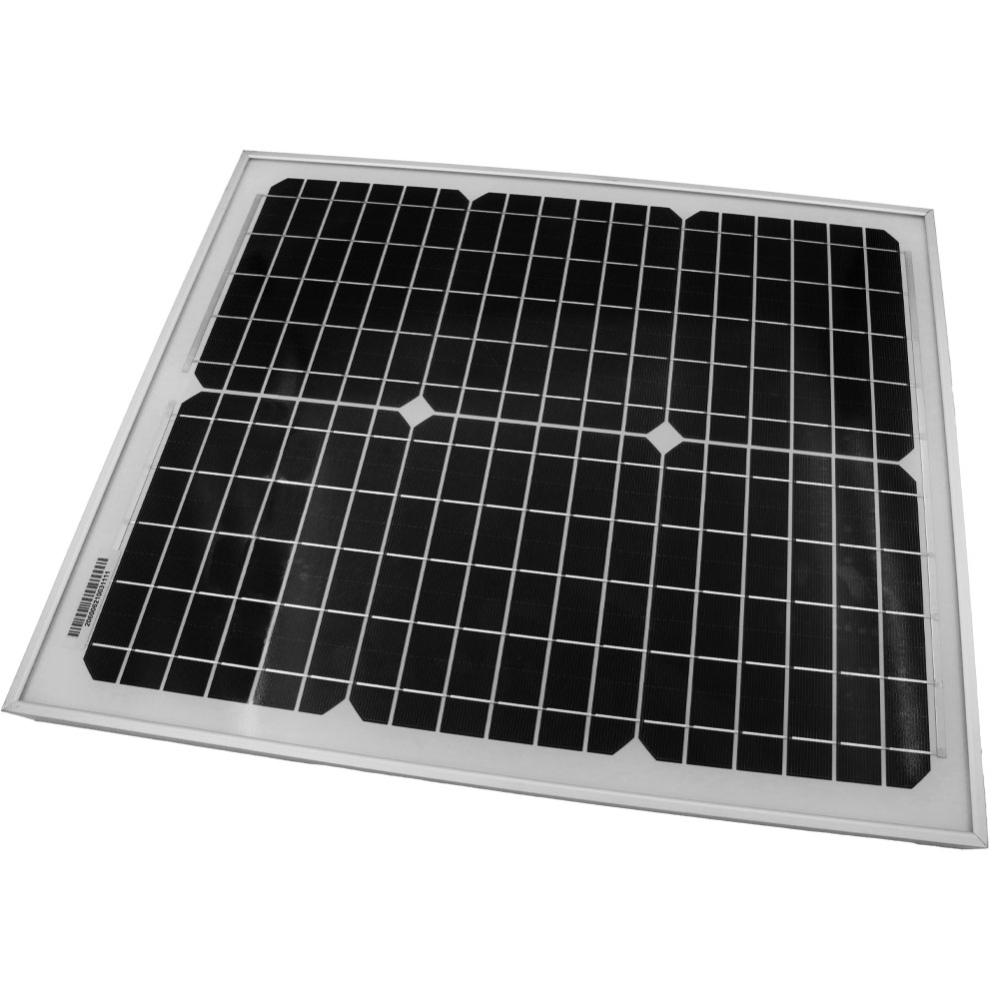

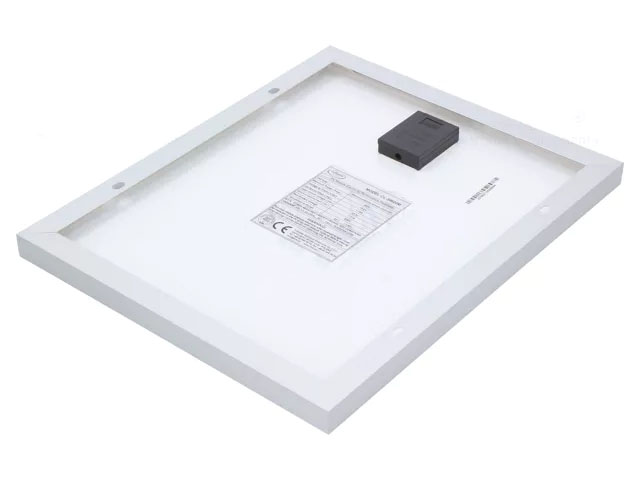

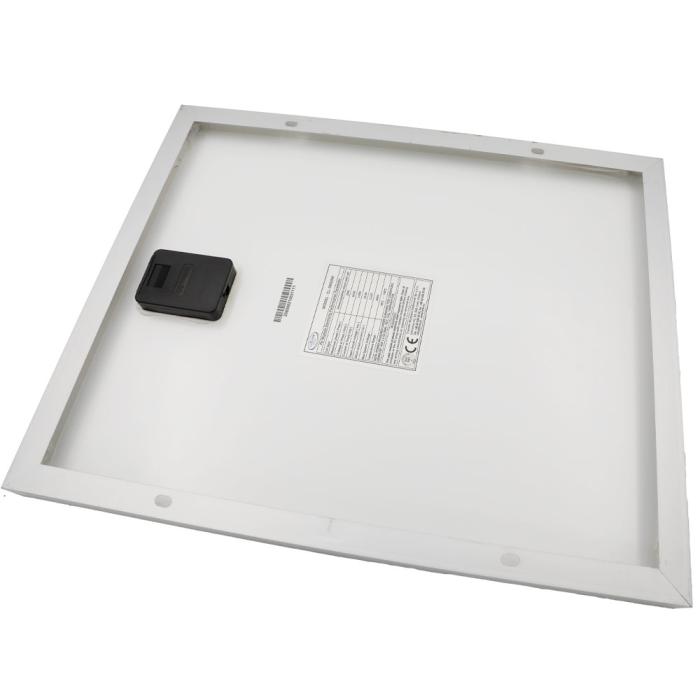

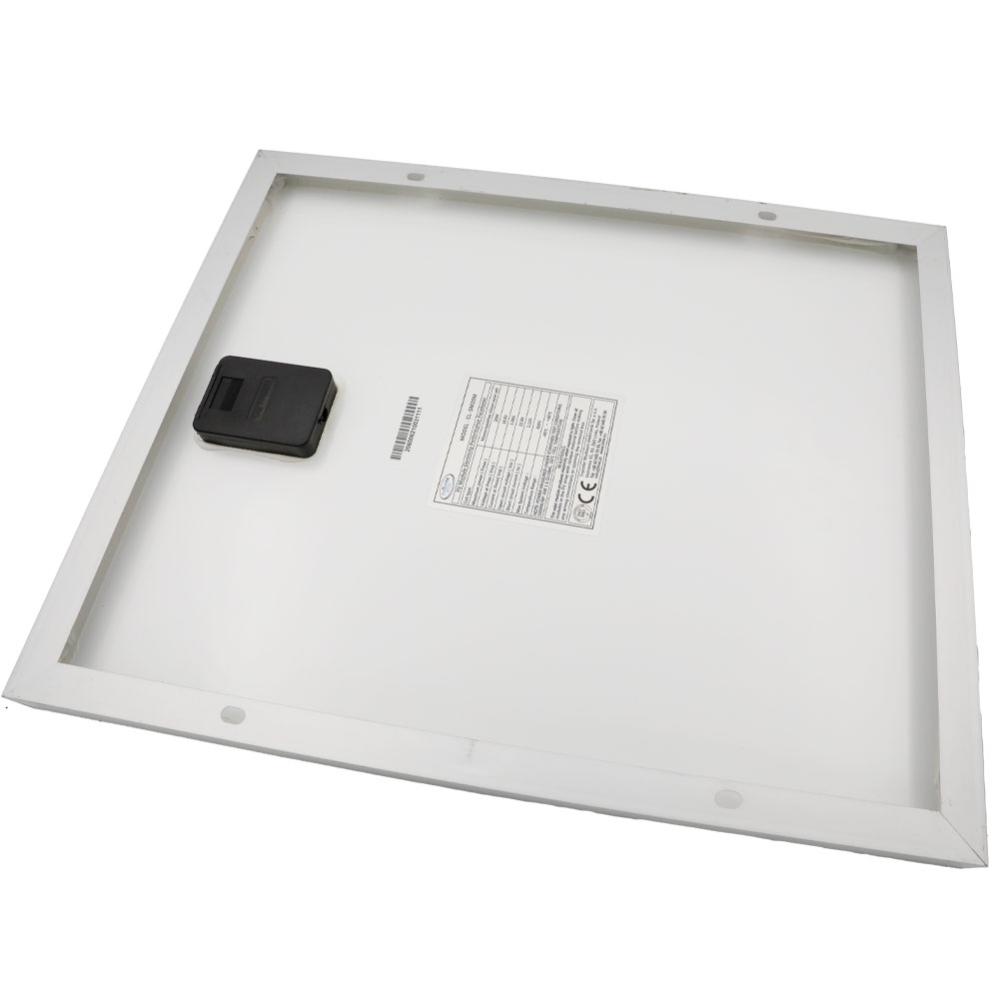

20W monokritalin solcell / solpanel. Robust panel med aluminiumram och skyddande glas. Köp till solcellsregulator eller använd i utvecklingsprojekt. Typisk användning: husbil, båt, stuga, bod, automater, elstaket, etc.
Specifikationer:
- Toppeffekt (Pmax): 20W
- Spänning vid Pmax (Vmp): 18.6V
- Ström vid Pmax (Imp): 1.08 A
- Spänning öppen krets (Voc): 22.9V
- Kortslutningsström (Isc): 1.12A
- NOCT (Normal Operating Cell Temperature): 47 °C
- Temperaturområde användning: -40 till 85°C
- Seriekoppla upp till max: 600 VDC
- Celltyp: Monokristallint kisel
- Mått: 435x356x25 mm
- Vikt: 2.1 kg
- Anslutning: Skruvplint
