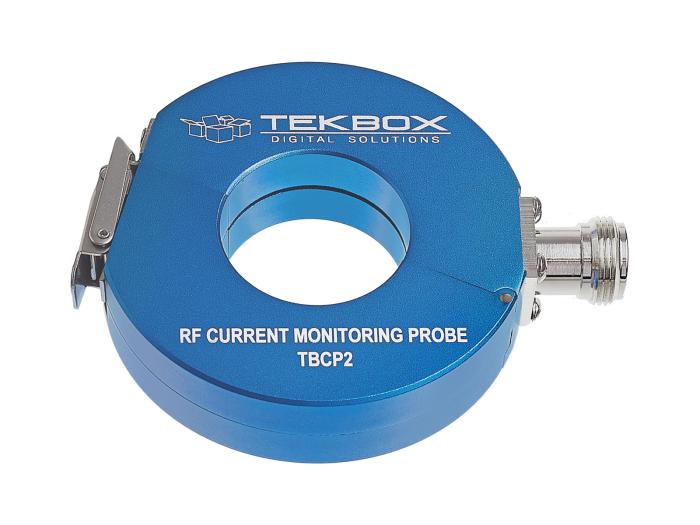

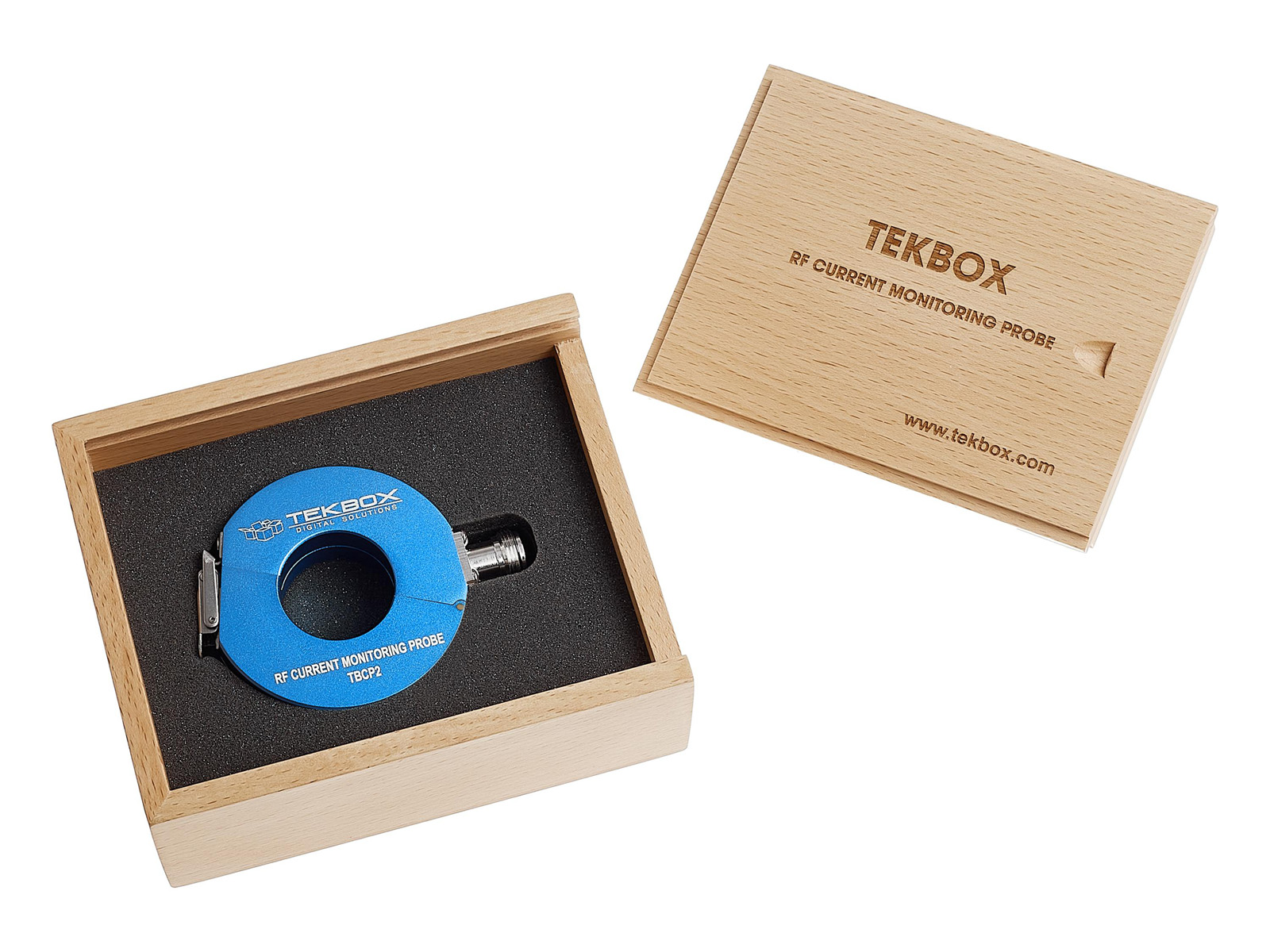

The TBCP2-250 is a snap-on RF current monitoring probe. It has a very flat response with a 3dB bandwidth of 250 MHz and is characterized and usable over the frequency range from 10kHz to 250 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is > 13 dB Ohm in the range from 700 kHz to 250 MHz.
Tekbox supplies a calibration fixture corresponding with the TBCP2 series of snap on current probes.
TBCP2-250
Characterized frequency range: 10 kHz to 250 MHz
Aperture diameter: 32 mm
Outside diameter: 73 mm
Height: 20 mm
Weight: 320 g
Connector type: N female
Transfer impedance: 0 to 16 dB? between 100 kHz and 250 MHz
Max. primary current (DC - 400 Hz): 80 A
Max. primary current (RF): 3 A
Max. core temperature: 125 °C
