20W Bridge amplifier for car radio

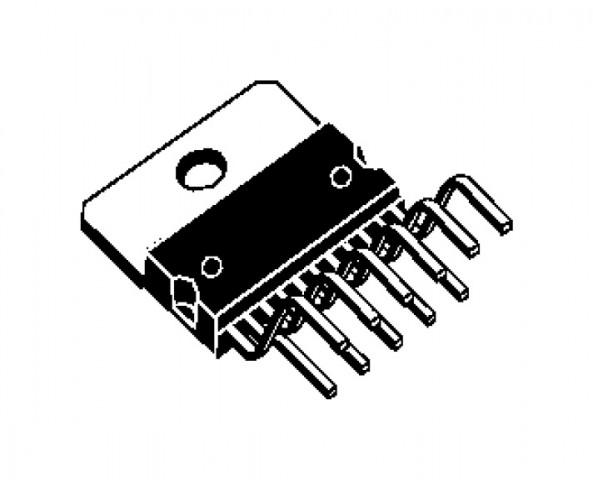

The TDA2005 is class B dual audio power amplifier in MULTIWATT? package specifically designed for car radio application : power booster amplifiers are easily designed using this device that provides a high current capability (up to 3.5A) and that can drive very low impedance loads (down to 1.6 Ohm in stereo applications) obtaining an output power of more than 20W (bridge configuration).
Features
* High output power: PO = 10 + 10 W@RL = 2 Ohm,
d = 10% ; PO = 20W@RL = 4 Ohm , d = 1%.
* High reliability of the chip and package with additional complete safety during operation thanks to protection against :
- Output DC and AC short circuit to ground
- Overrating chip temperature
- Load dump voltage surge
- Fortuitous open ground
- Very inductive loads
* Flexibility in use : bridge or stereo booster amplifiers with or without boostrap and with programmable gain and bandwidth.
* Space and cost saving : very low number of external components, very simple mounting system with no electrical isolation between the package and the heatsink (one screw only).
* In addition, the circuit offers loudspeaker protection during short circuit for one wire to ground.
