Produktbeskrivning

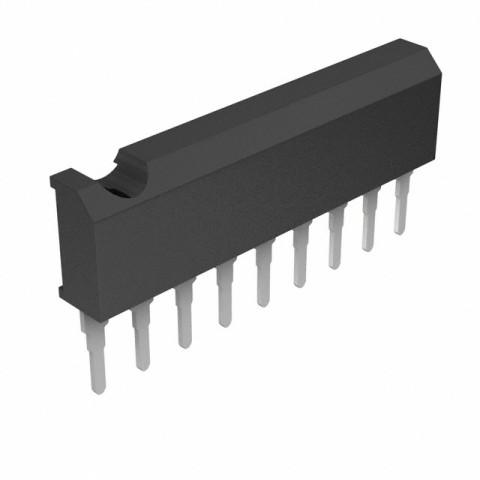

The TDA6101Q is a video output amplifier with 9 MHz bandwidth. The device is contained in a single in-line 9-pin medium power (DBS9MPF) package, using high-voltage DMOS technology, intended to drive the cathode of a colour CRT.
* High bandwidth and high slew rate
* No external heatsink required
* Black-current measurement output for Automatic Black-current Stabilization (ABS)
* Two cathode outputs; one for DC currents, and one for transient currents
* A feedback output separated from the cathode outputs
* Internal protection against positive appearing Cathode-Ray Tube (CRT) flashover discharges
* ESD protection
* Simple application with a variety of colour decoders
* Differential input with a designed maximum common
- mode input capacitance of 3 pF, a maximum differential
- mode input capacitance of 0.5 pF and a differential input
* voltage temperature drift of 20 µV/K
* Defined switch-off behaviour.
