Produktbeskrivning

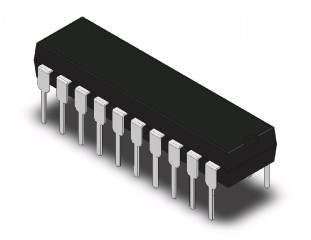

The TLC1543C is a CMOS 10-bit switched-capacitor successive-approximation analog-to-digital converter (ADC). It has three inputs and a 3-state output [chip select ( CS ), input-output clock (I/O CLOCK), address input (ADDRESS), and data output (DATA OUT)] that provides a direct 4-wire interface to the serial port of a host processor. This device allow high-speed data transfers from the host.
* 10-Bit Resolution A/D Converter
* 11 Analog Input Channels
* Three Built-In Self-Test Modes
* Inherent Sample-and-Hold Function
* Total Unadjusted Error: ± 1LSB Max
* On-Chip System Clock
* End-of-Conversion (EOC) Output
* Terminal Compatible With TLC542
* CMOS Technology
* 10-Bit Resolution A/D Converter
* 11 Analog Input Channels
* Three Built-In Self-Test Modes
* Inherent Sample-and-Hold Function
* Total Unadjusted Error: ± 1LSB Max
* On-Chip System Clock
* End-of-Conversion (EOC) Output
* Terminal Compatible With TLC542
* CMOS Technology
