Dual 4A High Speed Low-Slide MOSFET Driver with Enable

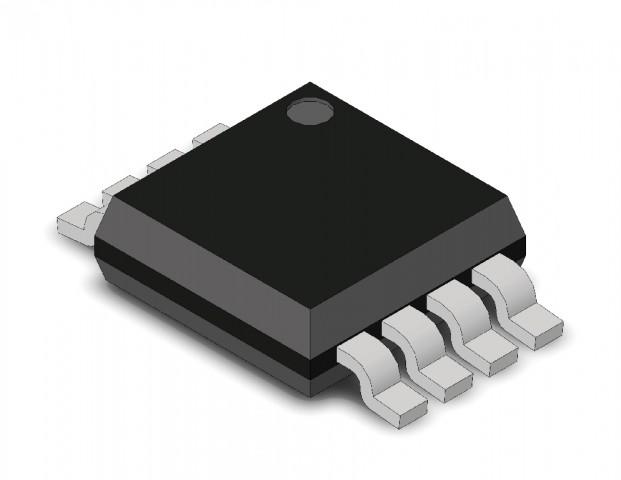

The UCC27424 high-speed dual noninverting MOSFET driver can deliver large peak currents into capacitive loads. The thermally enhanced 8-pin PowerPAD MSOP package drastically lowers the thermal resistance to improve long-term reliability.
Features
* Industry-Standard Pin-Out
* Enable Functions for Each Driver
* High Current Drive Capability of +/-4 A
* Unique BiPolar and CMOS True Drive Output Stage Provides High Current at MOSFET Miller Thresholds
* TTL/CMOS Compatible Inputs Independent of Supply Voltage
* 20ns Typical Rise and 15ns Typical Fall Times with 1.8nF Load
* Typical Propagation Delay Times of 25 ns with Input Falling and 35 ns with Input Rising
* 4V to 15V Supply Voltage
* Dual Outputs Can Be Paralleled for Higher Drive Current
* Rated From -40C to 105C
Applications
* Switch Mode Power Supplies
* DC/DC Converters
* Motor Controllers
* Line Drivers
* Class D Switching Amplifiers
The UCC27424 high-speed dual noninverting MOSFET driver can deliver large peak currents into capacitive loads. The thermally enhanced 8-pin PowerPAD MSOP package drastically lowers the thermal resistance to improve long-term reliability.
Features
* Industry-Standard Pin-Out
* Enable Functions for Each Driver
* High Current Drive Capability of +/-4 A
* Unique BiPolar and CMOS True Drive Output Stage Provides High Current at MOSFET Miller Thresholds
* TTL/CMOS Compatible Inputs Independent of Supply Voltage
* 20ns Typical Rise and 15ns Typical Fall Times with 1.8nF Load
* Typical Propagation Delay Times of 25 ns with Input Falling and 35 ns with Input Rising
* 4V to 15V Supply Voltage
* Dual Outputs Can Be Paralleled for Higher Drive Current
* Rated From -40C to 105C
Applications
* Switch Mode Power Supplies
* DC/DC Converters
* Motor Controllers
* Line Drivers
* Class D Switching Amplifiers
