ZEN50 Diodtestare

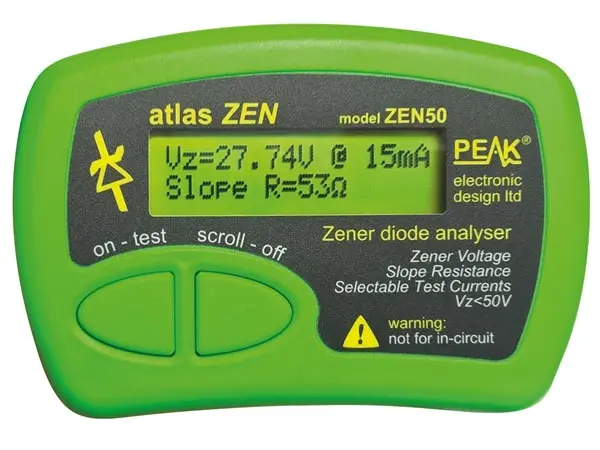

Zen 50 är en komponenttestare för zenerdioder, lavindioder, transientskydd, lysdioder och LED-slingor med upp till 50V framspänning.

Mäter zenerspänning och framspänning mellan 0 och 50V med 20mV noggrannhet.

Mäter över kort tid för att minimera uppvärmning av mätobjektet.

Valbar testström, 2mA, 5mA, 10mA och 15mA.

Drivs med ett AAA-batteri (medföljer).

Specifications:
* Zener voltage range (Vz): 0.0 V - 50.0 V
* Nominal test currents (Iz) : 2mA, 5mA, 10mA, 15mA
* Set test current accuracy: ± 1 % ± 0.2 mA
* Zener voltage measurement accuracy: ± 1% ± 40 mV
* Zener voltage measurement resolution : 20 mV - 40 mV
* Test frequency accuracy: -1.5% ~ +1.5%
* Test current into a short circuit (pulsed) : 35 mA
* Test current duty cycle: min: 0.1% / max: 5% / typical: 1%
* Duty cycle of test current designed to keep power dissipation of Zener under test to very low levels
* Maximum external voltage: ± 50 V
* Slope resistance measurement range:
Iz = 2 mA: 0-8000 Ohm
Iz = 5 mA: 0-3200 Ohm
Iz = 10 mA: 0-1600 Ohm
Iz = 15 mA: 0-1000 Ohm
* Displayed slope resistance resolution:
Iz = 2 mA: 5 Ohm
Iz = 5 mA: 2 Ohm
Iz = 10 mA: 1 Ohm
Iz = 15 mA: 1 Ohm
* Slope resistance measurement accuracy:
Iz = 2 mA: ±1% ±10 Ohm
Iz = 5 mA: ±1% ±4 Ohm
Iz = 10 mA: ±1% ±2 Ohm
Iz = 15 mA: ±1% ±2 Ohm
* Slope resistance current span: (Iz-50%) to (Iz
+50%)
* Slope resistance measurement method :
* Differentiation of curve that fits:: (Iz-50%, Vz1), (Iz, Vz2), (Iz+50%, Vz3)
* Measurement rate: 3 Hz
* Auto-off period: 60 sec.
* Battery: type: 1 x AAA alkaline
* Voltage range: 0.9 V - 1.6 V
* Low battery warning: 1.0 V ± 0.05 V
* Operating temperature: 10-40°C
* Dimensions (excl. leads): 103 x 70 x 20 mm
* Weight: 98 g
