Product description

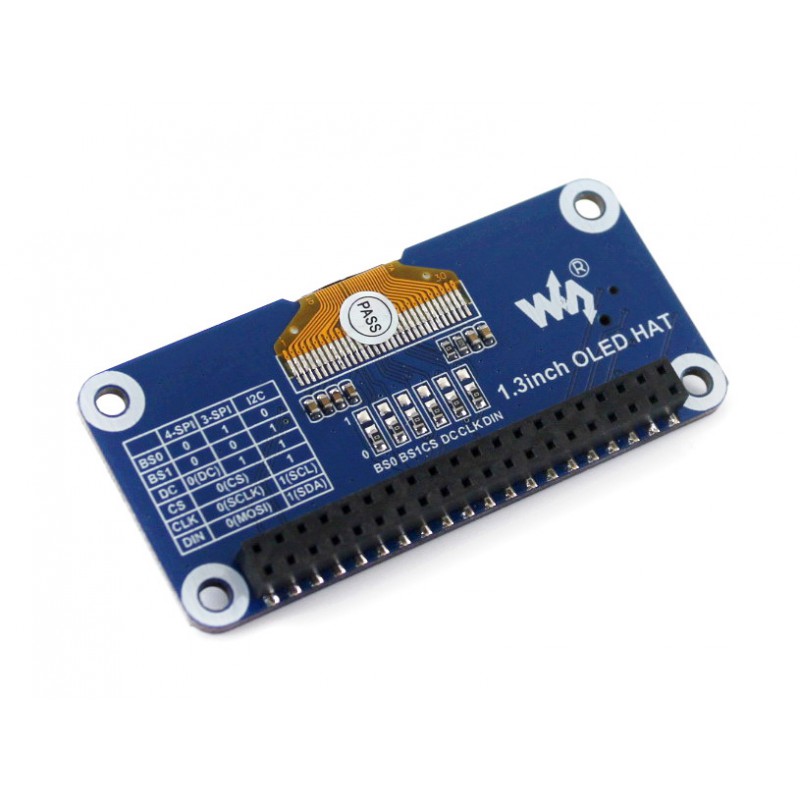

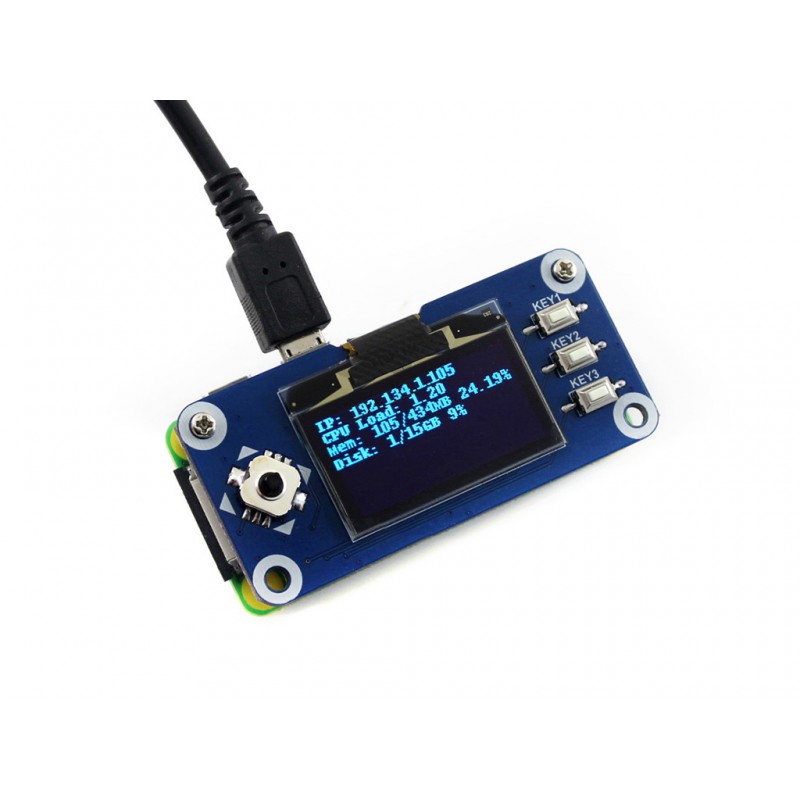

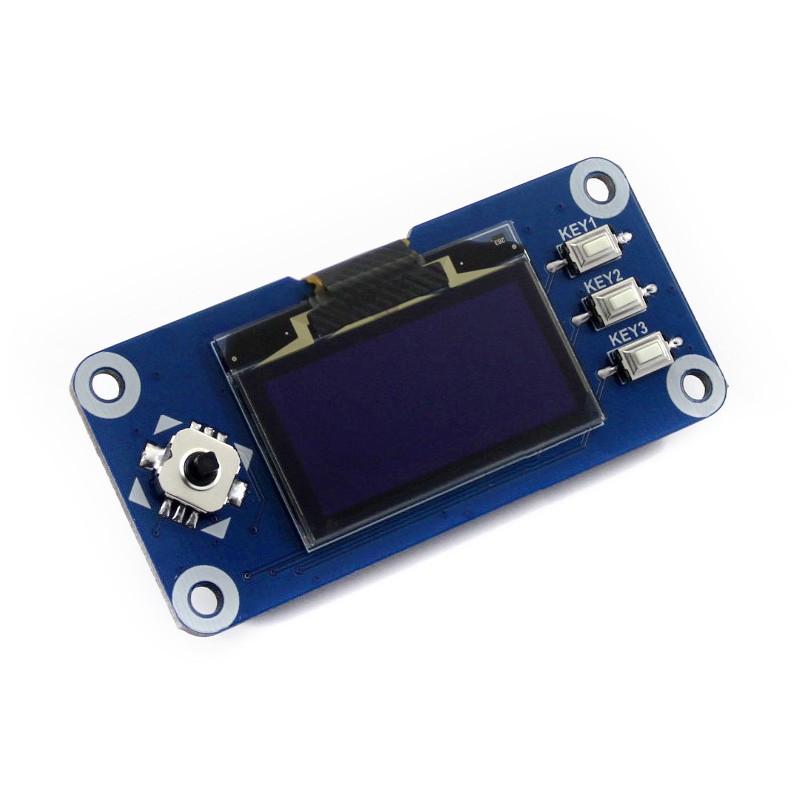

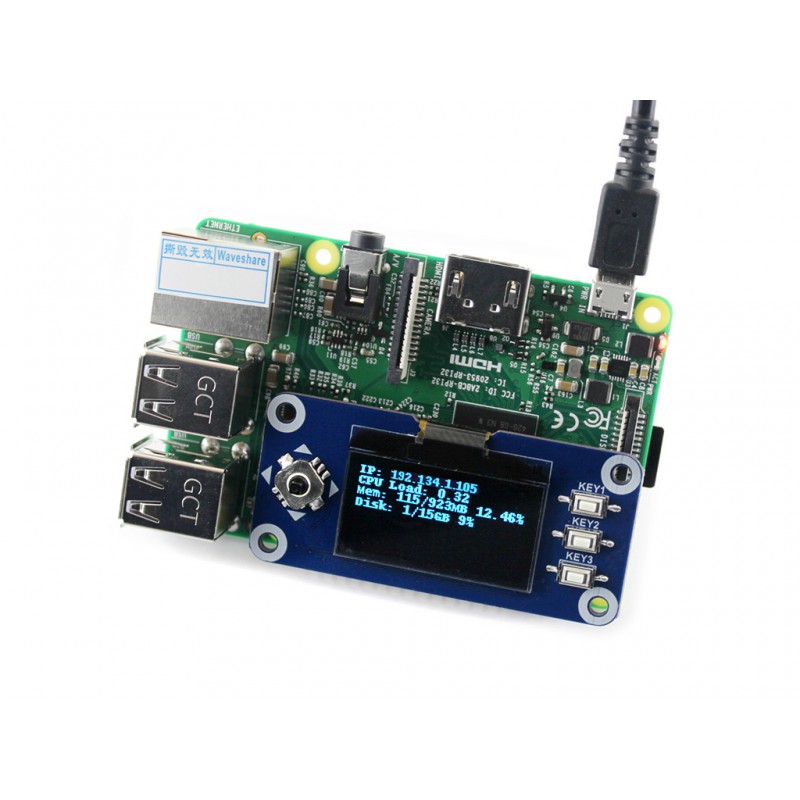

1.3 inch OLED display HAT for Raspberry Pi. SPI/I2C interface. This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor. 1x joystick (5-position), 3x pushbuttons, handy and useful. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano).
Specifications:
- Driver: SH1106
- Interface: 4-wire SPI, 3-wire SPI, I2C
- Display color: blue
- Resolution: 128x64
- Operating voltage: 3.3V
