Product description

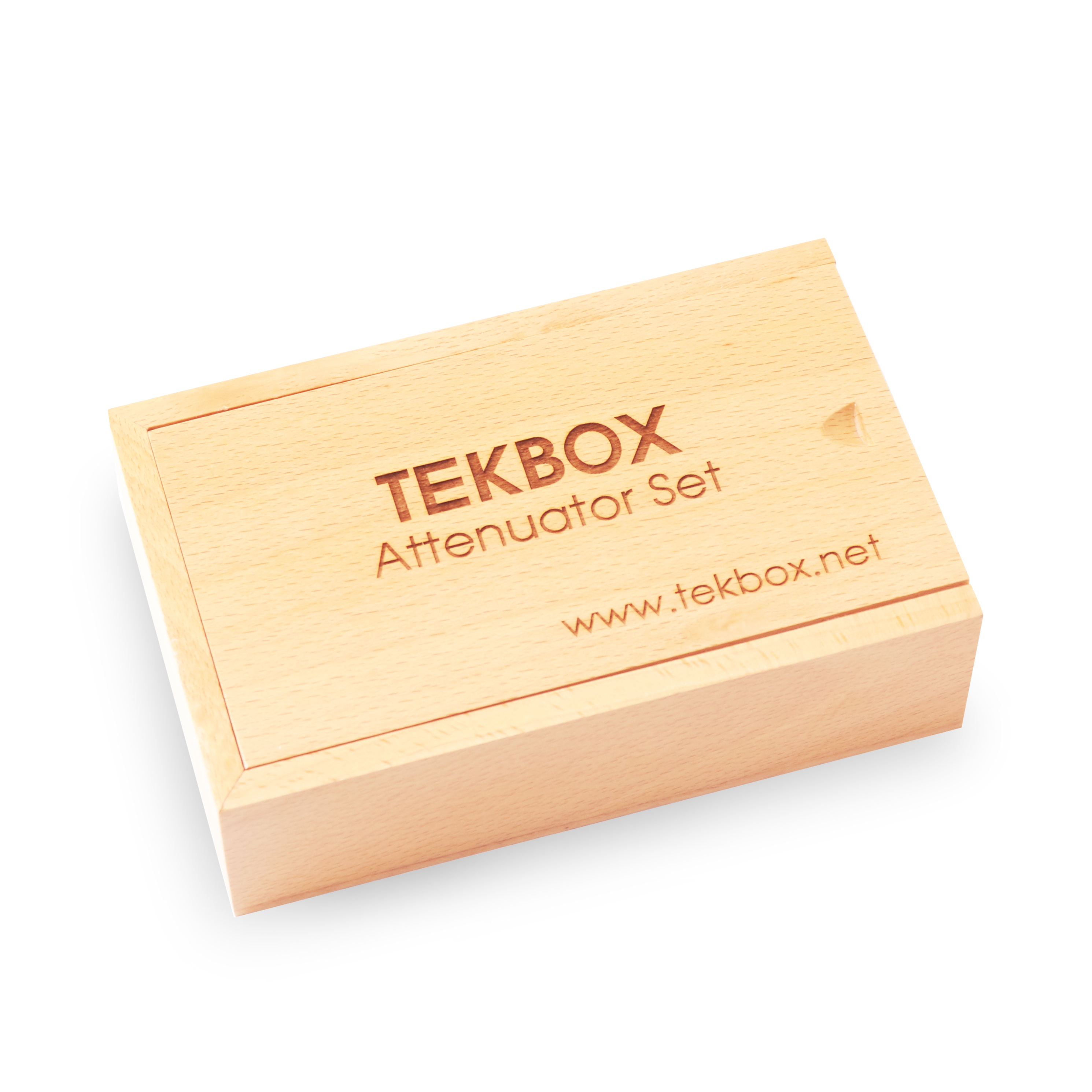

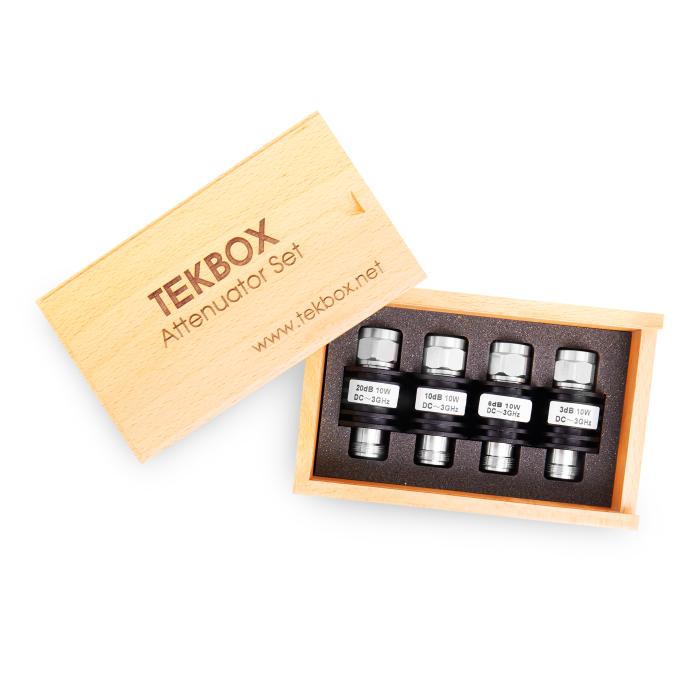

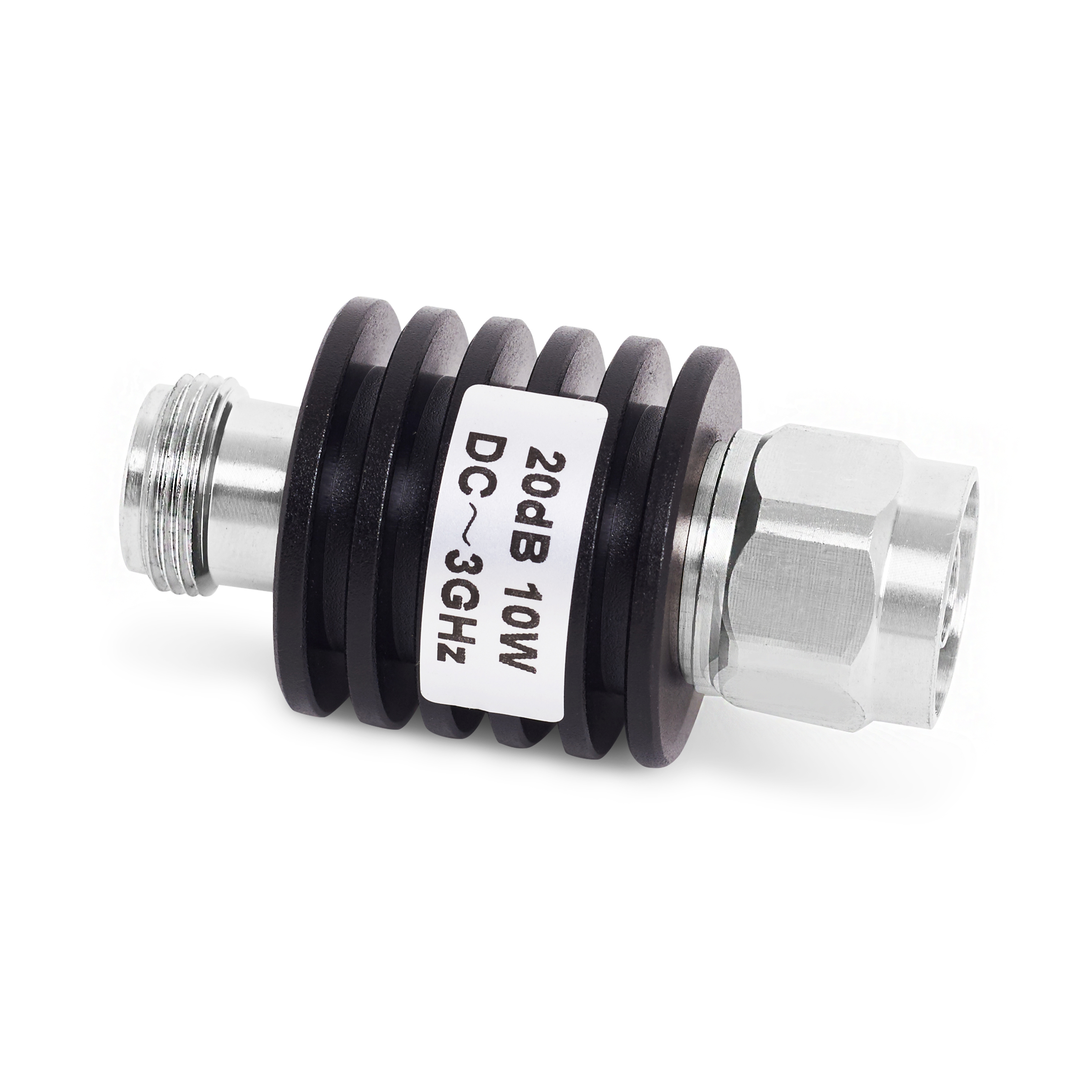

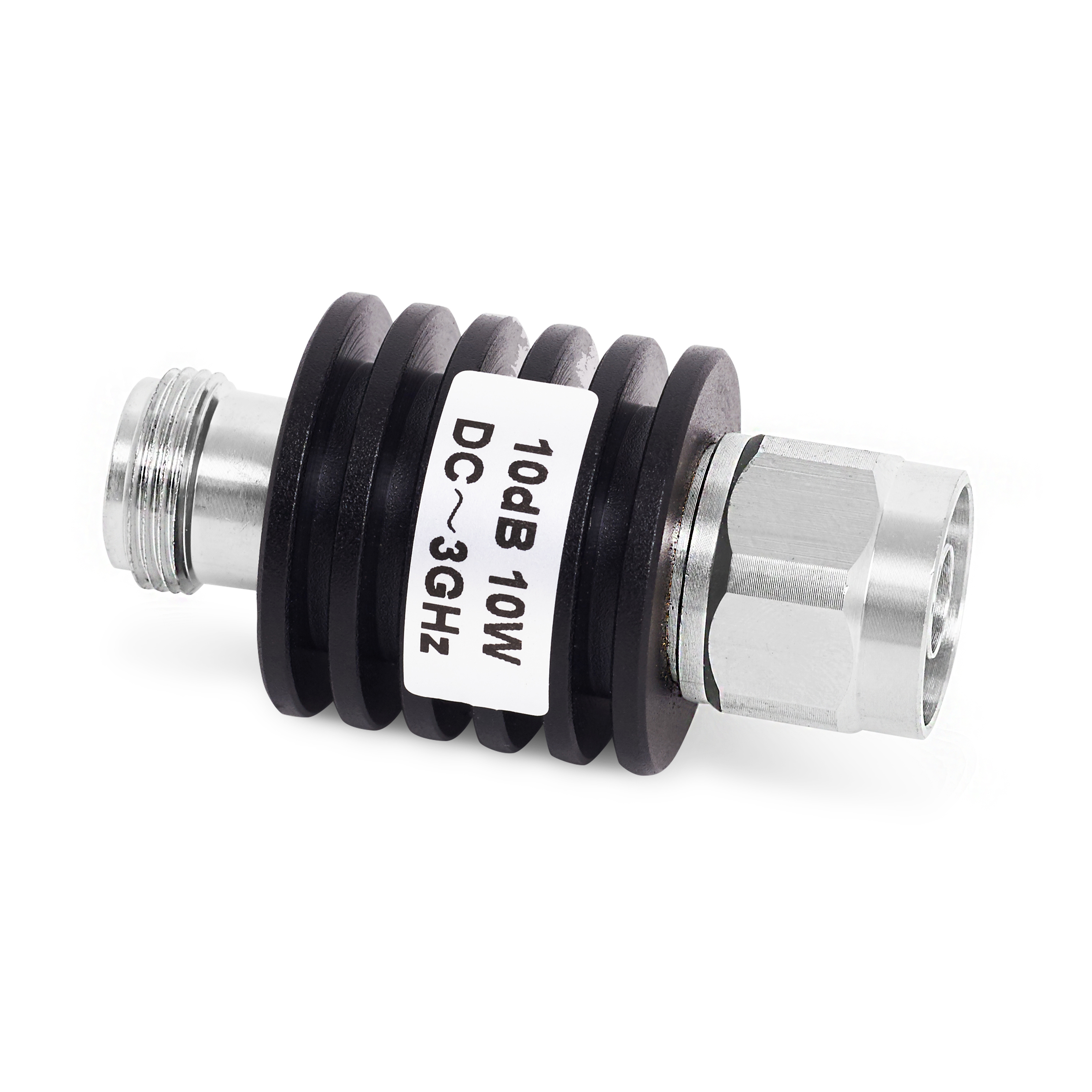

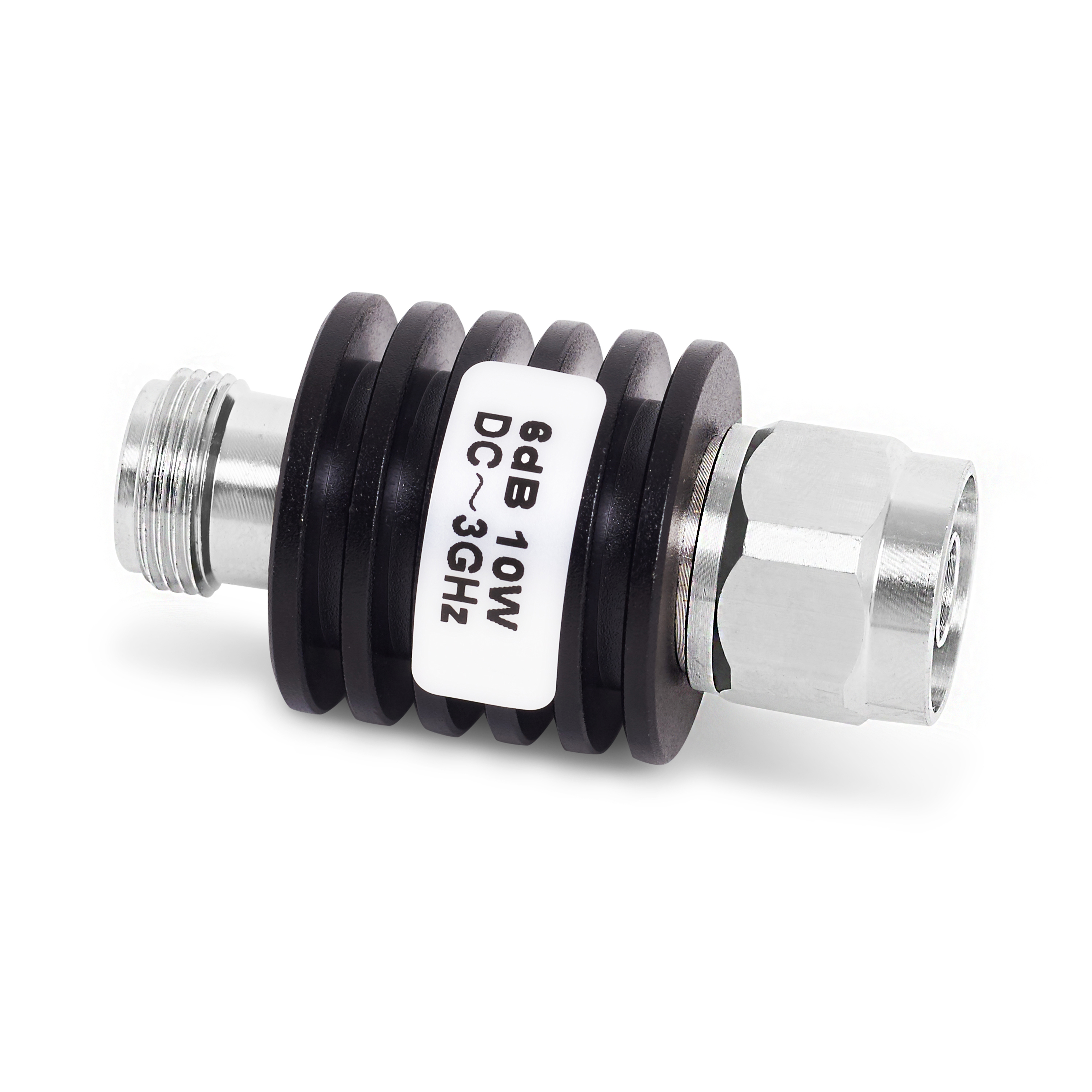

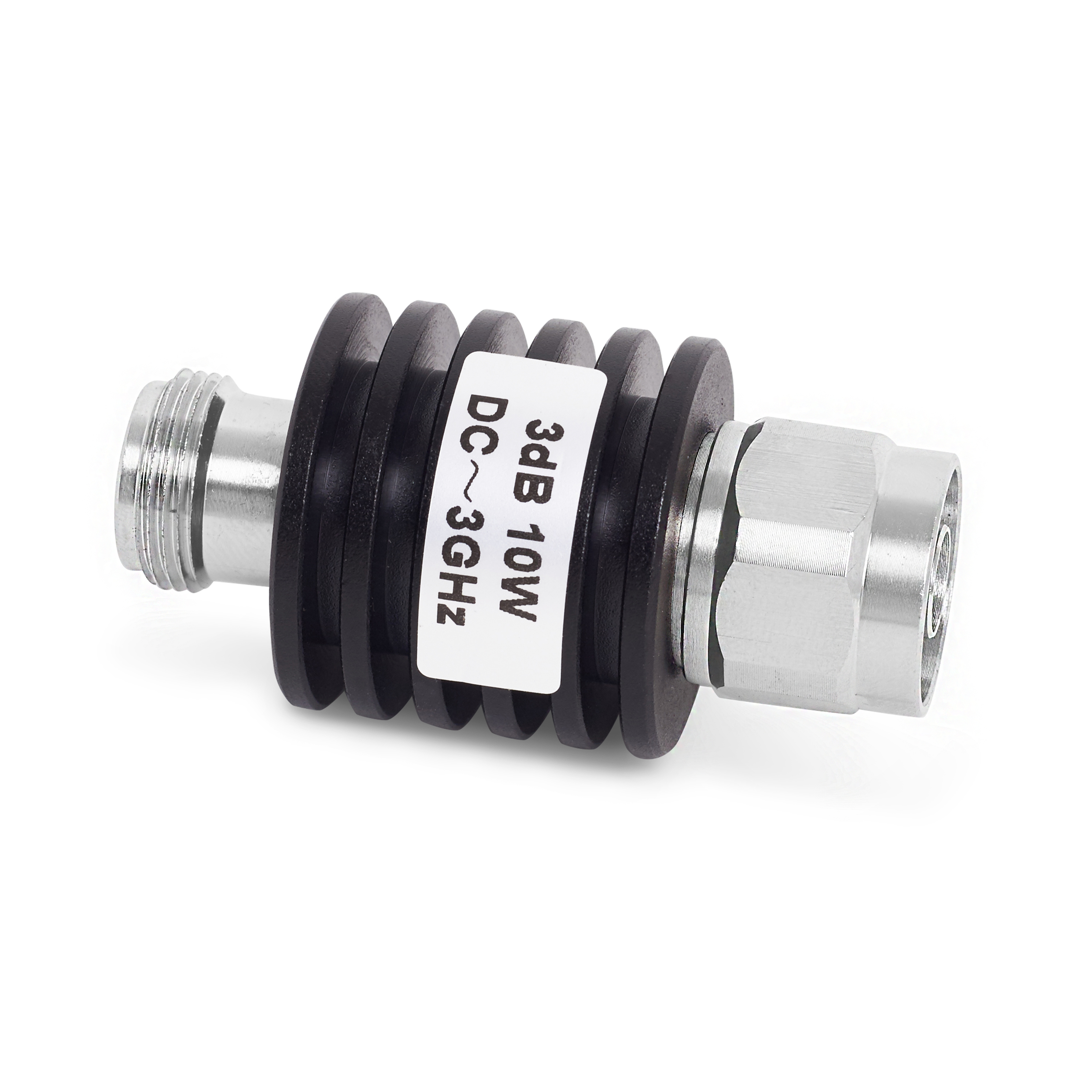

The TBAS3 RF attenuator set consists of a 3dB, 6dB, 10dB and 20dB attenuator in a beech wood box.
Specification
Tolerance: 3, 6, 10 dB +/- 0.5 dB / 20 dB +/- 0.8 dB Frequency range: DC-3GHz, VSWR < 1.2
Power rating: 10W @ -55 to 70°C; up to 125°C with 50% power de-rating
Connectors: N-male / N-female; bidirectional
Dimensions: 150mm x 95mm x 45mm
Weight: 505g
