Product description

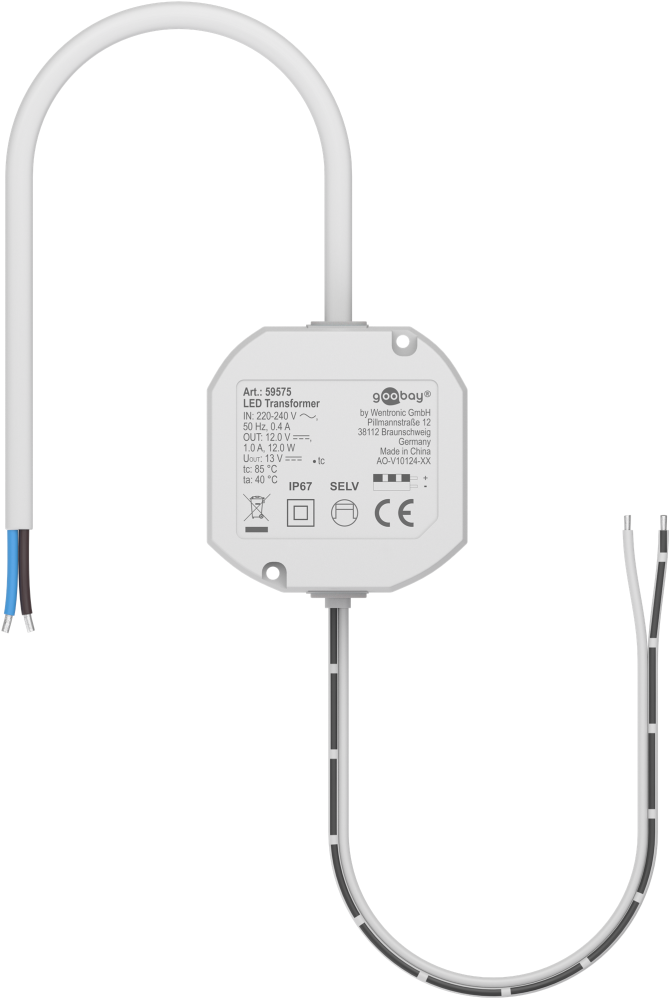

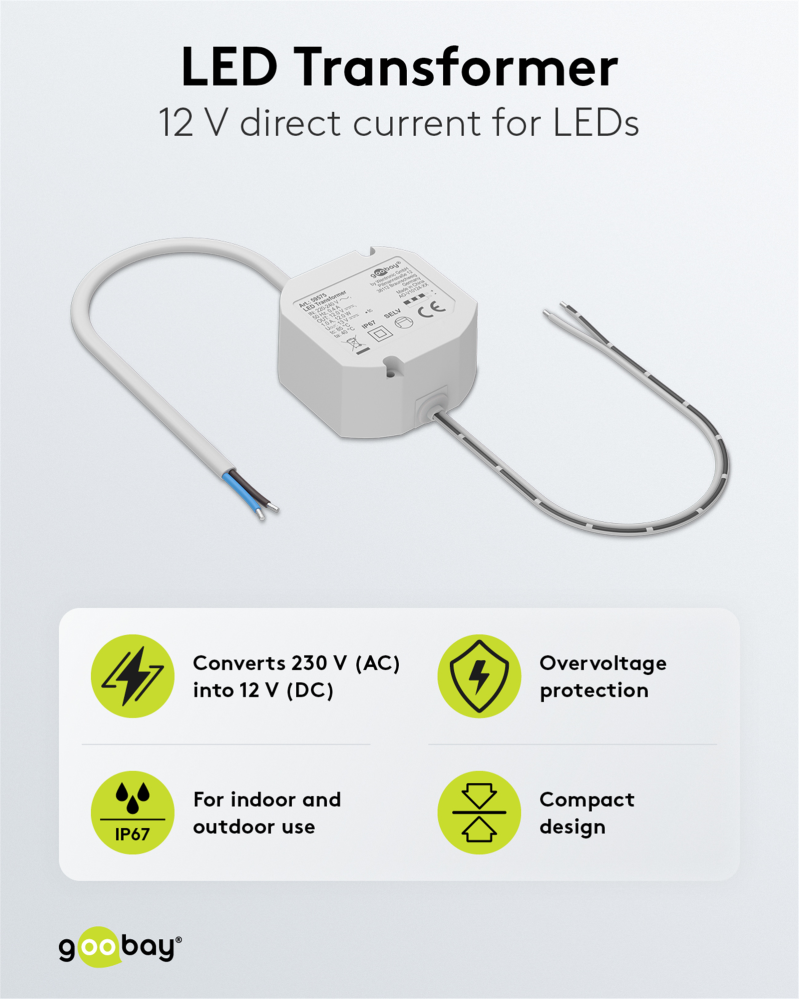

12V 12W LED power supply for low voltage LED lighting. Round compact and low profile (25 mm) LED transformer without minimum load. Used for connecting light sources such as LED strips, LED modules or LED light sources.
The LED driver is approved for installation in furniture and can be mounted discreetly, e.g. behind cabinets. Also for replacement of existing driver in luminaire. 2x fixed 0.2m open end cable.
Protected against short circuit and overload.
Specifications:
Type CC/CV: Constant voltage (CV)
Voltage: 12V (DC)
Power: 0-12W
Current: 1.0 A (max)
Minimum load: 0W

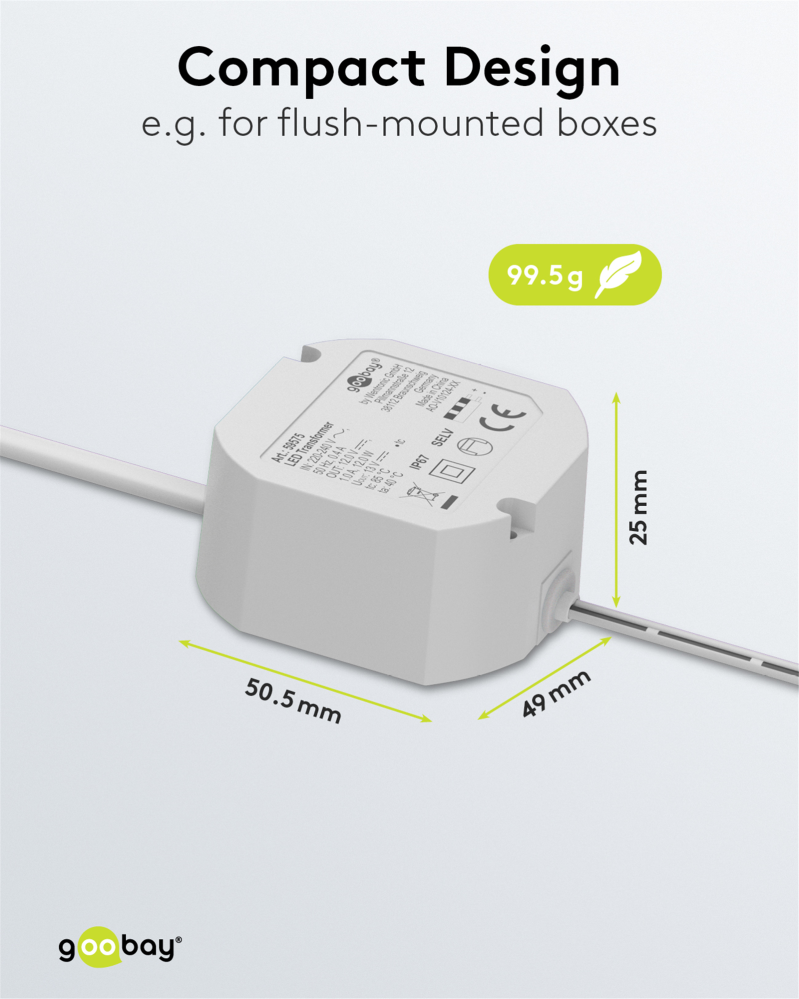

Dimensions: 49x25x50.5 mm
Weight: 99.5g
Inpud voltage range: 220-240V (AC)
Power in standby mode: 0.2W
Protection class: IP67
Dimmable: No
Input connection: 2x0.75 mm2, open end cable
Output connection: 2x0.75 mm2, open end cable
Markings: WEEE, CE
Operating temperature: -20 to 45 degrees C
